Mid to Late 14th Century Coat of Plates


Completed June 7, 2015

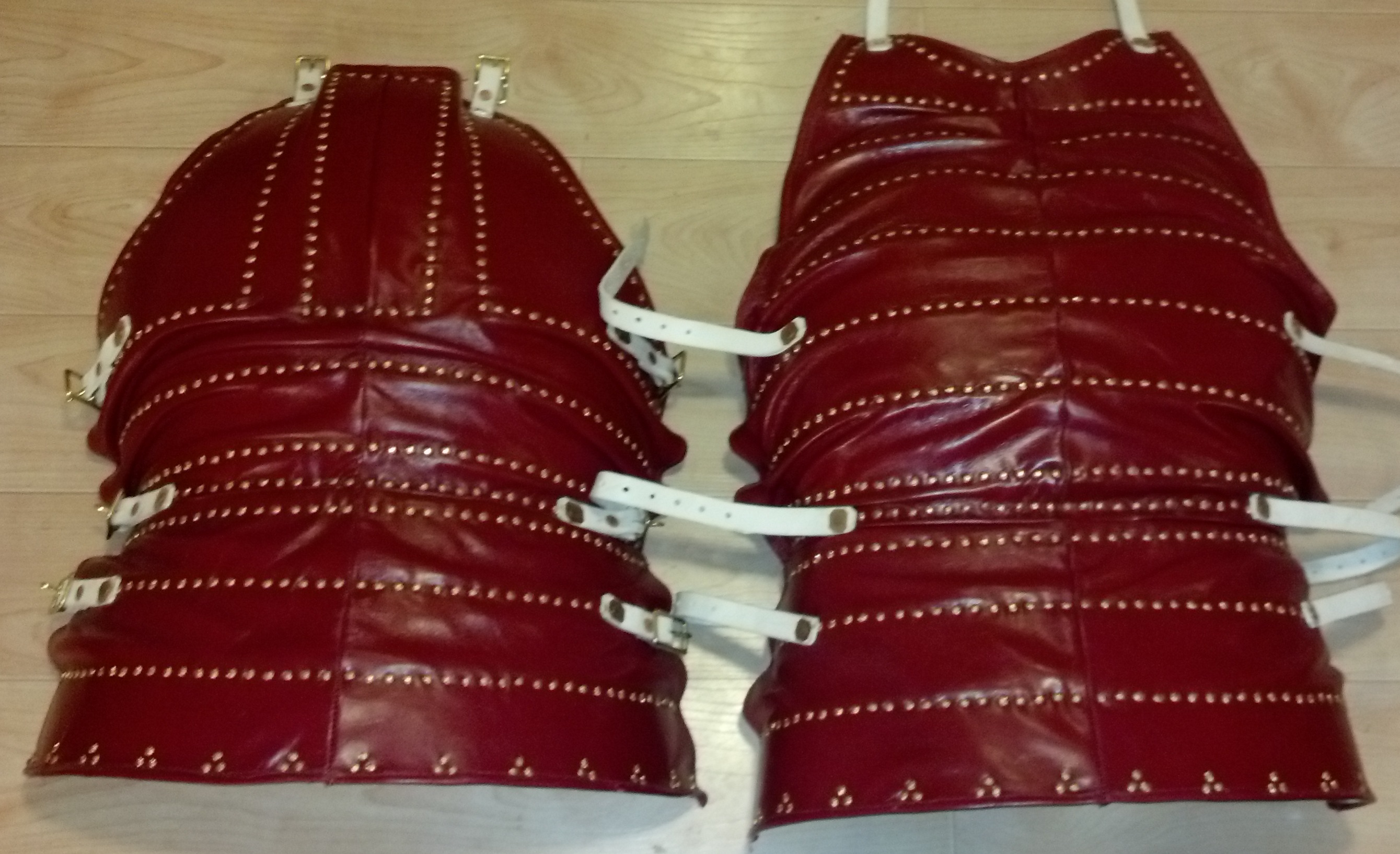

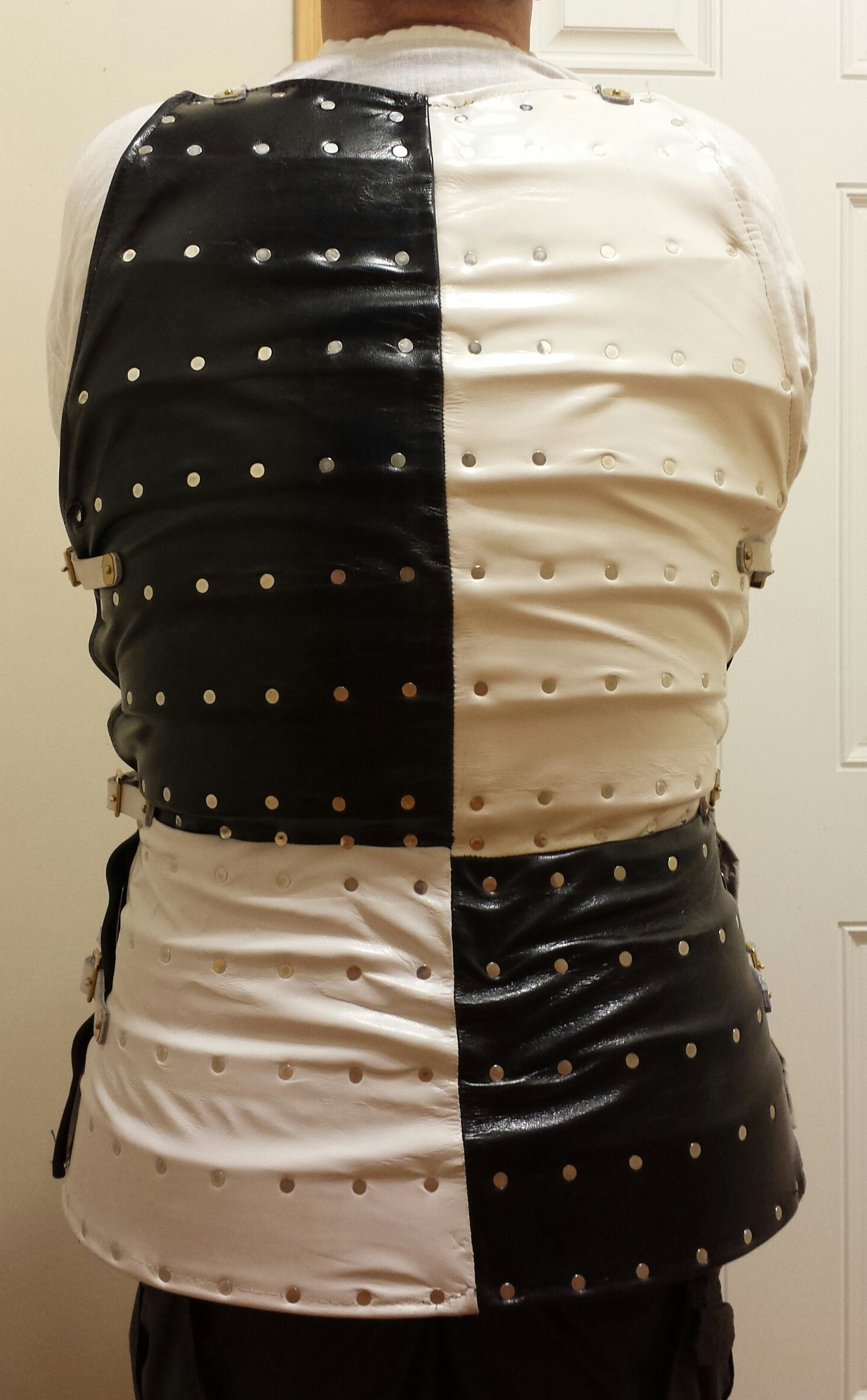

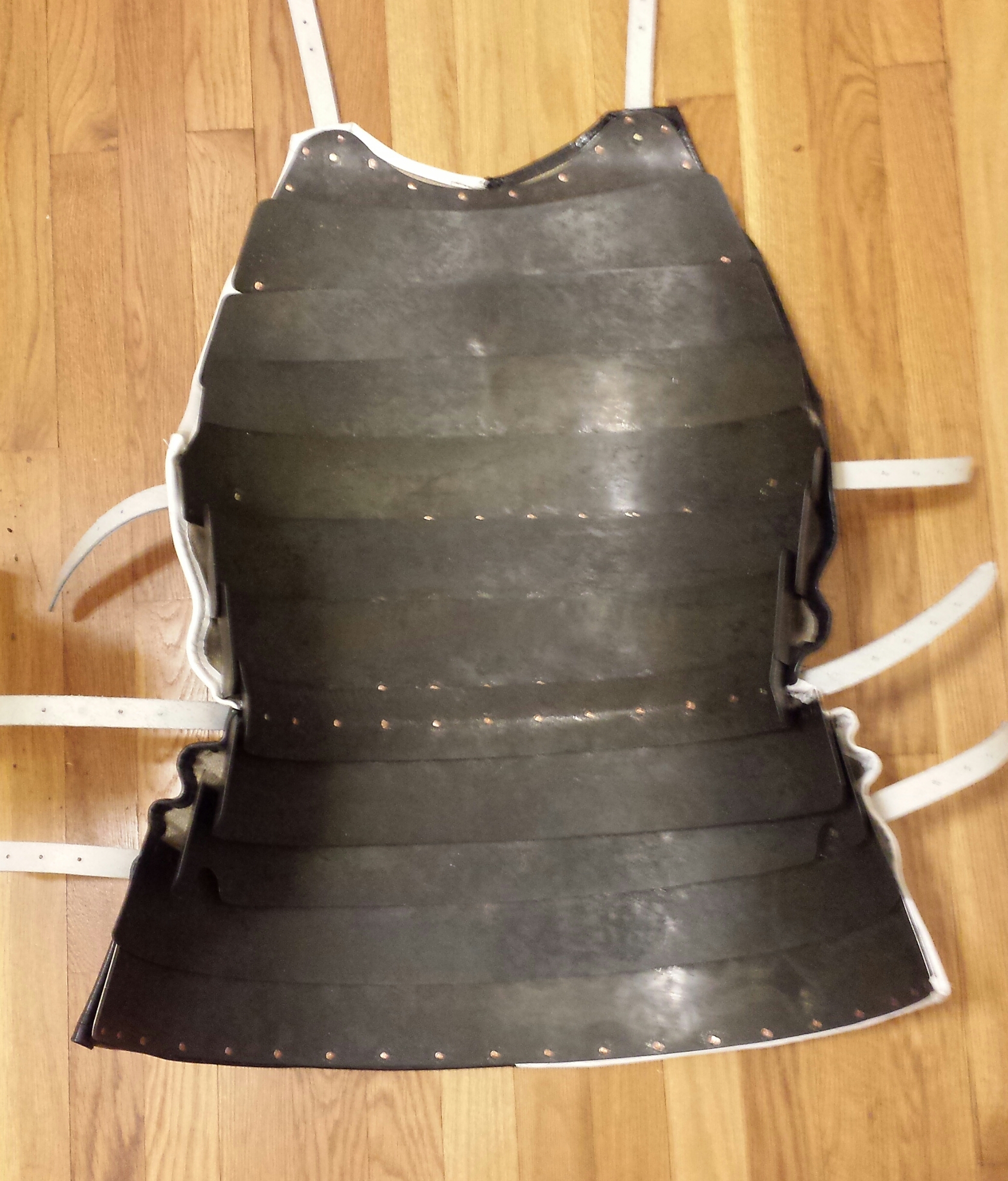

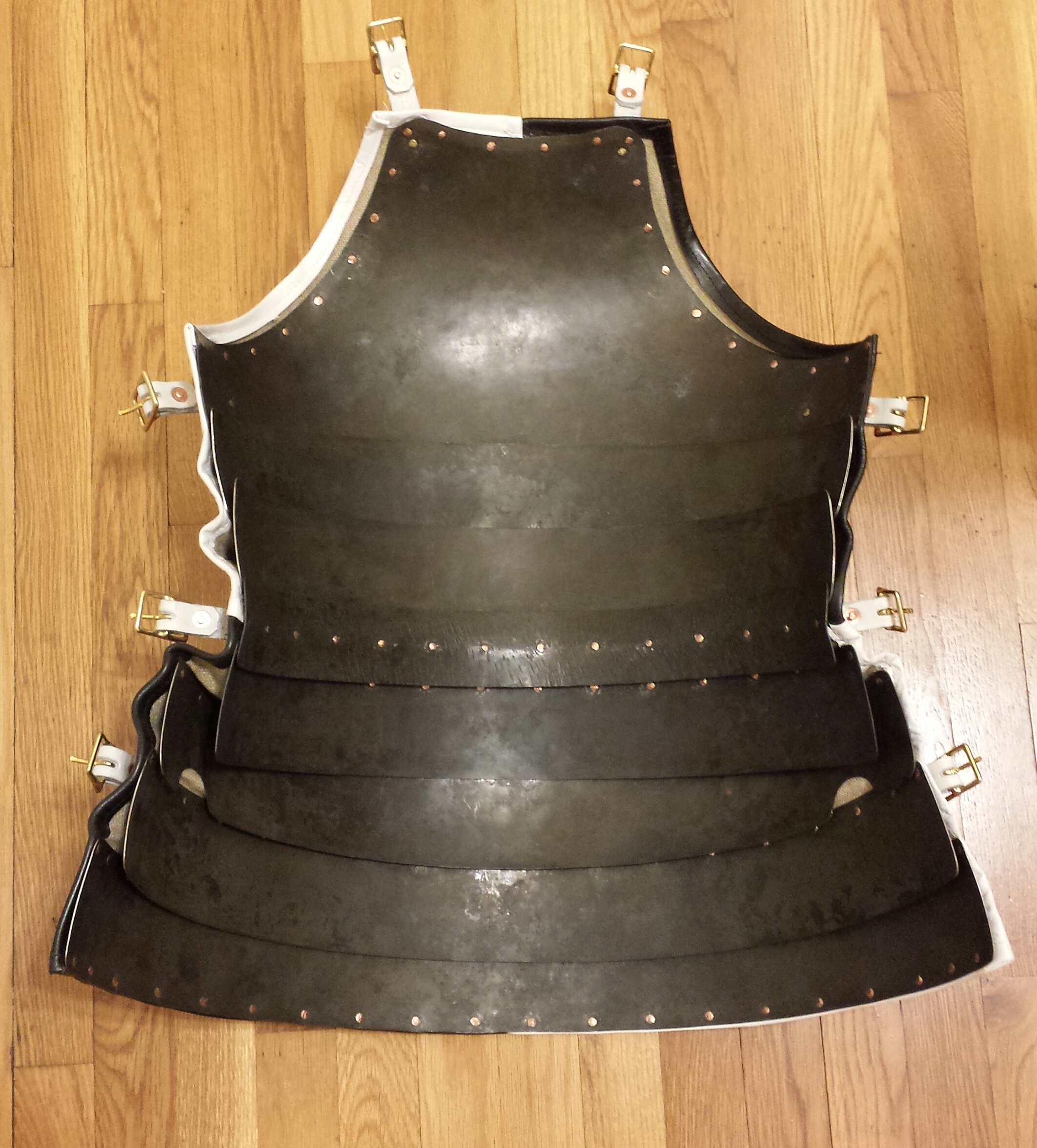

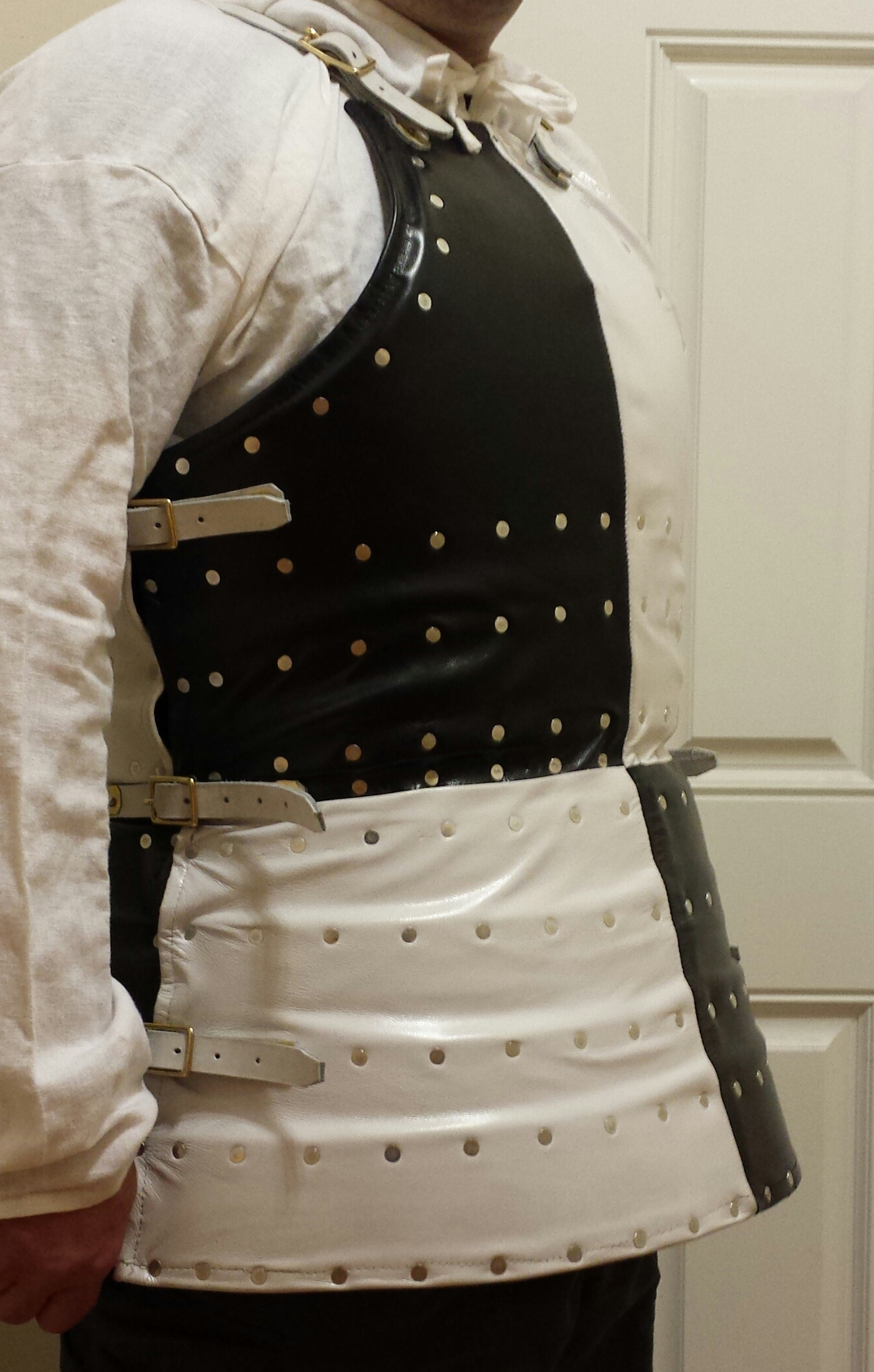

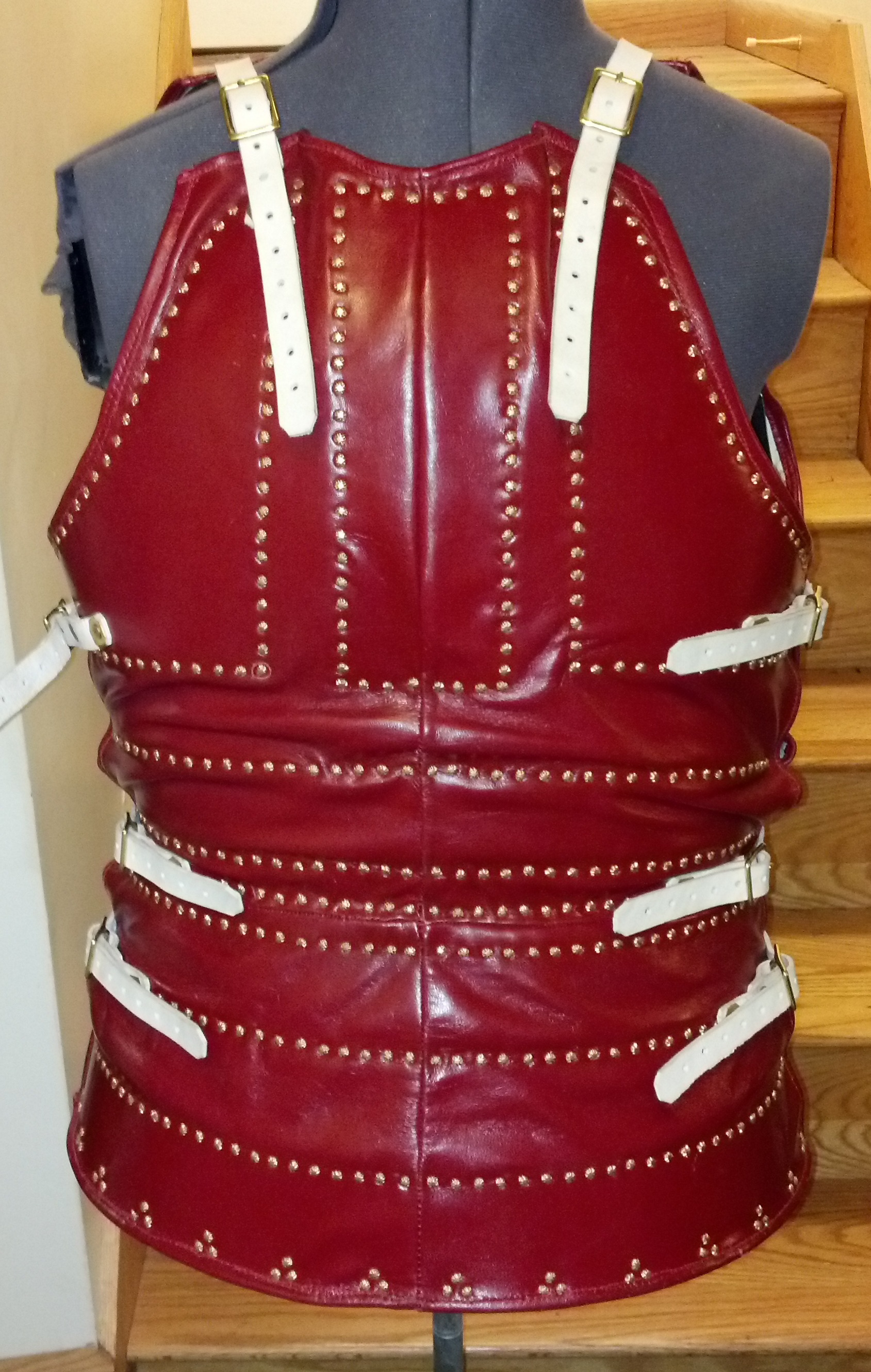

       The COP has a cover layer of 3-4oz goat skin over 18oz hemp canvas. Please note that weight of leather is by the square foot and fabric is by the square yard. The plates are made from three different thicknesses of 17-7ph Stainless steel. The back plates except for the two bottom ones are 0.040"/19ga/1.0mm, the upper chest plate is 0.025"/24ga/0.6mm, and the rest of the plates are 0.035"/20ga/0.9mm. All of the plates have been fully annealed at 1950F/1066C before being heat treated to a TH1100 condition which has a hardness around Rc36 and a 2% yield strength of 150ksi/1034Mpa.

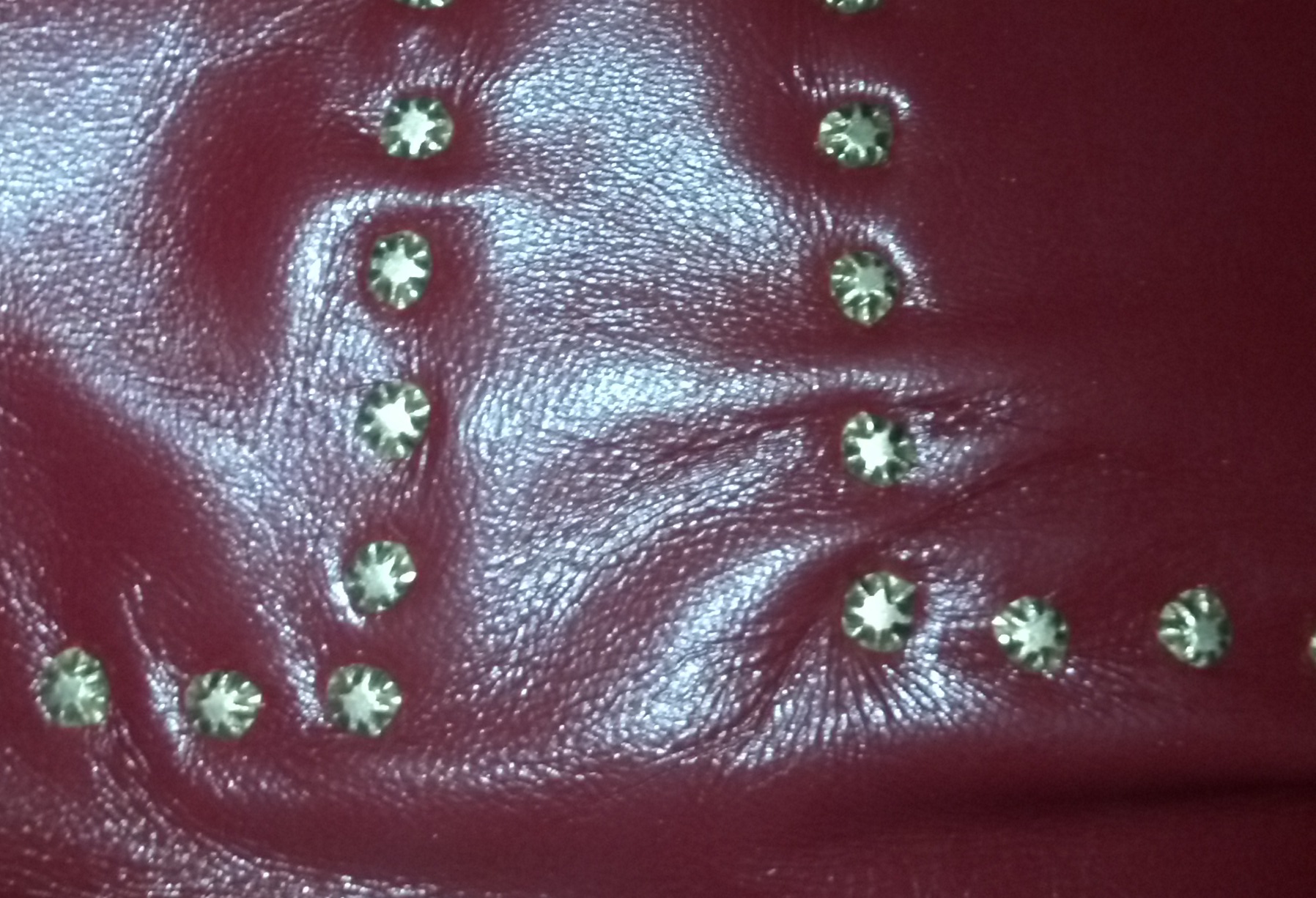

       The holes in the plate pattern are designed for 12 guage copper roofing nails. I had the nails tin eletrode plates for corosion resistance.

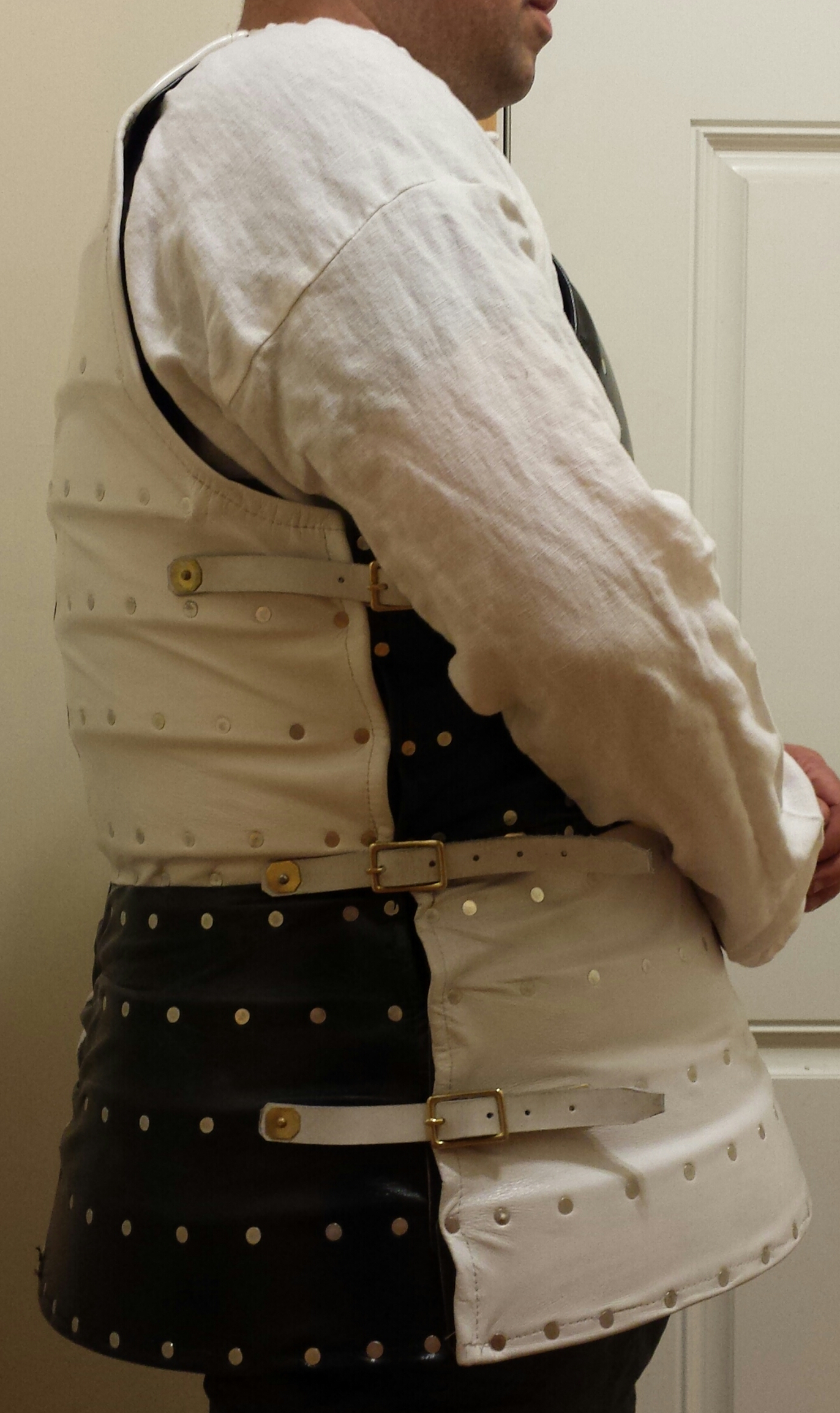

       The suit is sized for someone between who's height is 5'10"/178cm to 6'2'/188cm and who's weight is 220pounds/100Kg to 240pounds/109kg.








Latest Patterns as of June 7, 2015

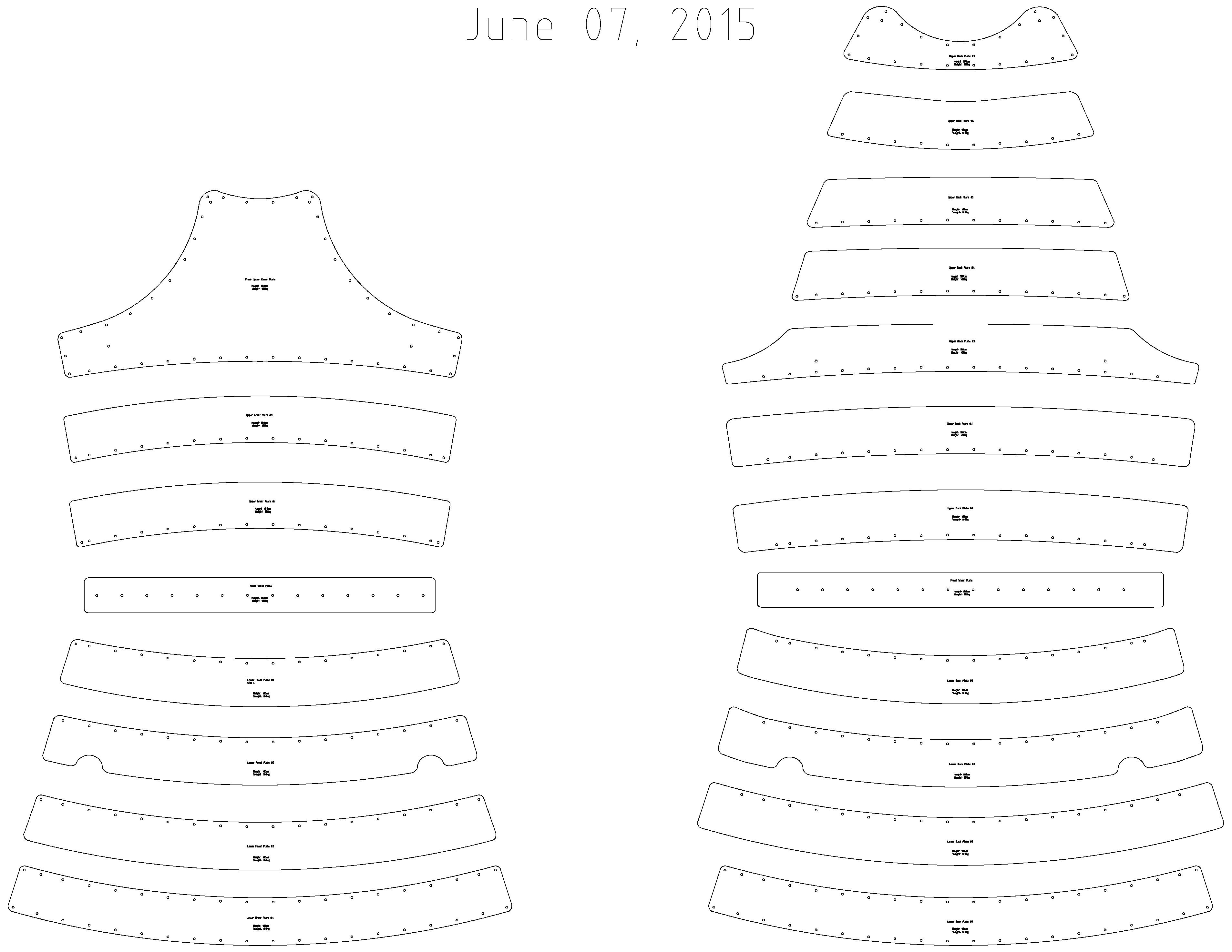

CAD DXF file of the patterns for the plates. You can use this file to machine cut the metal plates.

Sized for a Male who's height is 5'10"/178cm to 6'2'/188cm and who's weight is 220pounds/100Kg to 240pounds/109kg.with a height of 5'10" / 178cm and weight of 200 pounds / 91kg.
COP_JUNE_07_2015_Plates_180cm_100kg.dxf

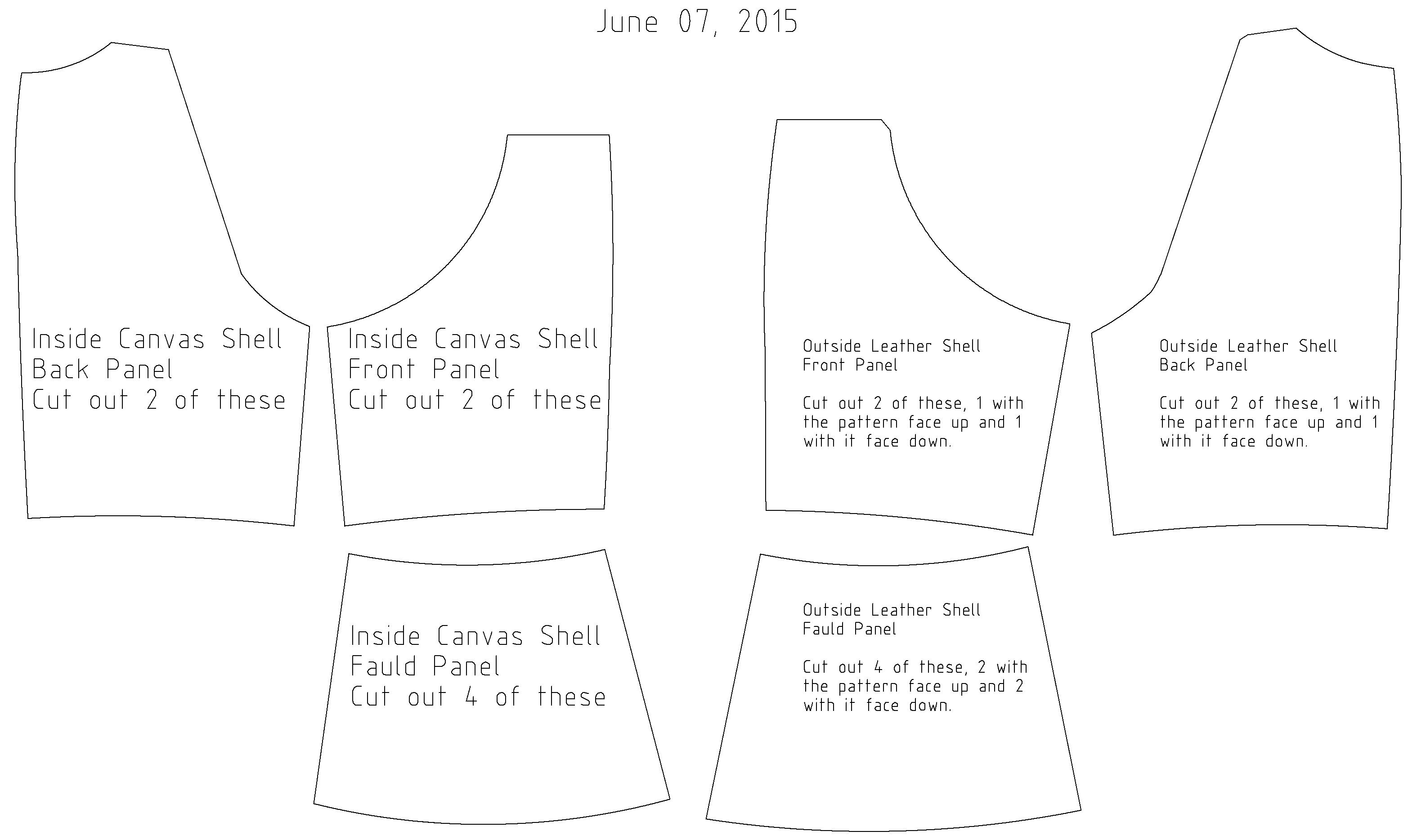

CAD DXF file of the patterns for the leather and fabric shell panels. You can use this file to machine cut templates for the panels.

Sized for a Male who's height is 5'10"/178cm to 6'2'/188cm and who's weight is 220pounds/100Kg to 240pounds/109kg.with a height of 5'10" / 178cm and weight of 200 pounds / 91kg.
COP_JUNE_07_2015_Shell_Templates_180cm_100kg.dxf




CAD DXF file of the patterns for the leather straps. You can use this file to machine cut templates for the leather straps if you want to.
COP_JUNE_07_2015_leather_straps.dxf

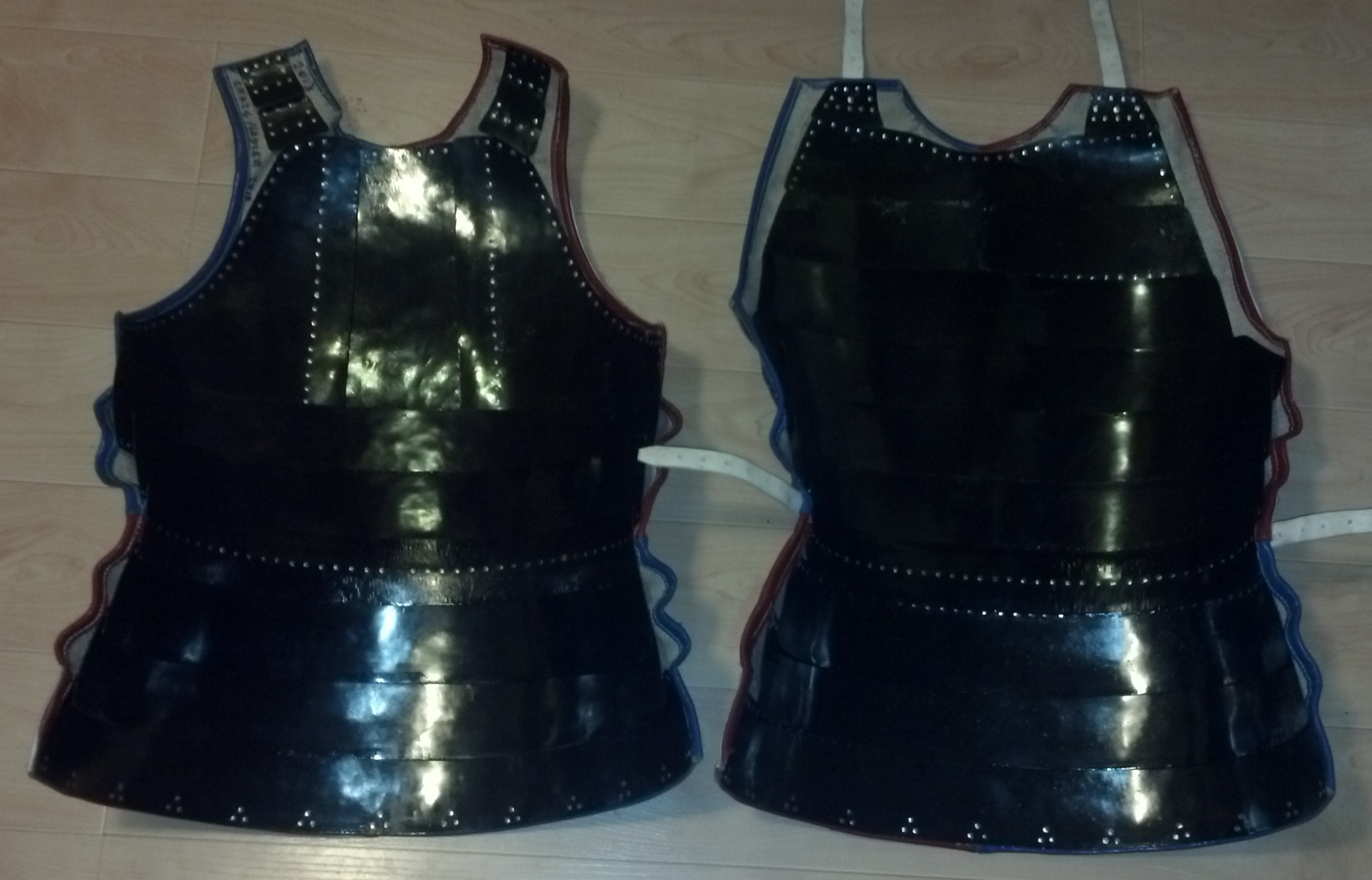

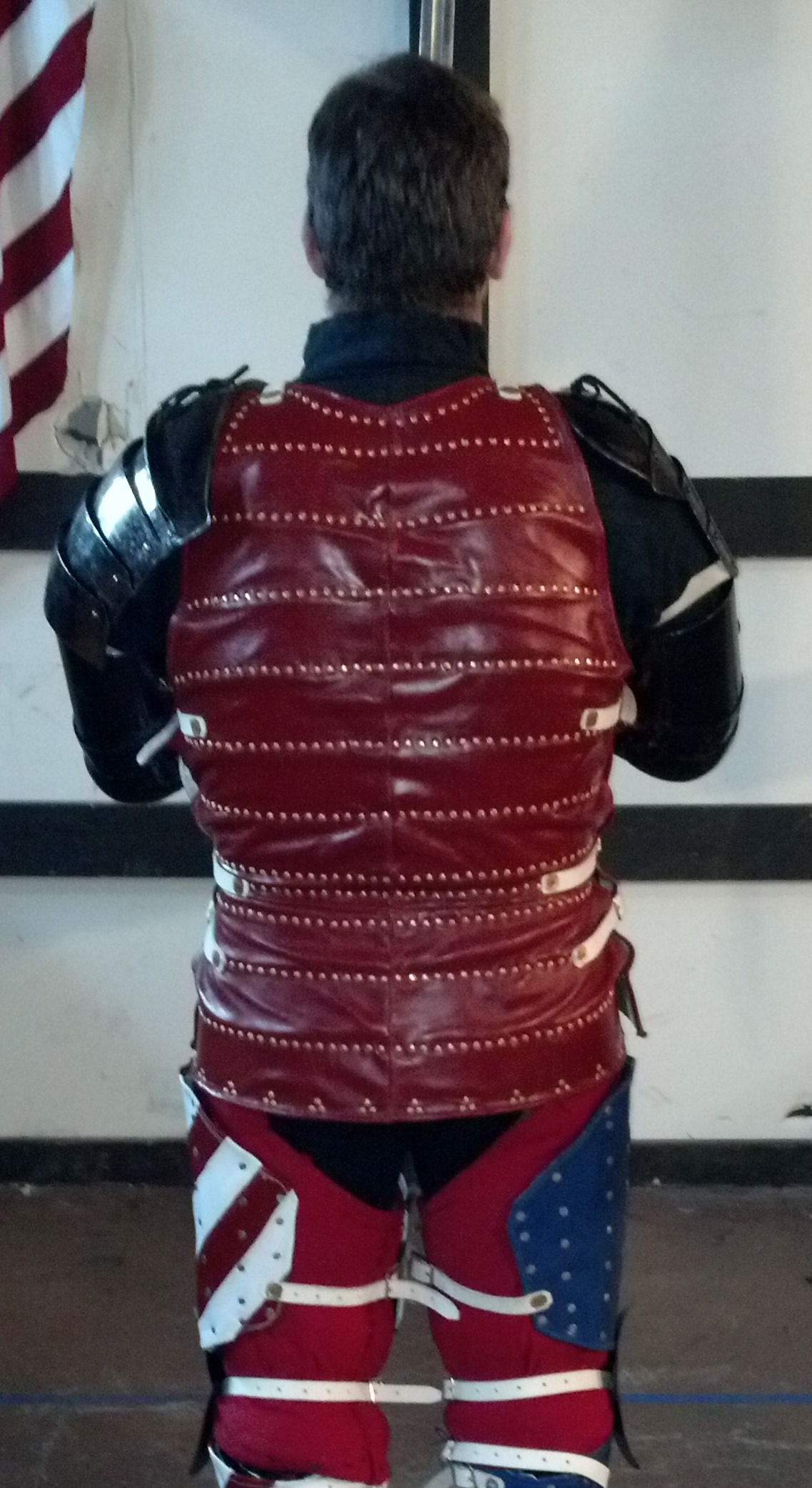

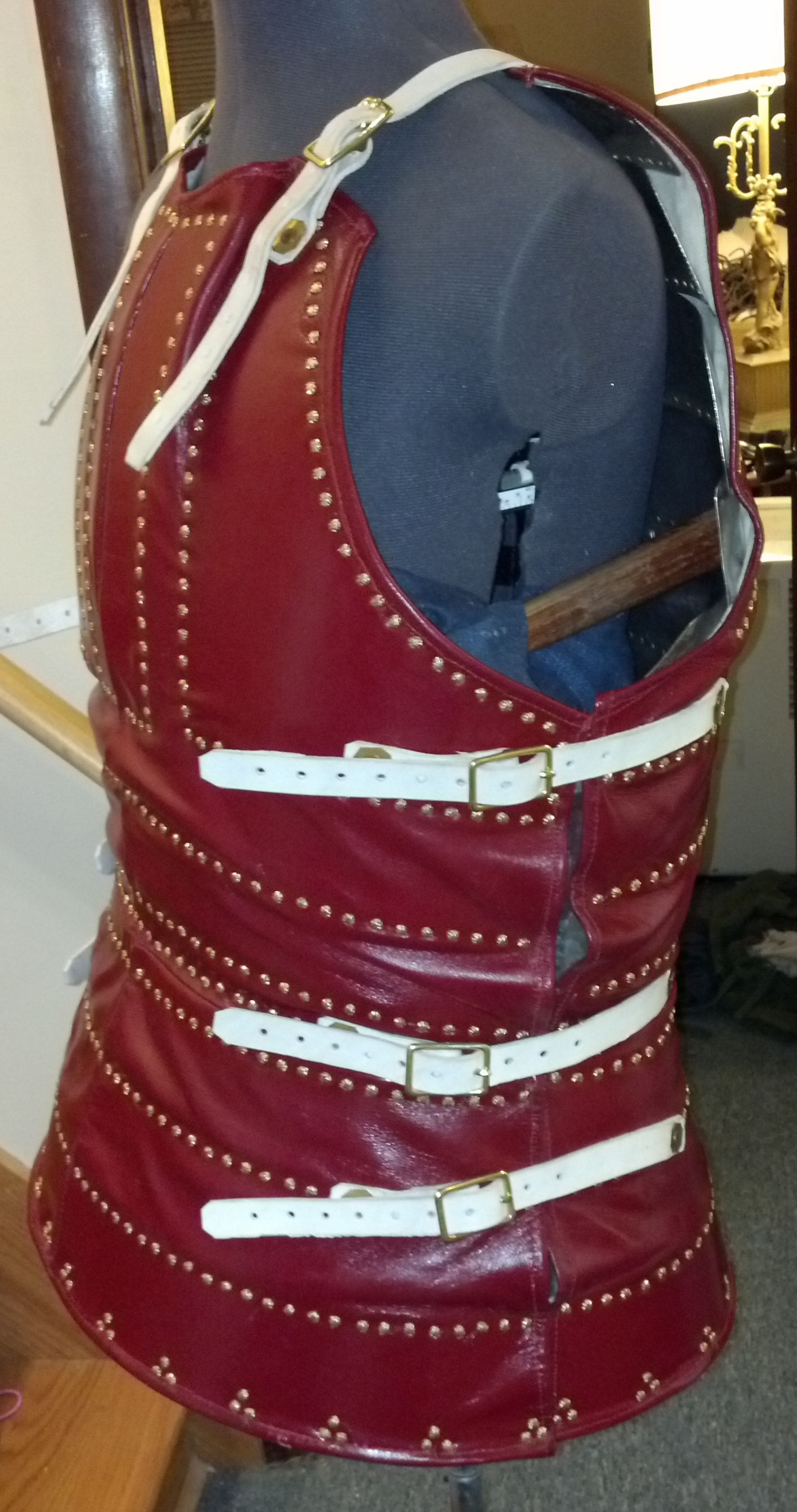

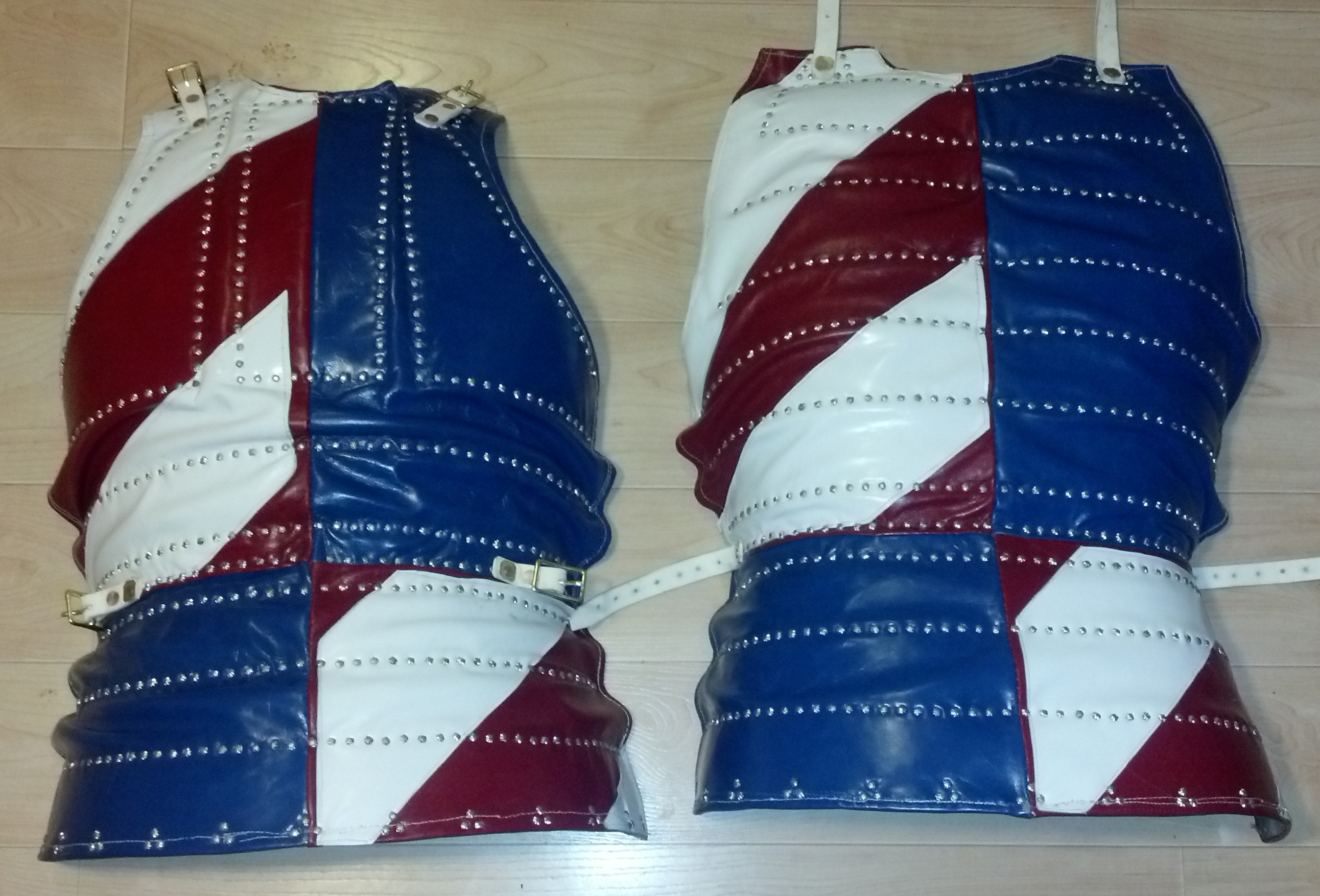

Completed Jan. 28, 2013

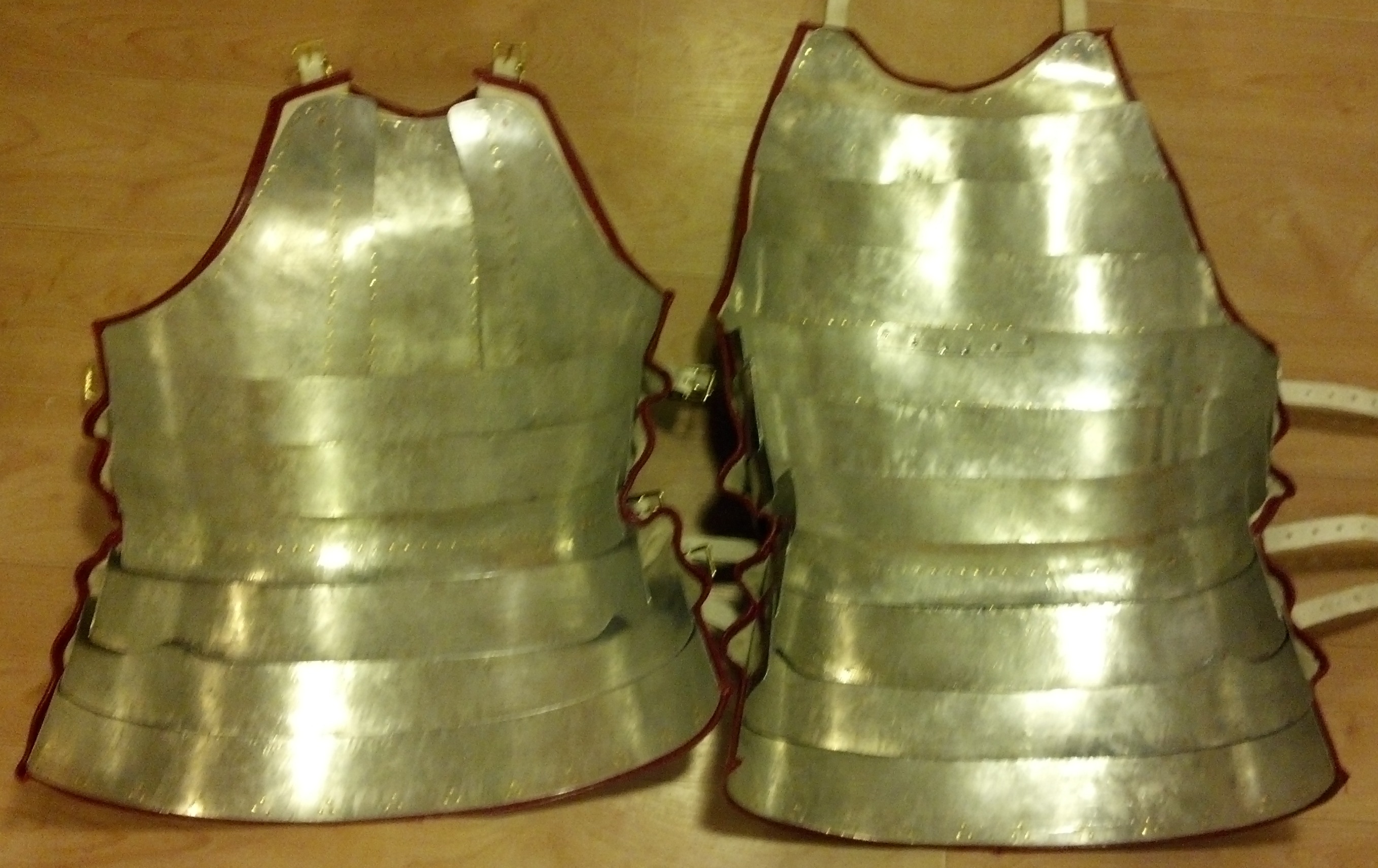

       The COP has a cover layer of 3-4oz goat skin over 14oz hemp twill. Please note that weight of leather is by the square foot and fabric is by the square yard. The plates are made from 0.035"/20ga/0.9mm 1050 Spring Steel which was been heated to 1600F/871C and quenched in water, and tempered for 30 minutes at 650F/343C. The plates have been tinned at 650F/343C to prevent rust. From what I've seen the plates should resist denting as if they were 0.072"/15ga/1.8mm Mild Steel.
       The holes in the plate pattern are designed for 10 gauge cut or 12 guage wire nails. I do NOT recommend using stainless steel nails. If you have to recover the armour they will be too difficult to remove.
       The suit is sized for someone between who's height is 5'10"/178cm and who's weight is 200lbs./100Kg.






Latest Patterns as of March 11, 2013

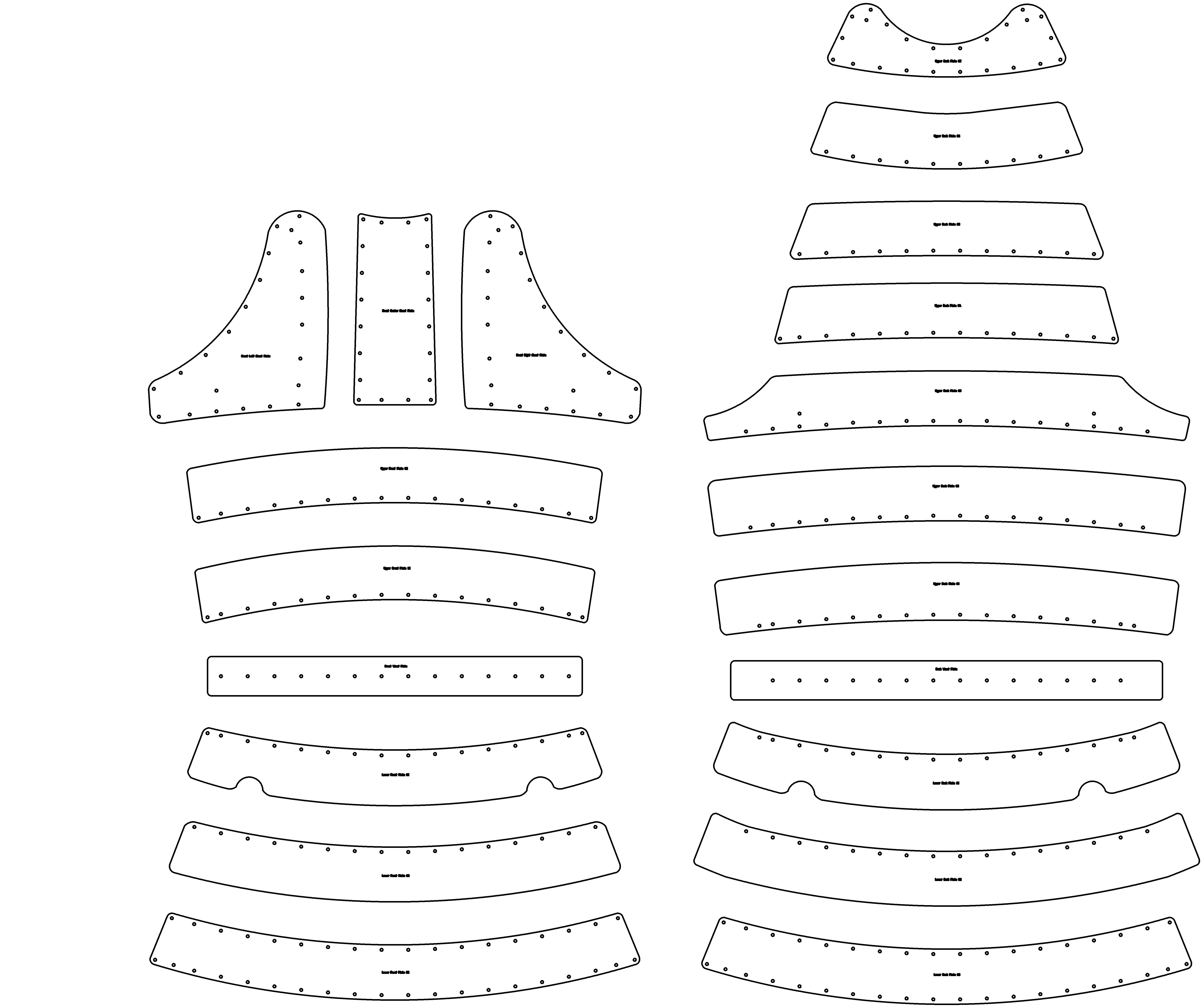

CAD DXF file of the patterns for the plates. You can use this file to machine cut the metal plates.

Sized for a Male with a height of 5'10" / 178cm and weight of 200 pounds / 91kg.
COP_NOV_23_2014_Plates_178cm_92kg.dxf

Sized for a Male with a height of 6'1" / 185cm and weight of 255 pounds / 116kg.
COP_NOV_23_2014_Plates_185cm_116kg.dxf

Sized for a Male with a height of 6'5" / 196cm and weight of 260 pounds / 118kg.
COP_NOV_23_2014_Plates_196cm_118kg.dxf




CAD DXF file of the patterns for the leather and fabric shell panels. You can use this file to machine cut templates for the panels.

Sized for a Male with a height of 5'10" / 178cm and weight of 200 pounds / 91kg.
COP_JAN_31_2013_Shell_Templates_178cm_92kg.dxf

Sized for a Male with a height of 6'1" / 185cm and weight of 255 pounds / 116kg.
COP_JAN_31_2013_Shell_Templates_185cm_116kg.dxf

Sized for a Male with a height of 6'5" / 196cm and weight of 260 pounds / 118kg.
COP_JAN_31_2013_Shell_Templates_196cm_118kg.dxf






Completed Jan. 09, 2013

       The COP has a cover layer of 3-4oz goat skin over 16oz hemp twill. Please note that weight of leather is by the square foot and fabric is by the square yard. The plates are made from 0.035"/20ga/0.9mm 1050 Spring Steel which was been heated to 1600F/871C and quenched in water, tempered for 30 minutes at 650F/343C, and had a number of coats of linseed oil burned/baked on at 600F/315F. From what I've seen the plates should resist denting as if they were 0.072"/15ga/1.8mm Mild Steel.
       The suit is sized for someone between who's height is 5'10"/178cm and who's weight is 200lbs./100Kg.






Documentation


Name: Otto von Orlamunde A
Dating: 1340
Location: Kloster Himmelkron, Himmelkron, Bavaria, Germany

Name: Rezzo von Bachlingen
Dating: 1350
Location: Bachlingen Church, Bachlingen, Baden-Wurttemberg, Germany

Name: Rudolf von Hurnheim
Dating: 1355
Location: Convent Church of Zimmern, Bavaria, Germany

Manuscript: BL Royal 17 E VII La Bible historiale completee
Folio: 111
Dating: 1357
From: Paris, France
Holding Institution: Bodleian Library
URL: BL Royal 17 E VII La Bible historiale completee (Folio 111)

Name: Wilhelm von Bopfingen
Dating: 1359
Location: Bopfingen Church, Evangelische Pfarrkirche, Wurtemburg, Bavaria, Germany

Manuscript: Bib. Ste. Genevieve MS.777 Decades
Folio: 119v
Dating: 1370
From: Paris, France
Holding Institution: Bibliotheque Sainte-Genevieve
URL: Bib. Ste. Genevieve MS.777 Decades (Folio 119v)

Manuscript: Bib. Ste. Genevieve MS.777 Decades
Folio: 033v-dtl
Dating: 1370
From: Paris, France
Holding Institution: Bibliotheque Sainte-Genevieve
URL: Bib. Ste. Genevieve MS.777 Decades (Folio 033v-dtl)
