Splint Legs


Finished January 25, 2018

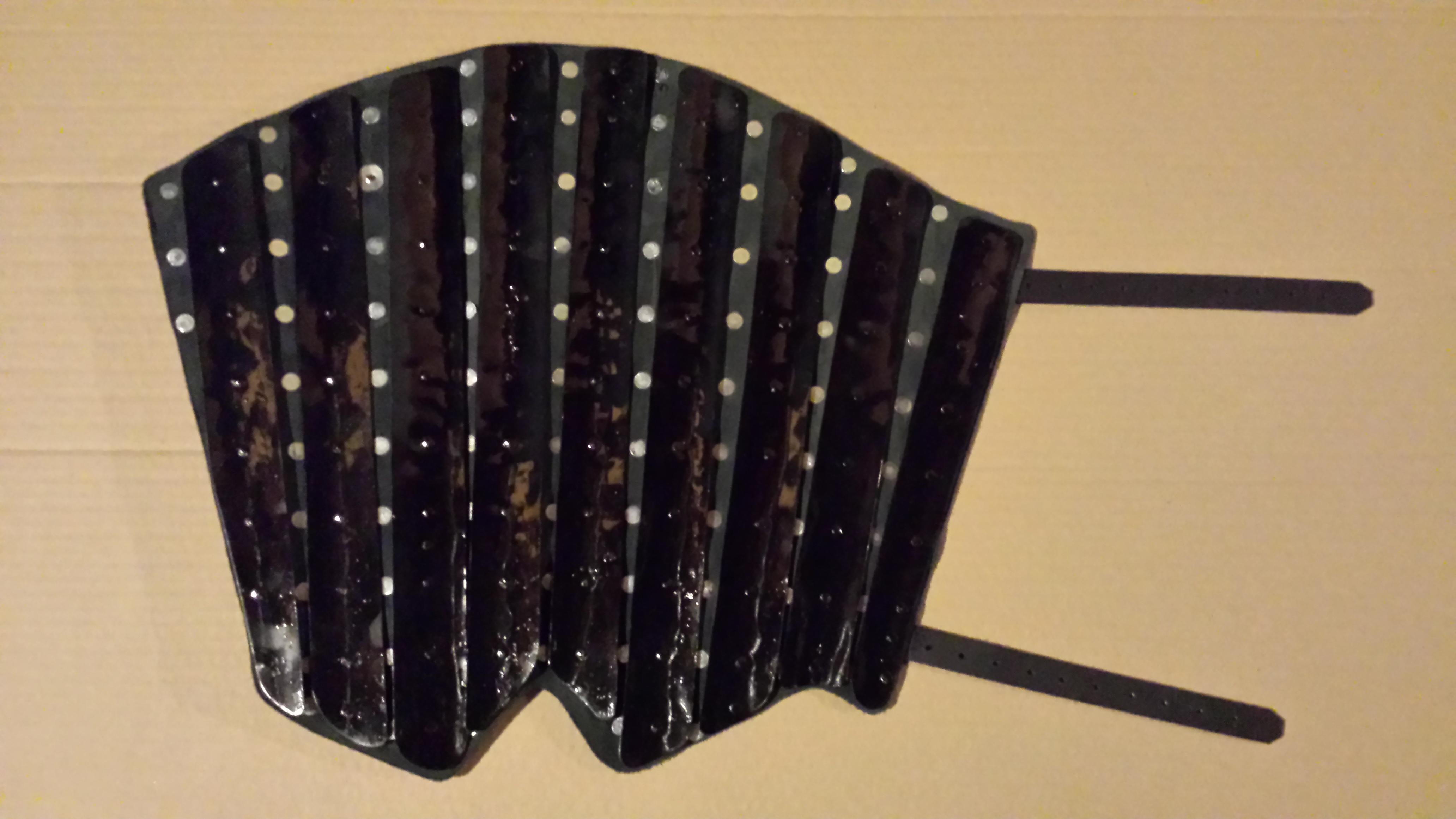

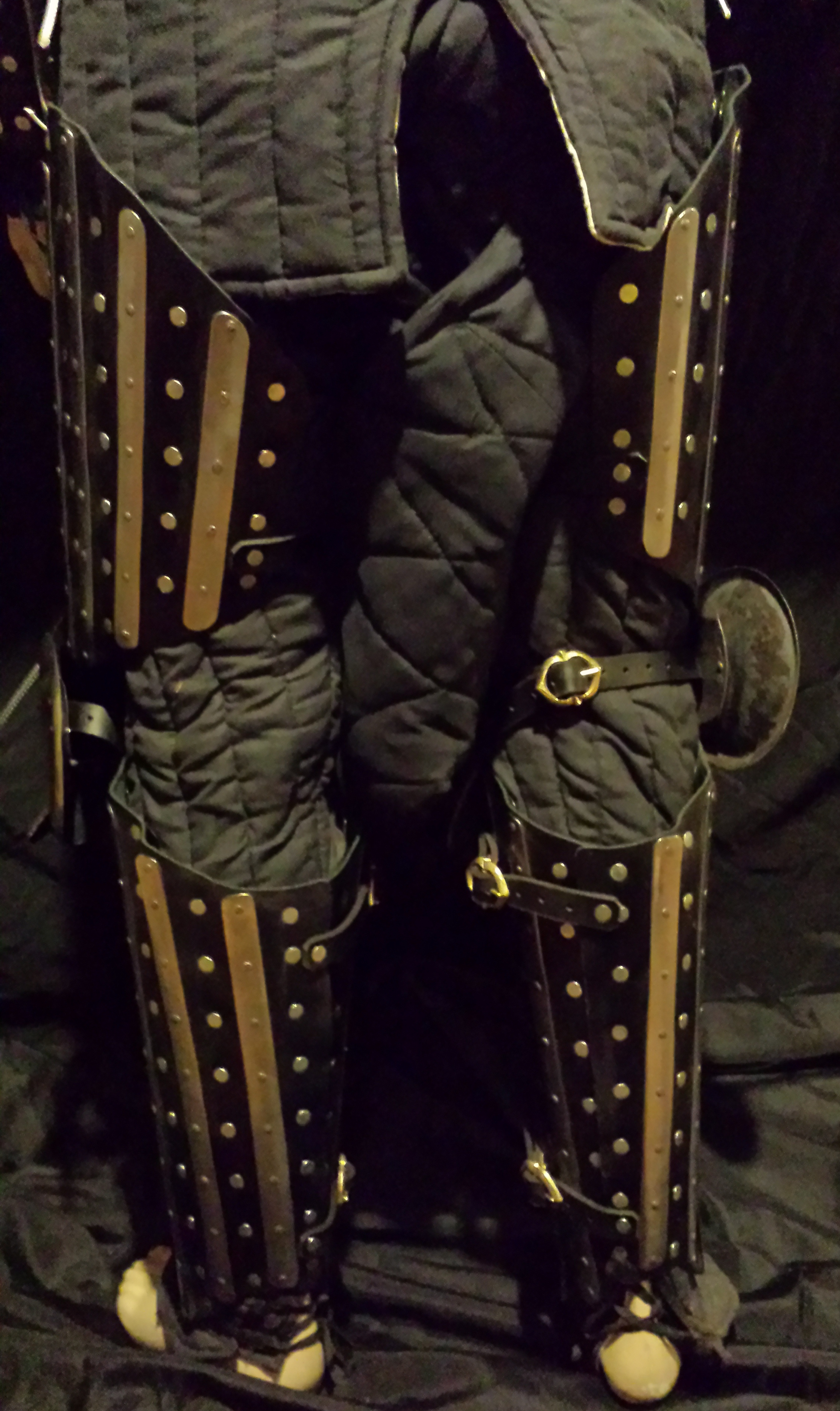

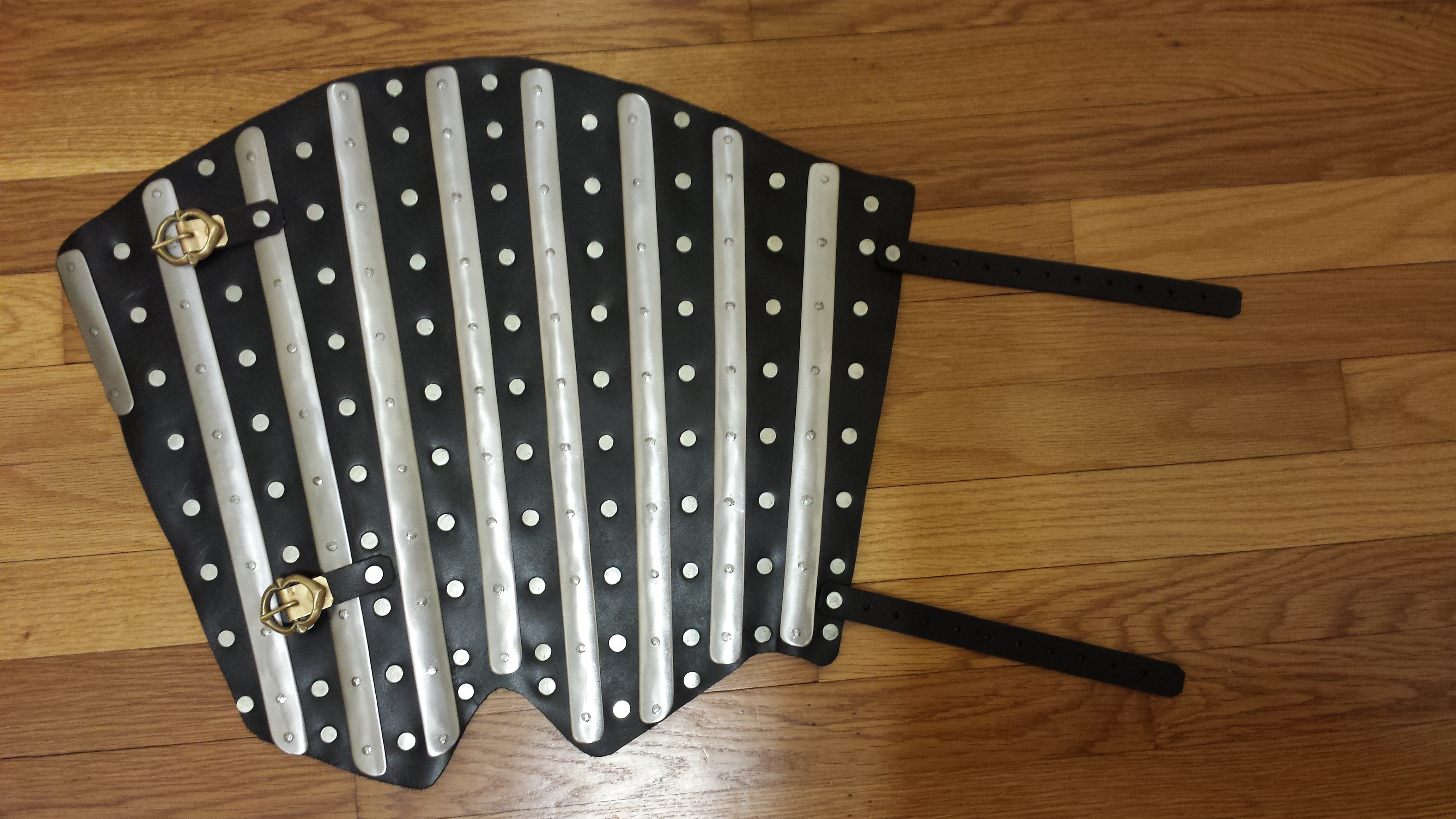

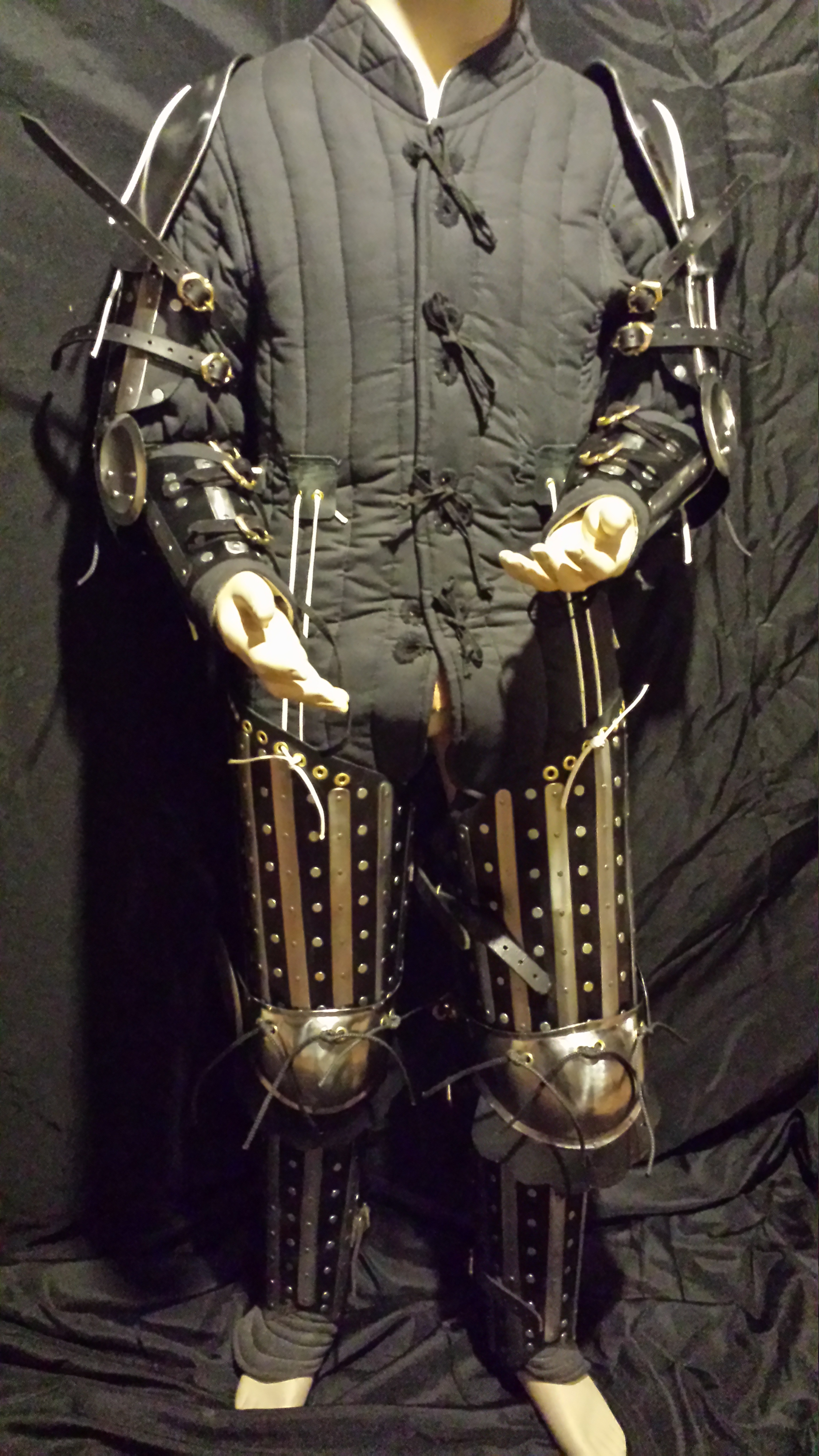

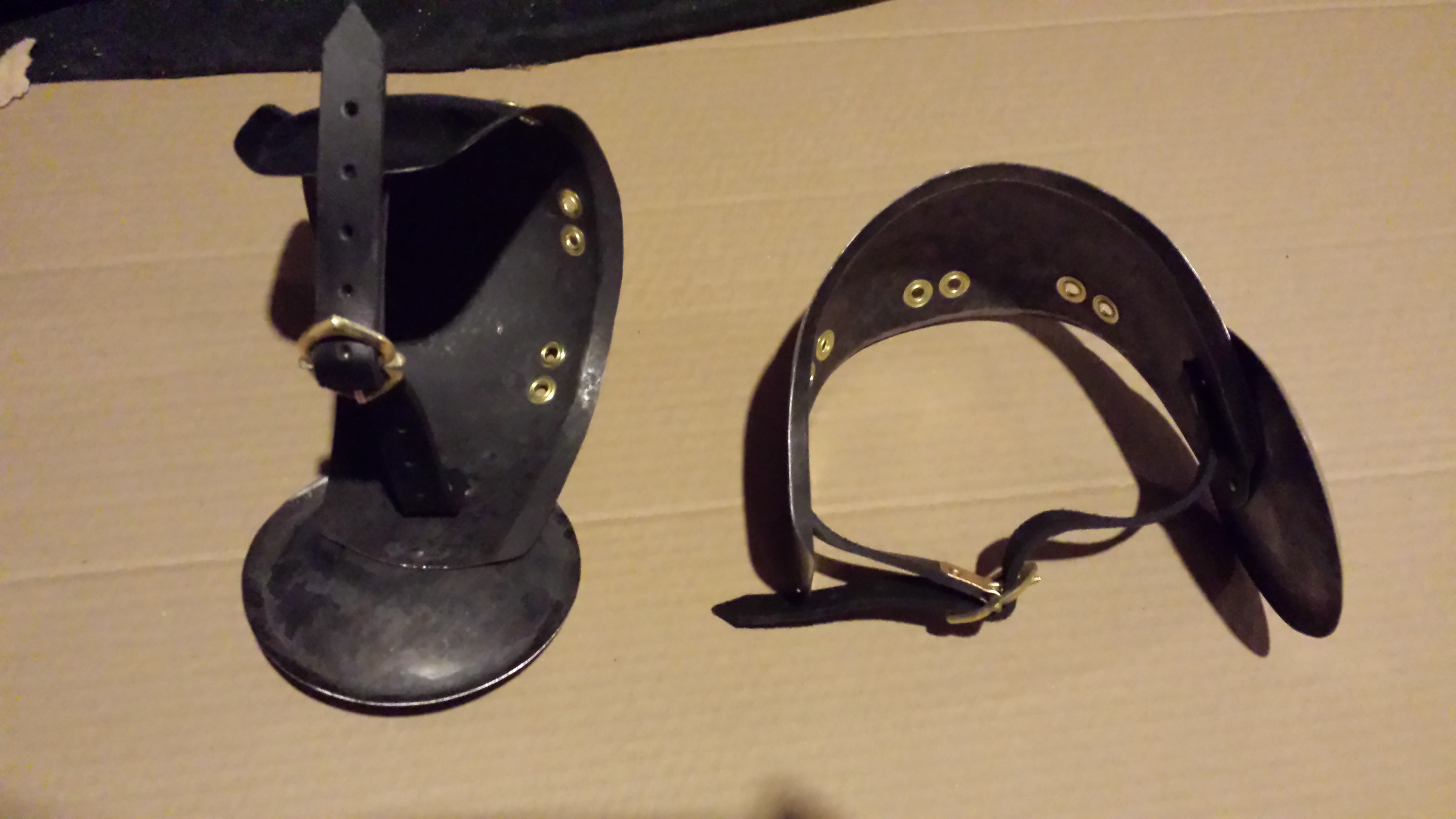

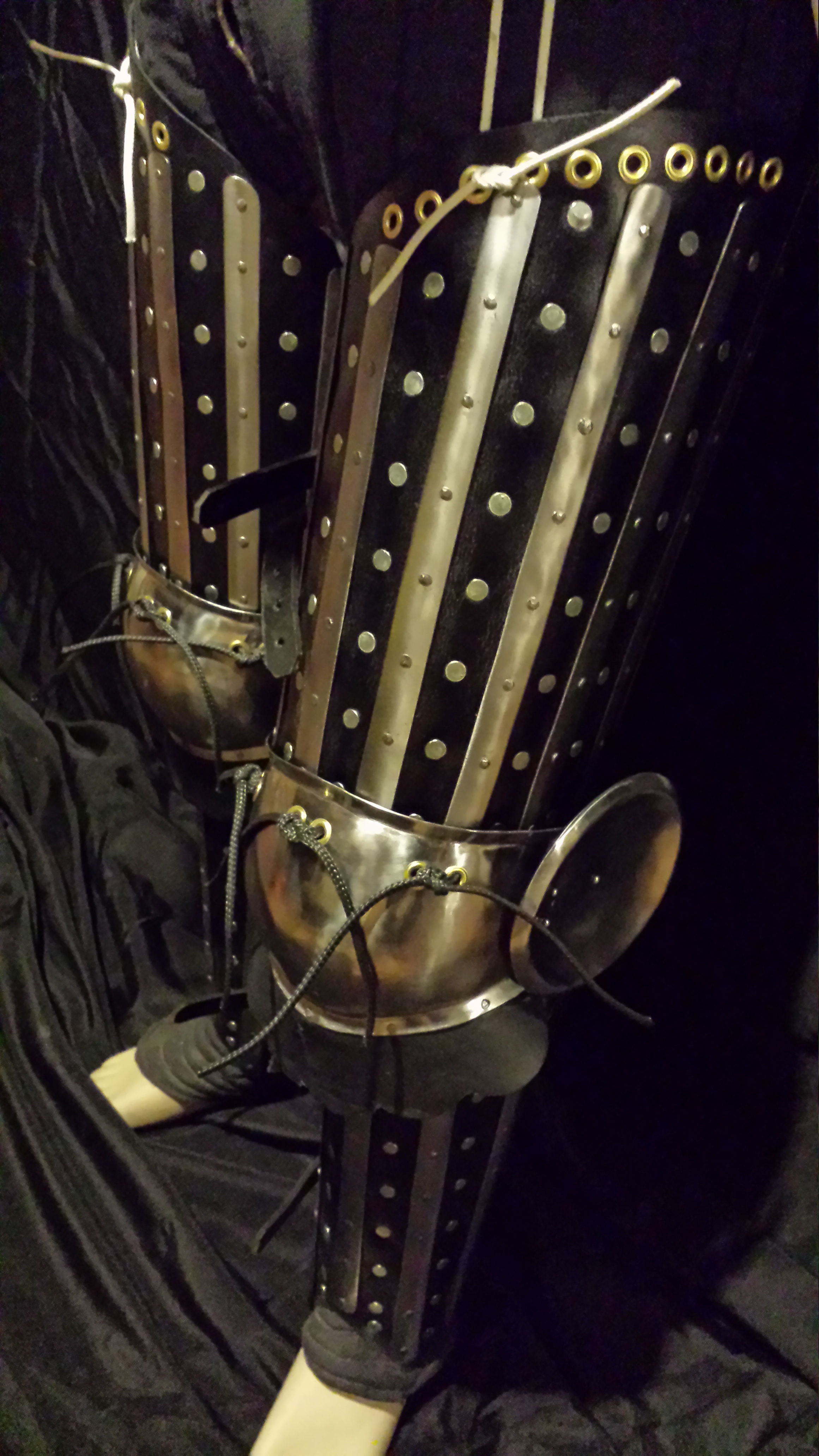

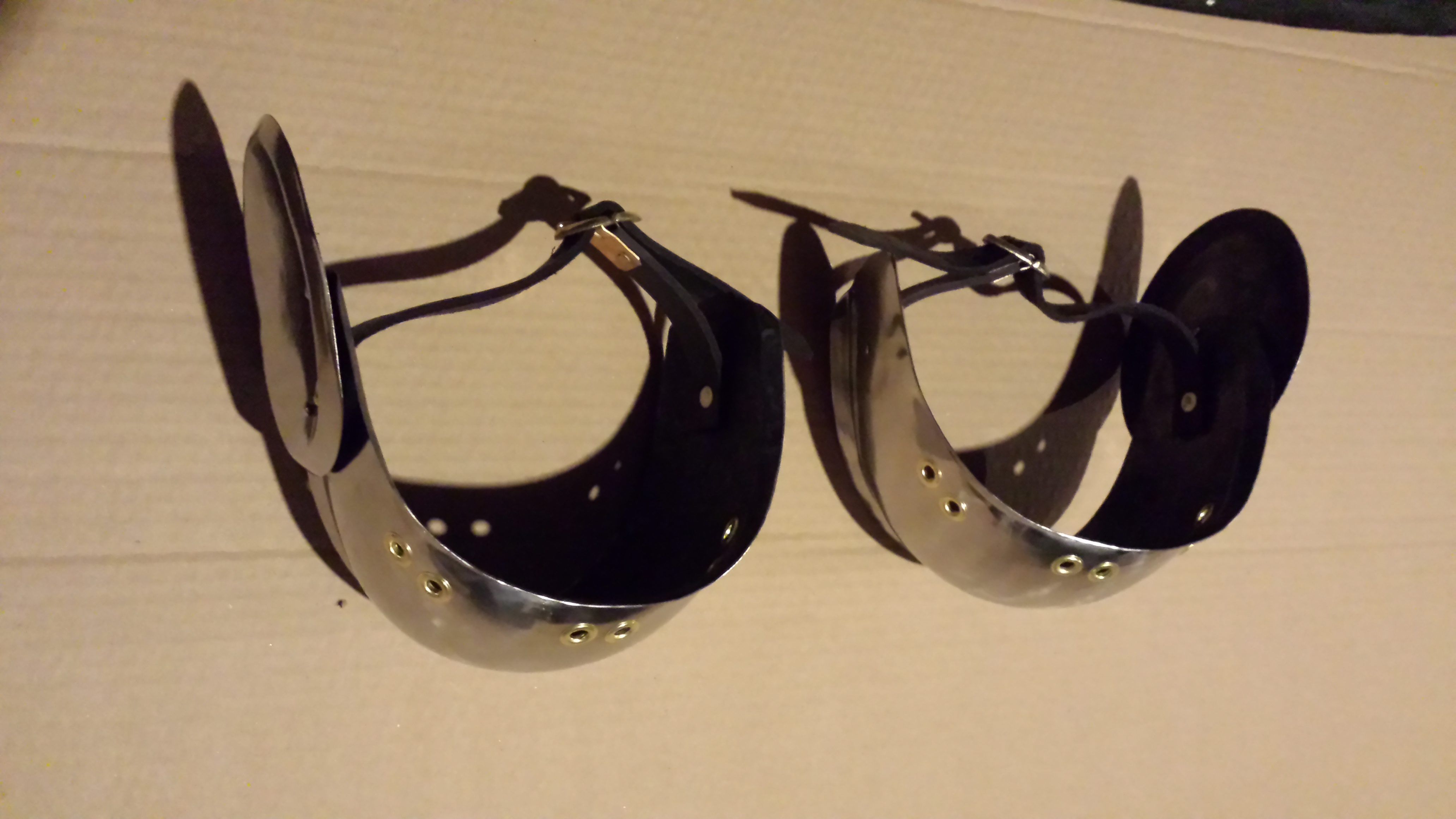

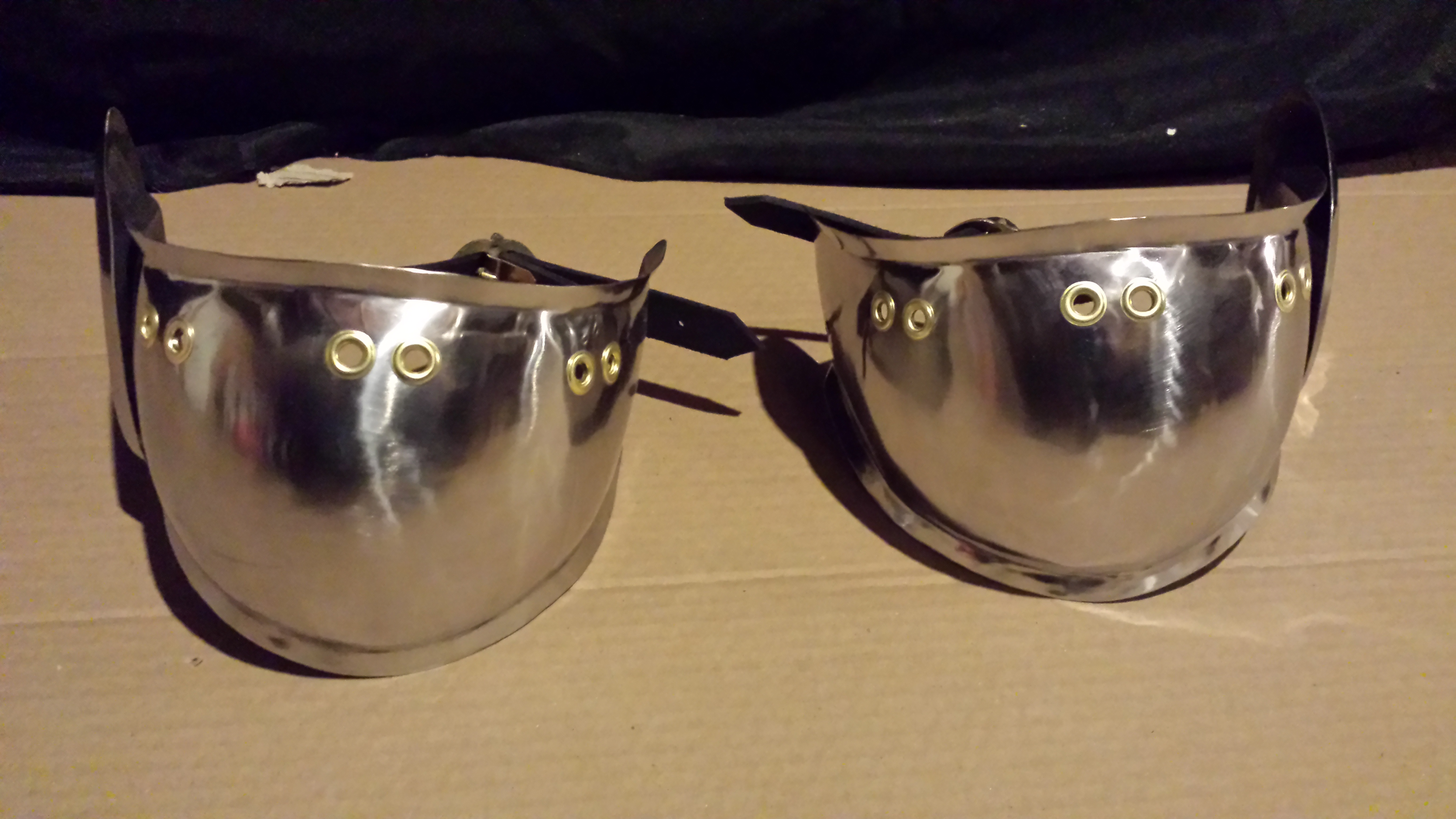

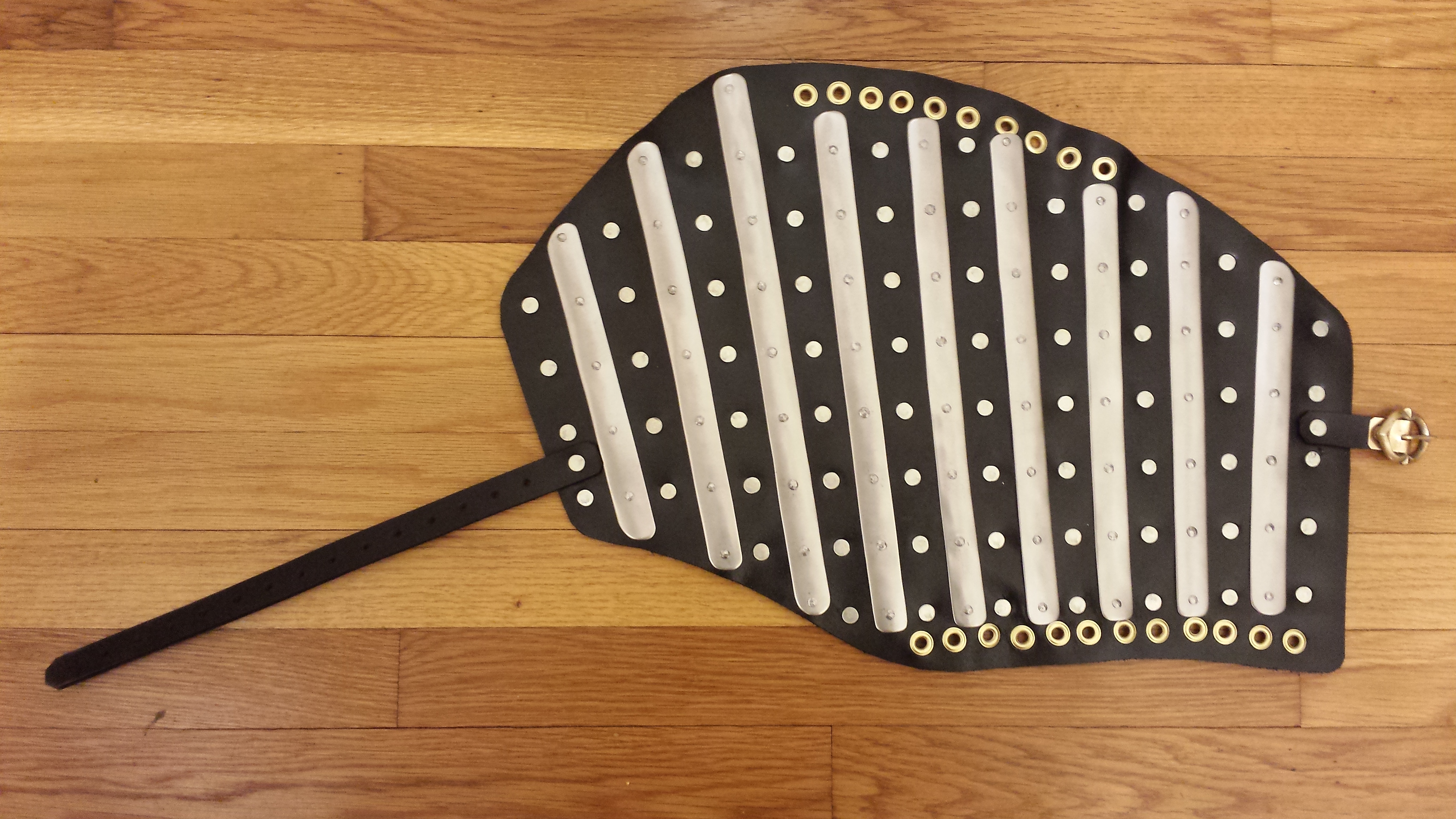

       The cuisse and greave shells are 6oz. buffalo leather The splints and knee cops are made from 4130 alloy steel sheet metal and hardened to HRC48. The outside splints and knee cops are made from 0.040"/19ga./1.0mm and the inside splints 0.032"/21ga./0.8mm. The holes in the plate pattern are designed for 11 guage zinc plated steel roofing nails. I do NOT recommend using stainless steel nails. If you have to recover the armour they will be too difficult to remove.
       The legs are sized for someone between who's height is 5'10"/173cm to 6'1"/183cm and who's weight is 200lbs./82kg to 240lbs./100Kg.






Latest Patterns as of January 25, 2018




CAD DXF files of the patterns.
splint_legs.dxf
