Sugar Loaf with Visor

(c. Mid 14th Century)

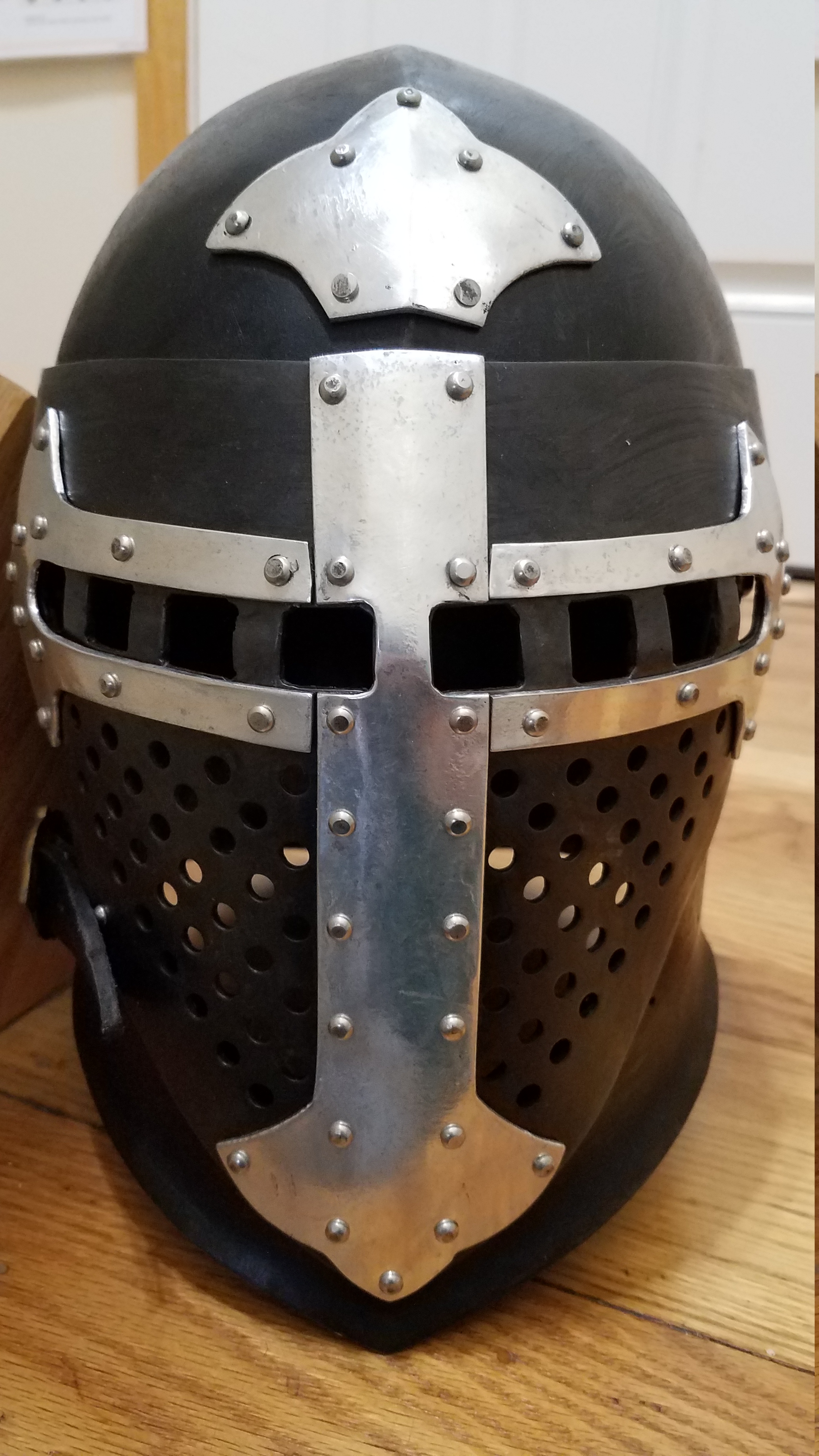

Finished September 16, 2019


The helmet was made from 4130 alloy steel. The top has made from 0.125"/11ga/3.2mm and the rest of the helmet 0.090"/13ga/2.3mm. The helmet was heat treated to a HRC48 hardness. The helmet was blackened and the cross was tinned by hot dripping.



Click on image for more photos.

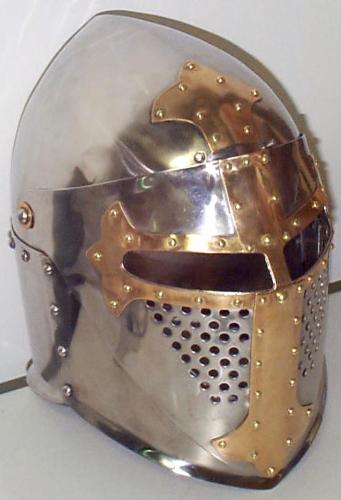

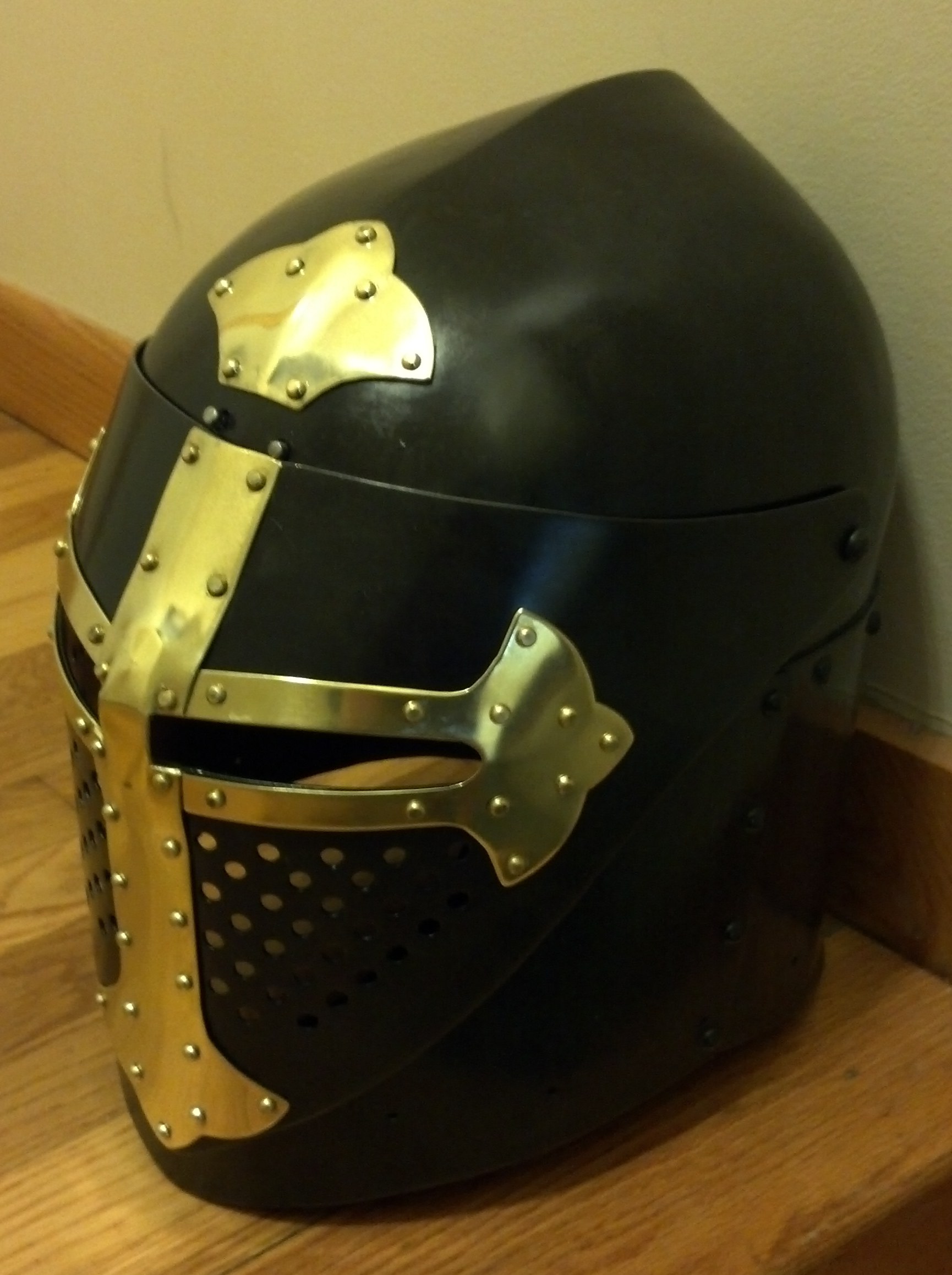

Finished November 8, 2014


The helmet was made from 0.091"/2.3mm 17-7ph Stainless Steel with 0.025"/0.6mm 260 brass for the cross. The helmet was heat treated to 17-7ph Stainless Steel condition TH1100, which has a Rc35-37 hardness. The brass is 0.040"/1.0mm 260 "Cartridge" brass.



Click on image for more photos.

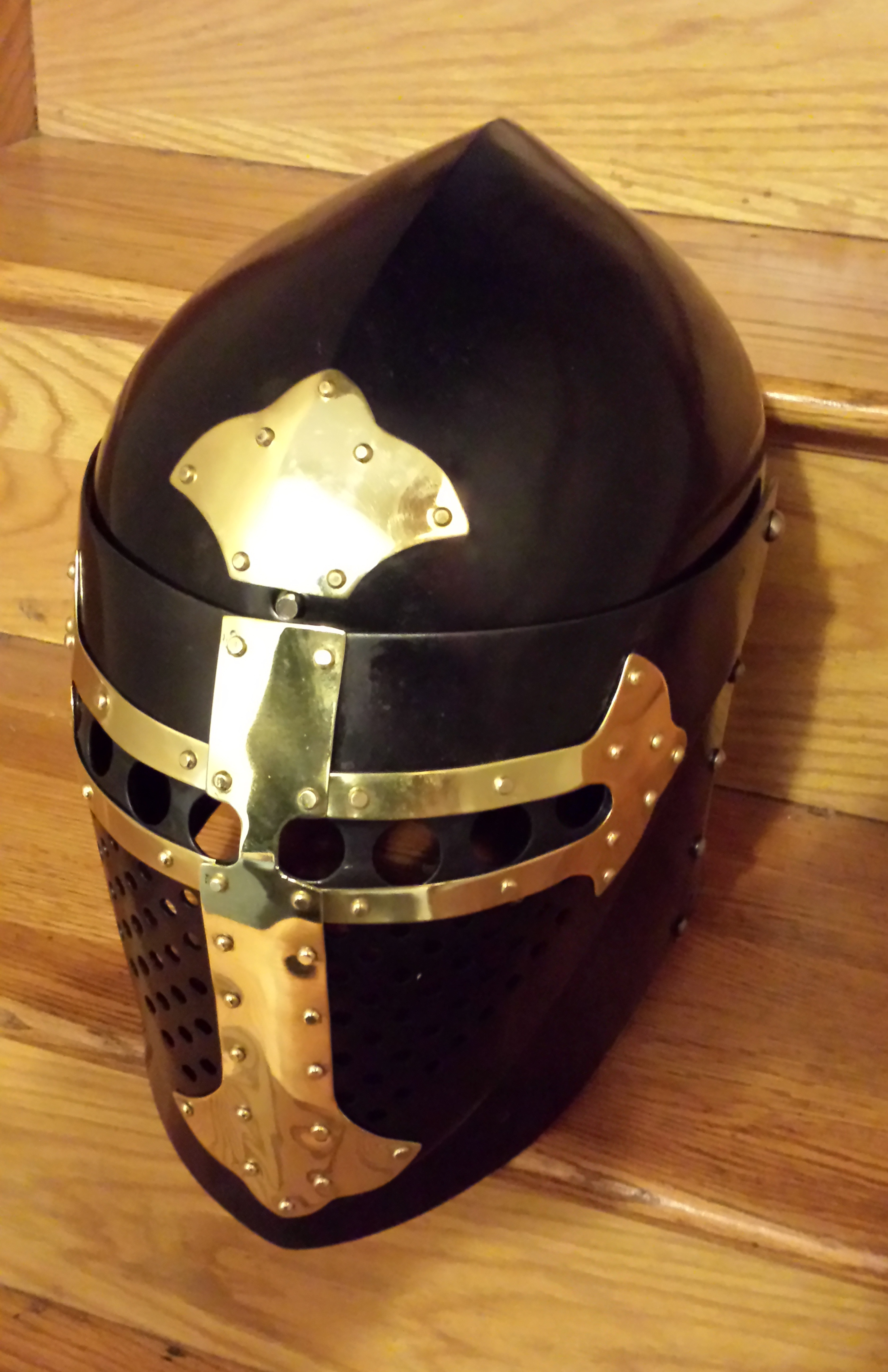

Finished April 15, 2014


The top was made from 0.125"/3.2mm 4130 alloy steel, the bottom and visor were made from 0.100"/2.54mm 4130 alloy steel. The helmet was heat treated to a Rc43 hardness. The brass is 0.040"/1.0mm 260 "Cartridge" brass.



Click on image for more photos.






Latest Patterns

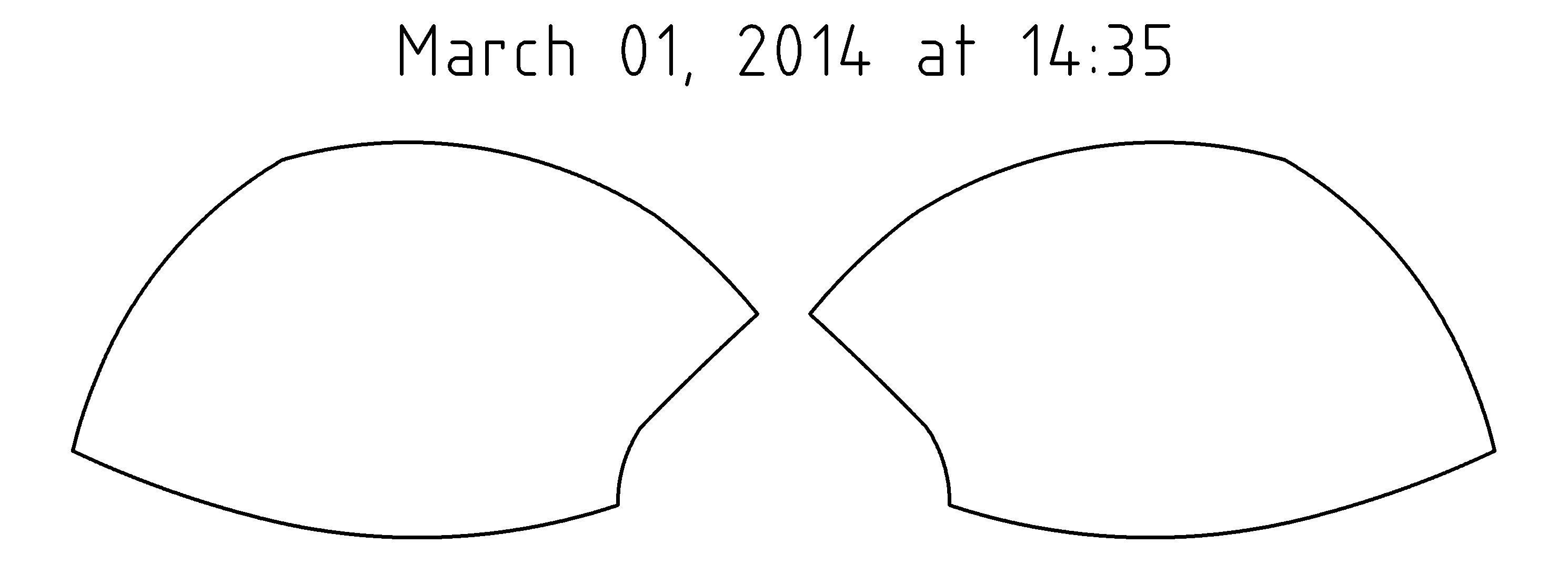

CAD DXF file of the pattern for the ACL/IMCF/HMB/BotN version of this Visored Sugarloaf Helm. You can use this file to machine cut the metal plates.

visored_sugarloaf_top_L.dxf

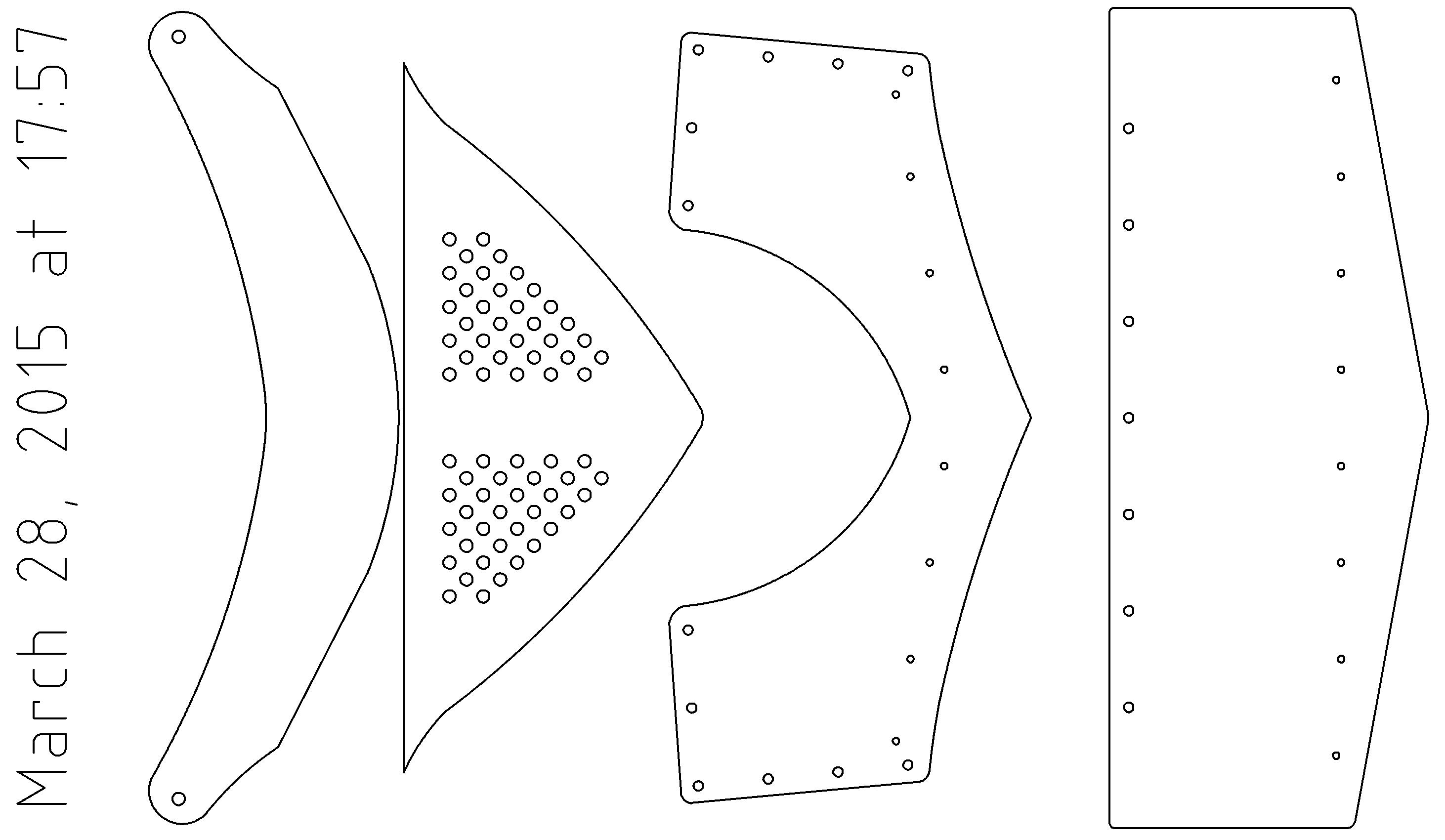

visored_sugarloaf_bottom_L.dxf

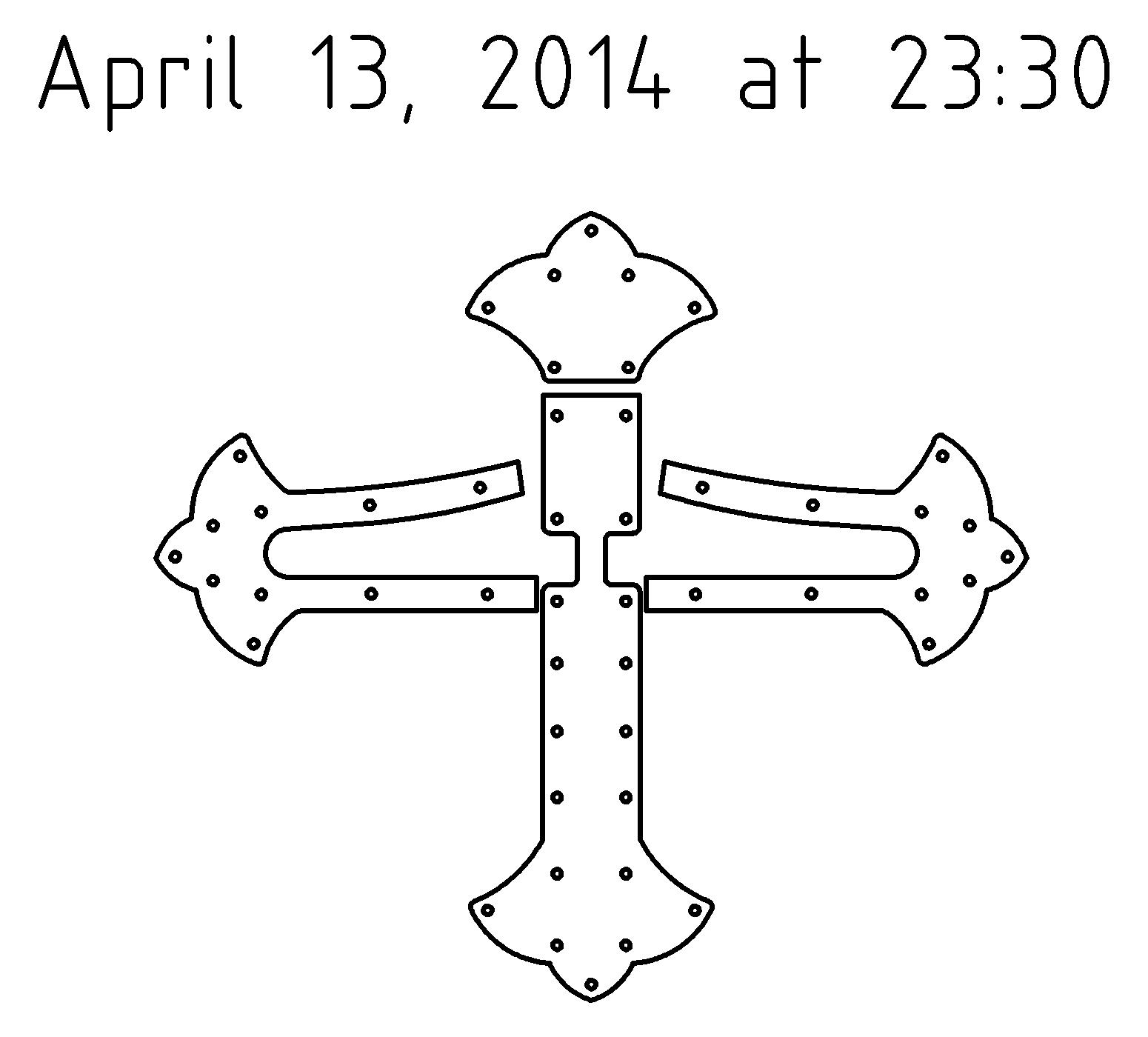

visored_sugarloaf_cross.dxf

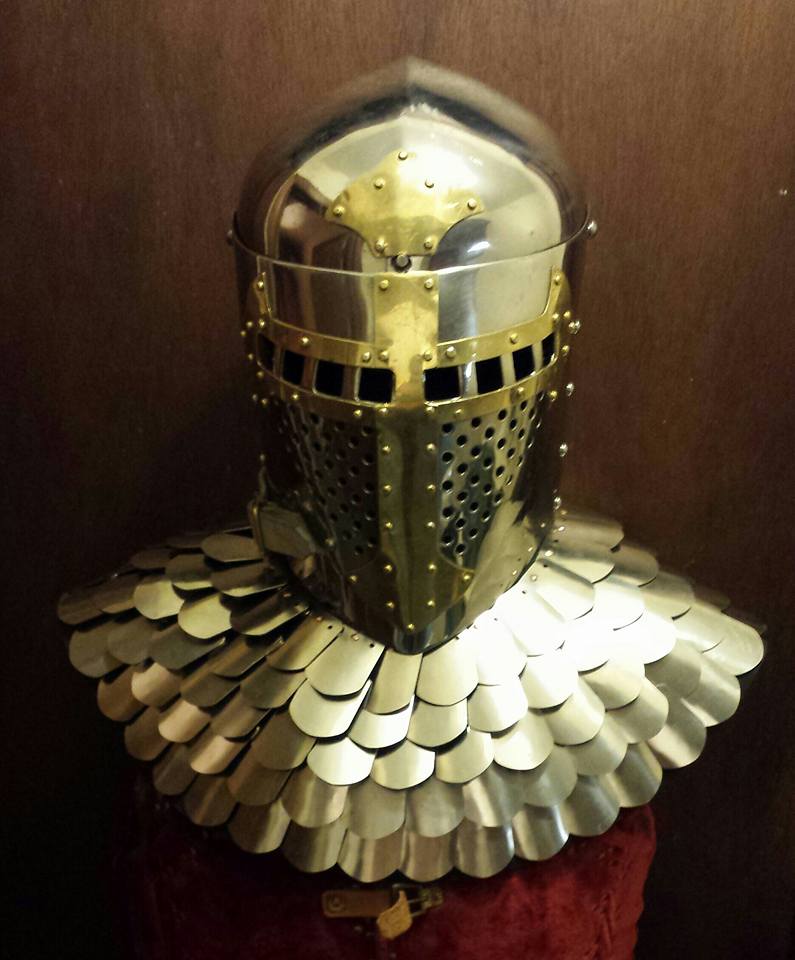

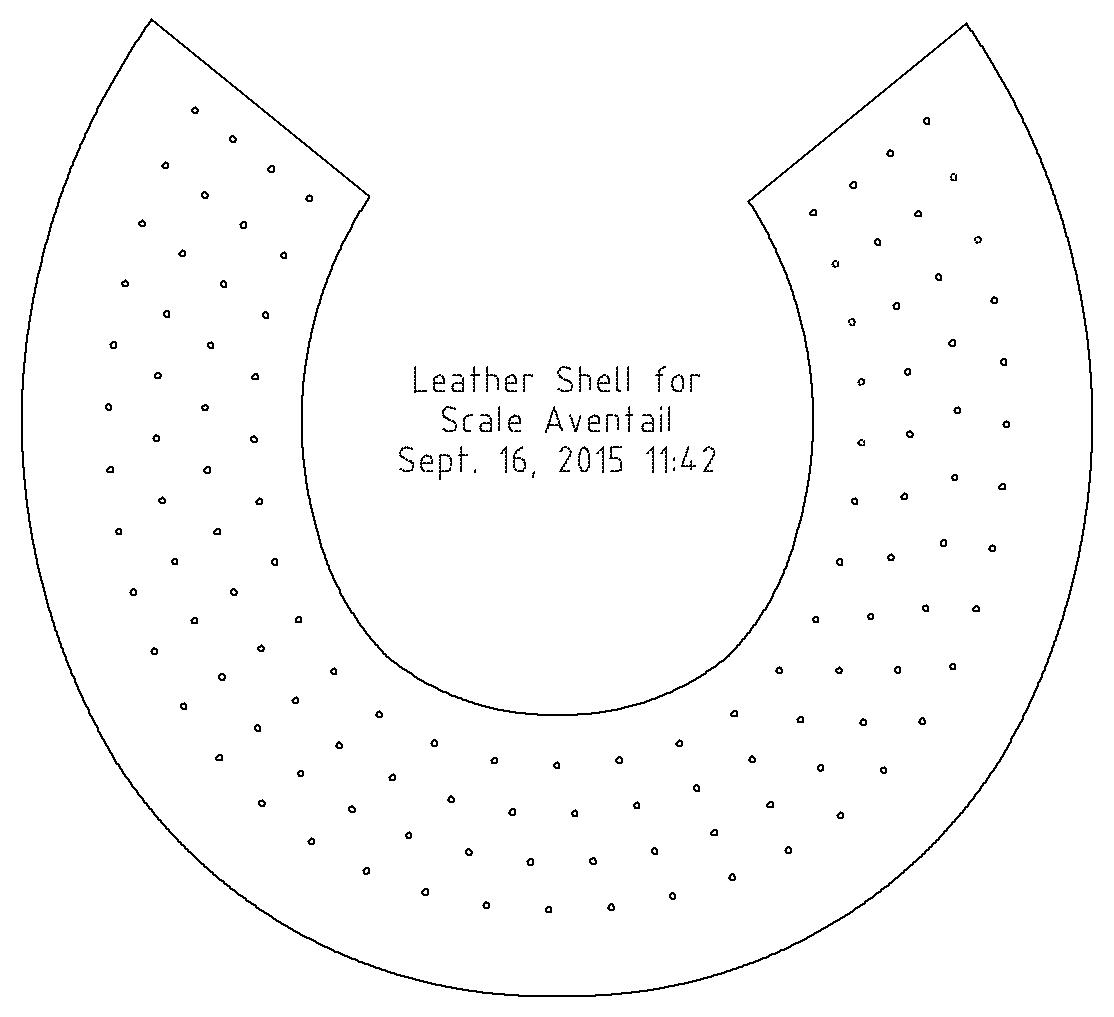

visored_sugarloaf_aventail_shell_L.dxf

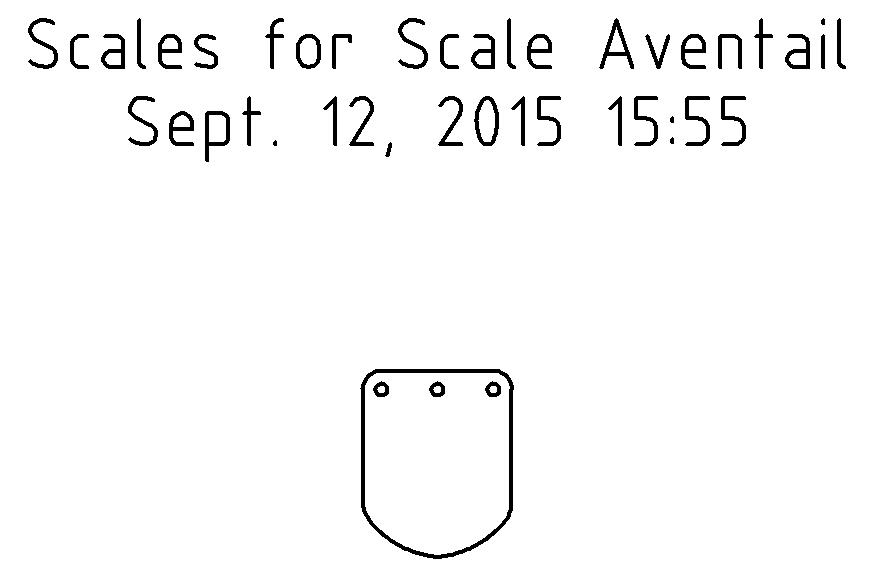

visored_sugarloaf_aventail_scale.dxf

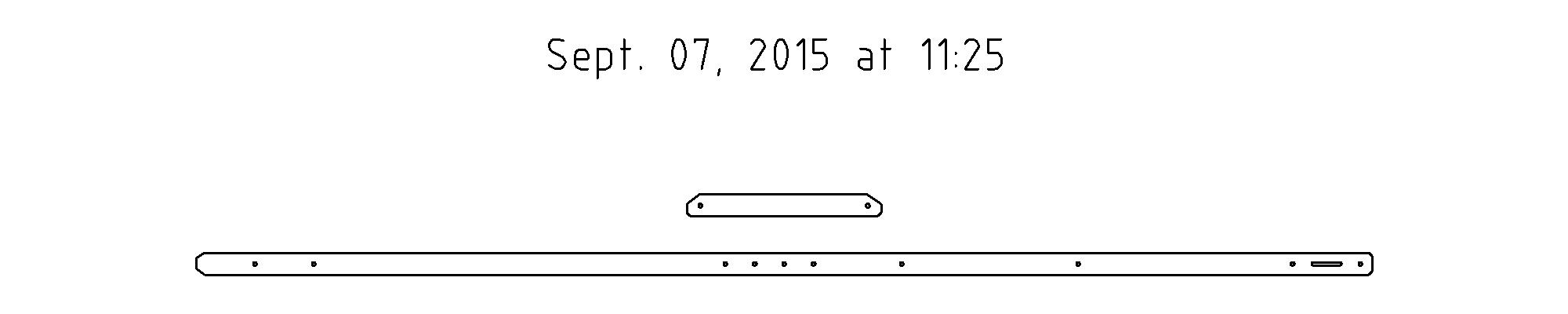

visored_sugarloaf_chin_strap.dxf

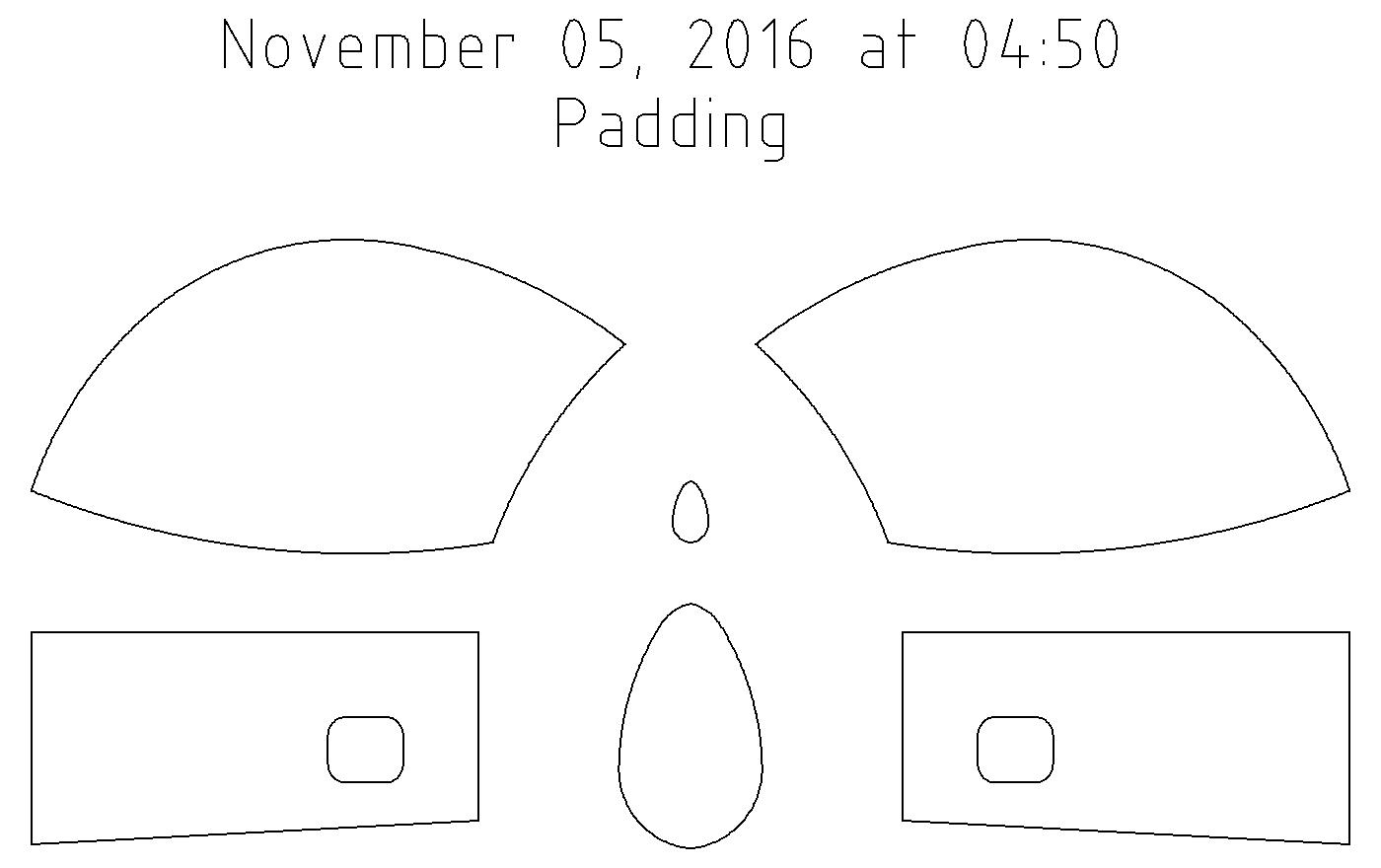

visored_sugarloaf_padding_L.dxf






Documentation


NOTES: Shows a helmet with a single piece low point bascinet style top with a great helmet lower half and a visor.
Stone Carving: Bargello Palace Carving
Dating: 1320-1330
From: Florence, Italy
URL: Bargello Palace Carving, Florence c. 1320-1330


NOTES: Shows a helmet with a bascinet style top with a great helmet lower half and a visor.
Manuscript: BNF Francais 251 Histoire Ancienne Jusqua Cesar
Folio: 250v
Dating: 1325-1350
From: Paris, France
Holding Institution: Bibliotheque Nationale
URL: BNF Francais 251 Histoire Ancienne Jusqua Cesar (Folio: 250v)


NOTES: Shows a helmet with a single piece top and a visor with an eye slot with divider bars on a helmet with a great helmet lower half.
Manuscript: BL Royal 16 G VI Chroniques de France ou de St Denis
Folio: 340
Dating: 1332-1350
From: Paris, France
Holding Institution: British Library
URL: BL Royal 16 G VI Chroniques de France ou de St Denis (Folio: 340)


NOTES: Shows a helmet with a single piece low point bascinet style top with a great helmet lower half.
Manuscript: UBK 2 Ms. poet. et roman. 1 Willehalm-Kodex
Folio: 007v
Dating: 1334
From: Frankfurt, Germany
Holding Institution: Universitat Kassel
URL: UBK 2 Ms. poet. et roman. 1 Willehalm-Kodex (Folio: 007v)


NOTES: Shows a helmet with a single piece low point bascinet style top with a great helmet lower half.
Manuscript: UBK 2 Ms. poet. et roman. 1 Willehalm-Kodex
Folio: 010r
Dating: 1334
From: Frankfurt, Germany
Holding Institution: Universitat Kassel
URL: UBK 2 Ms. poet. et roman. 1 Willehalm-Kodex (Folio: 010r)


NOTES: Shows a helmet with a single piece low point bascinet style top with a great helmet lower half.
Manuscript: UBK 2 Ms. poet. et roman. 1 Willehalm-Kodex
Folio: 011r
Dating: 1334
From: Frankfurt, Germany
Holding Institution: Universitat Kassel
URL: UBK 2 Ms. poet. et roman. 1 Willehalm-Kodex (Folio: 011r)


NOTES: Shows a helmet with a single piece low point bascinet style top with a great helmet lower half.
Manuscript: UBK 2 Ms. poet. et roman. 1 Willehalm-Kodex
Folio: 012r-1
Dating: 1334
From: Frankfurt, Germany
Holding Institution: Universitat Kassel
URL: UBK 2 Ms. poet. et roman. 1 Willehalm-Kodex (Folio: 012r-1)


        The following examples of visored sugarloaf helms (or early multi-section constructed bascinets) can be found in Arms & Armour of the Crusading era 1050-1350 by David Nicolle.

Page 400 fig. 220a  Manuscript, England early 14th century
(British Library, Ms. Roy. 16.G.VI, f.172, London, England)

Page 400 fig. 221    "The Luttrell Psalter" East Anglia (England) 1340c.
(British Library, Ms. Add.42130, London, England)

Page 401 fig. 223b  "Treatise of Walter de Milemete" London, c.1326
(British Library, Ms. Yates Thompson 14, f.7, London, England)

Page 452 fig. 537c  "Mordred beseiges London",Roman de Saint Graal, Flanders, early 14th century
(British Library, Ms.Add.10292, f.81b, London, England)






Older Work



Finished Dec. 27, 2013



Made from 0.083" 1050 Carbon Steel and Heat Treated to a Rc43 hardness
(Quenched at 1600F/871C, Tempered at 650F/343C for 30 minutes).

Click on image for more photos.






Finished Nov. 1999



Click on image for more photos.
