Sugar Loaf

(c. 14th Century)



Finished January 31, 2018

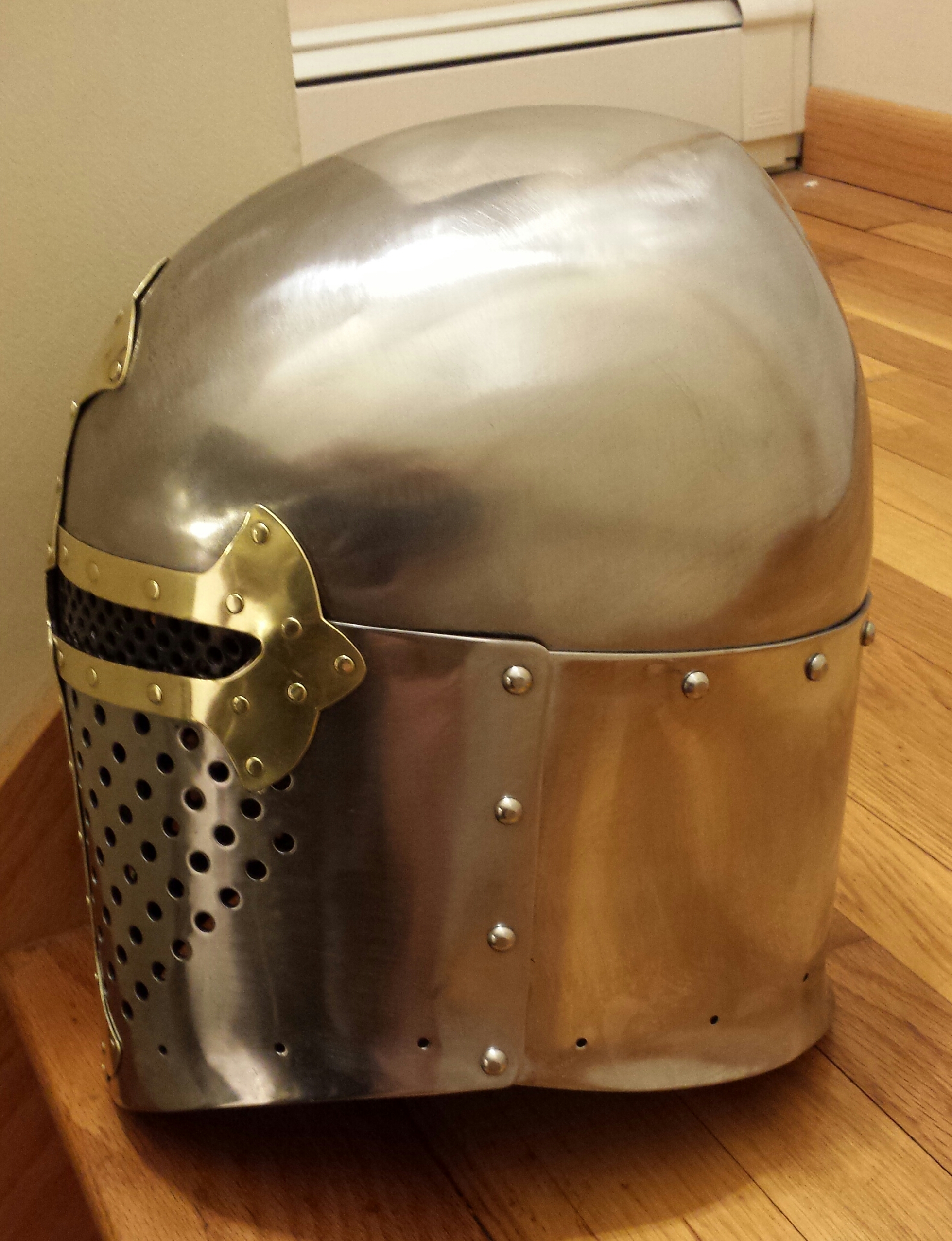

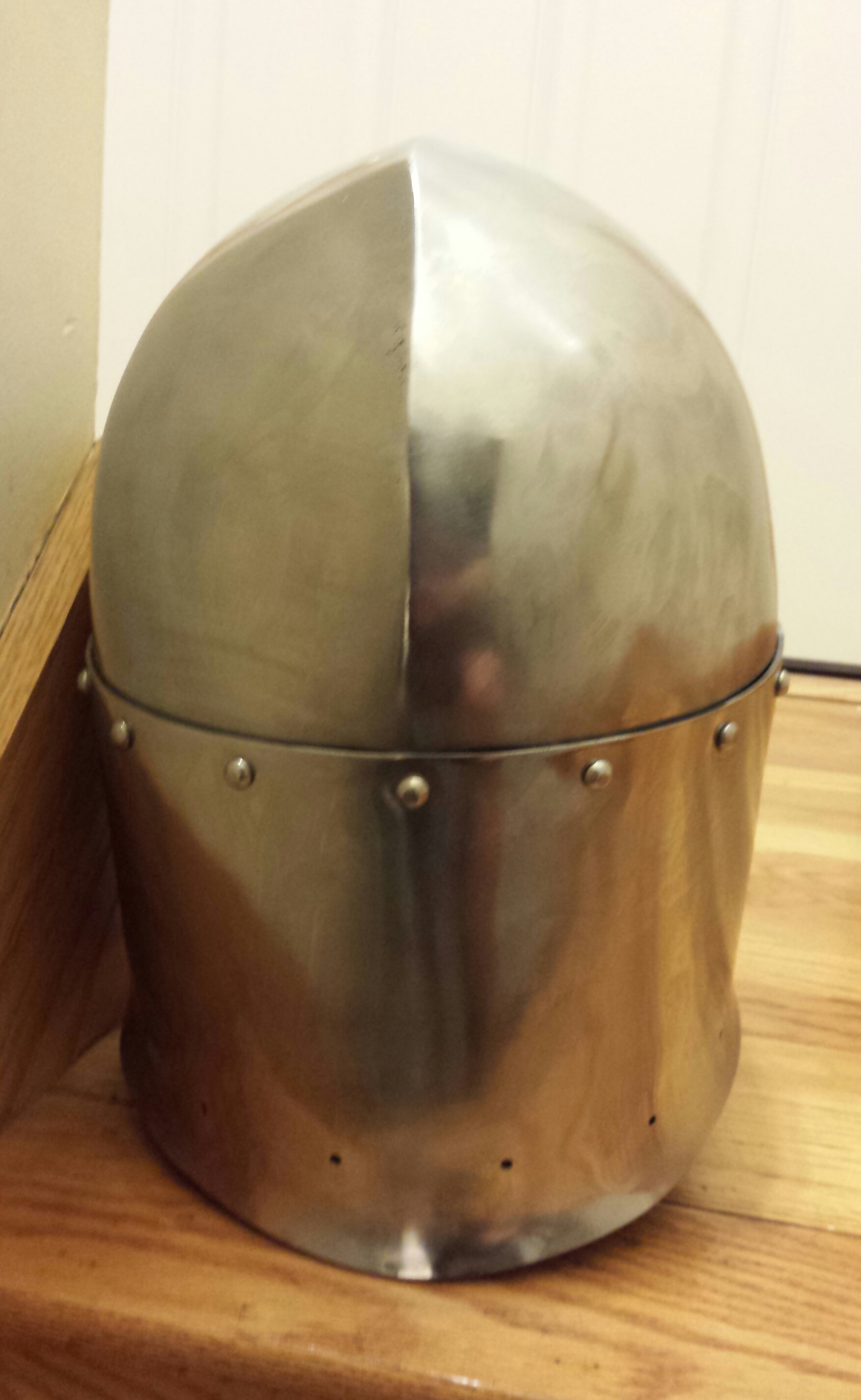

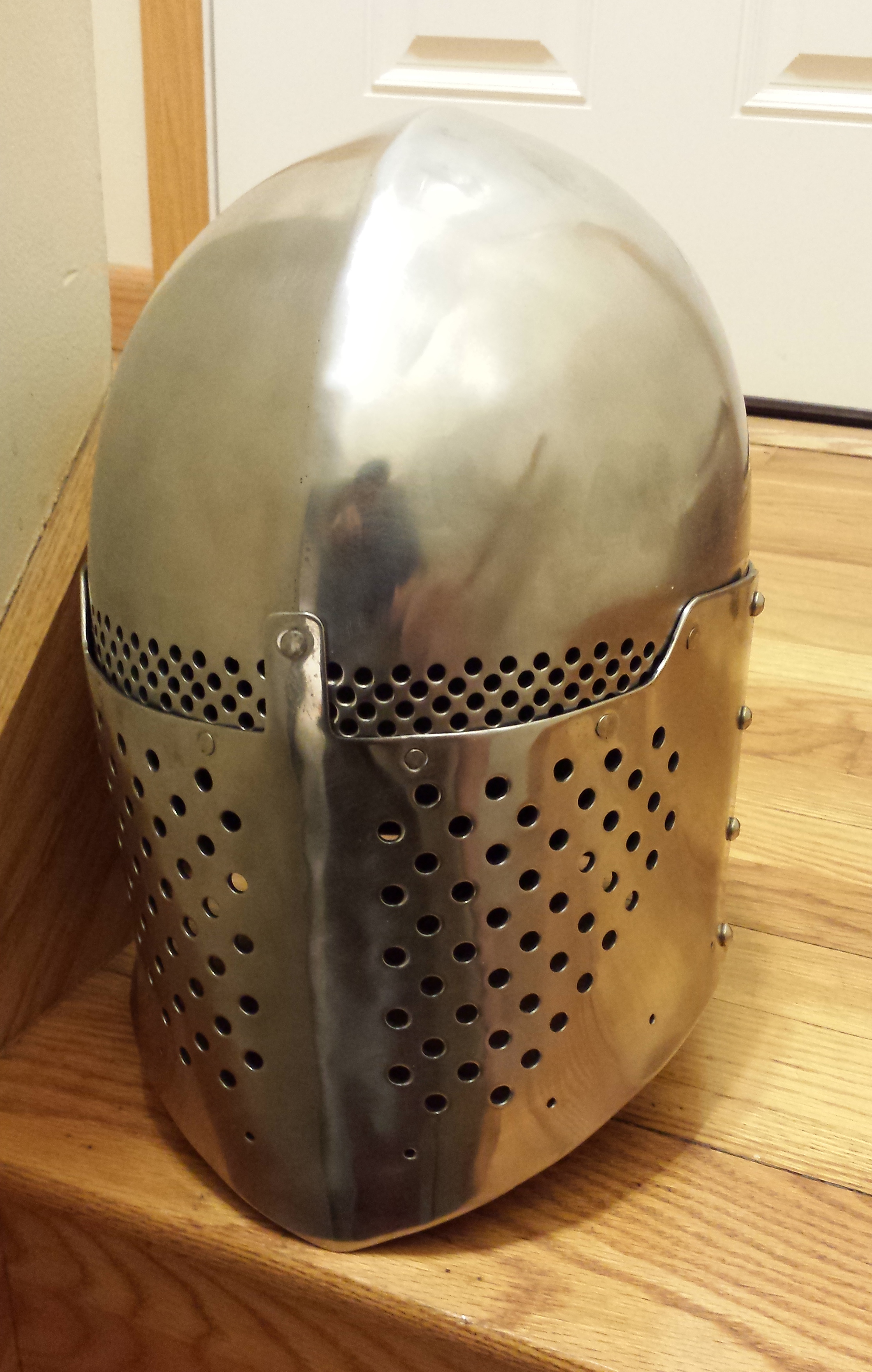

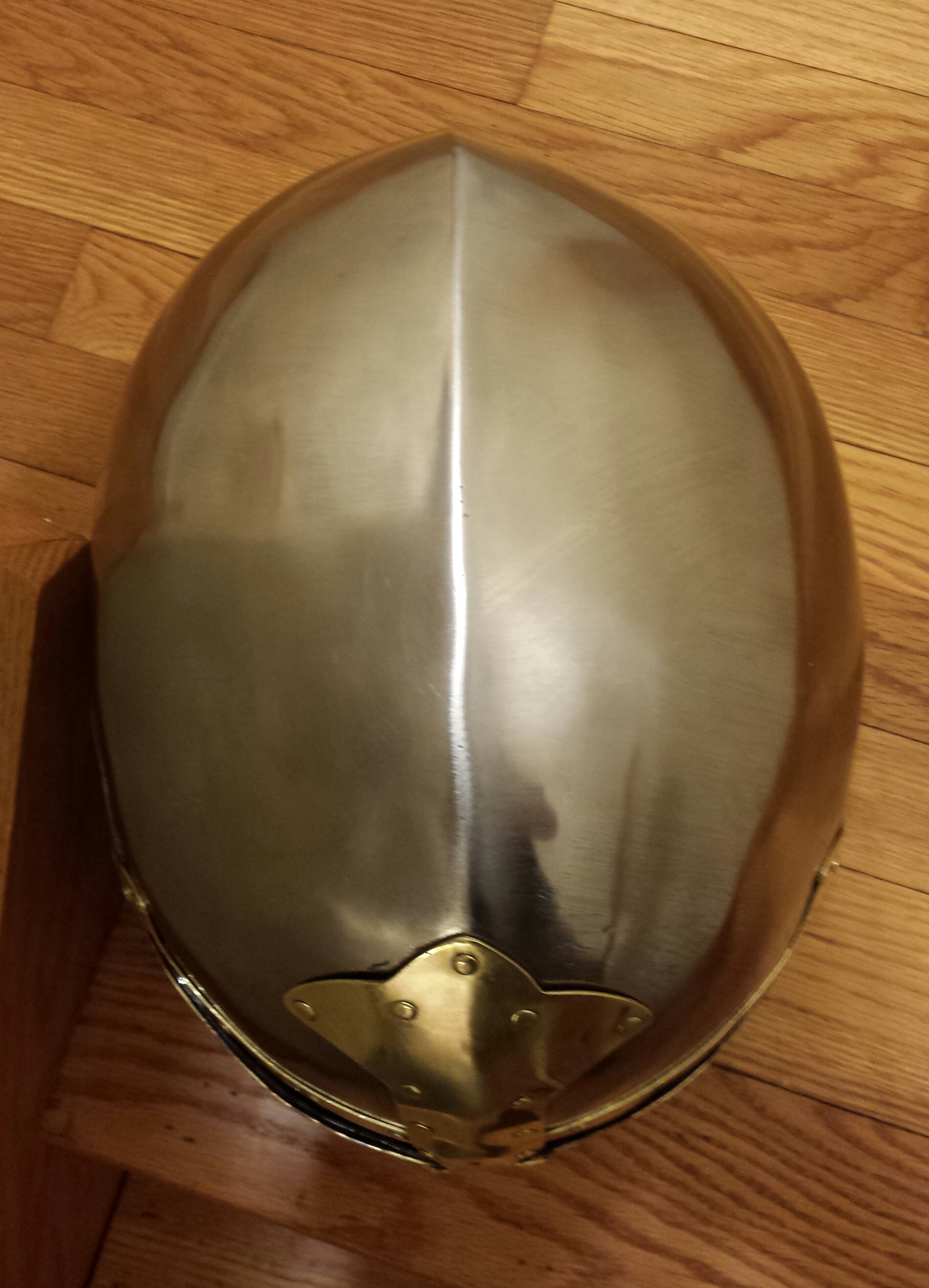

The top was made from 0.125"/3.2mm 4130 alloy steel, the bottom and visor were made from 0.090"/2.3mm 4130 alloy steel. The helmet was heat treated to a Rc48 hardness. The brass is 0.040"/1.0mm 260 "Cartridge" brass.






Patterns

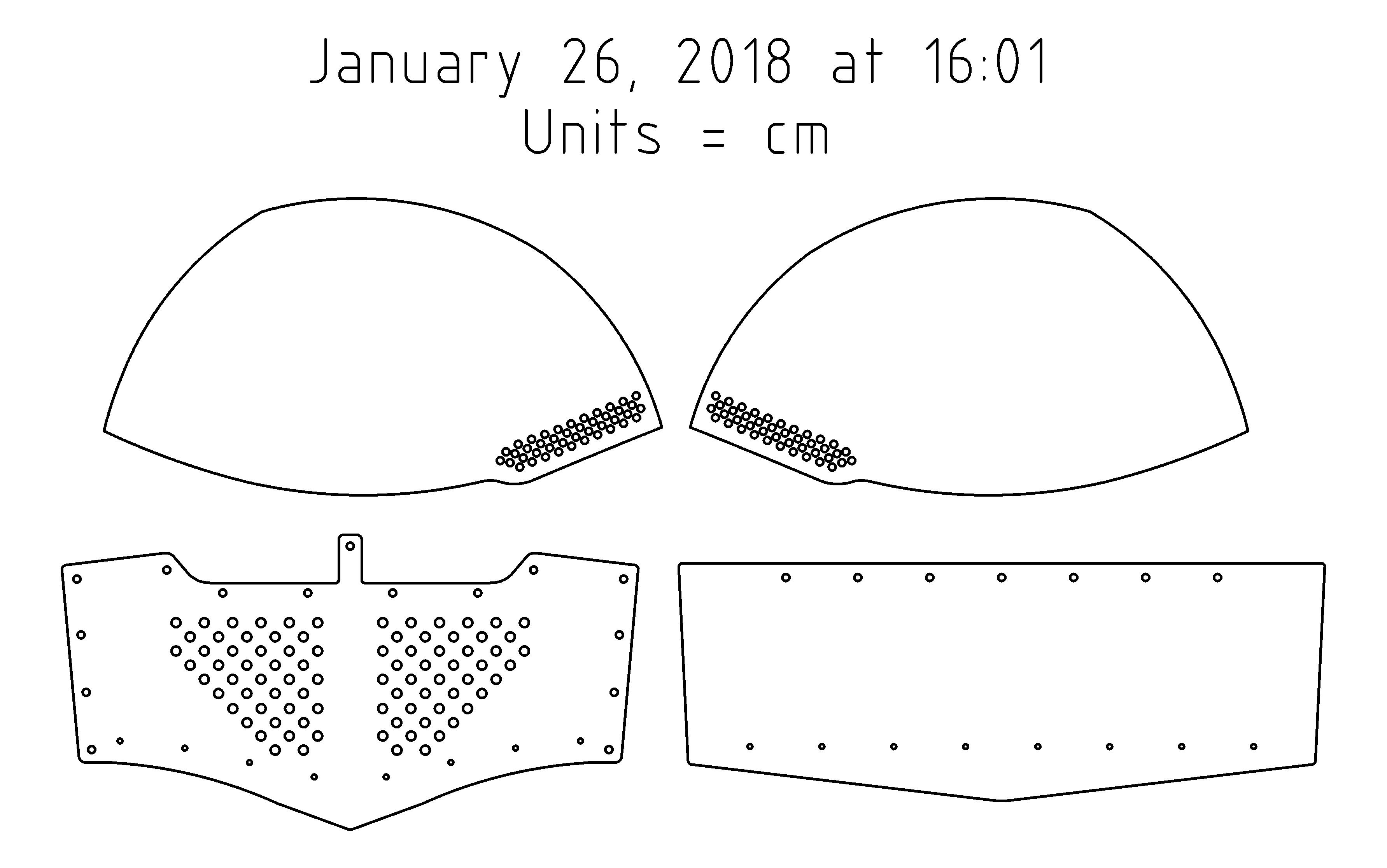

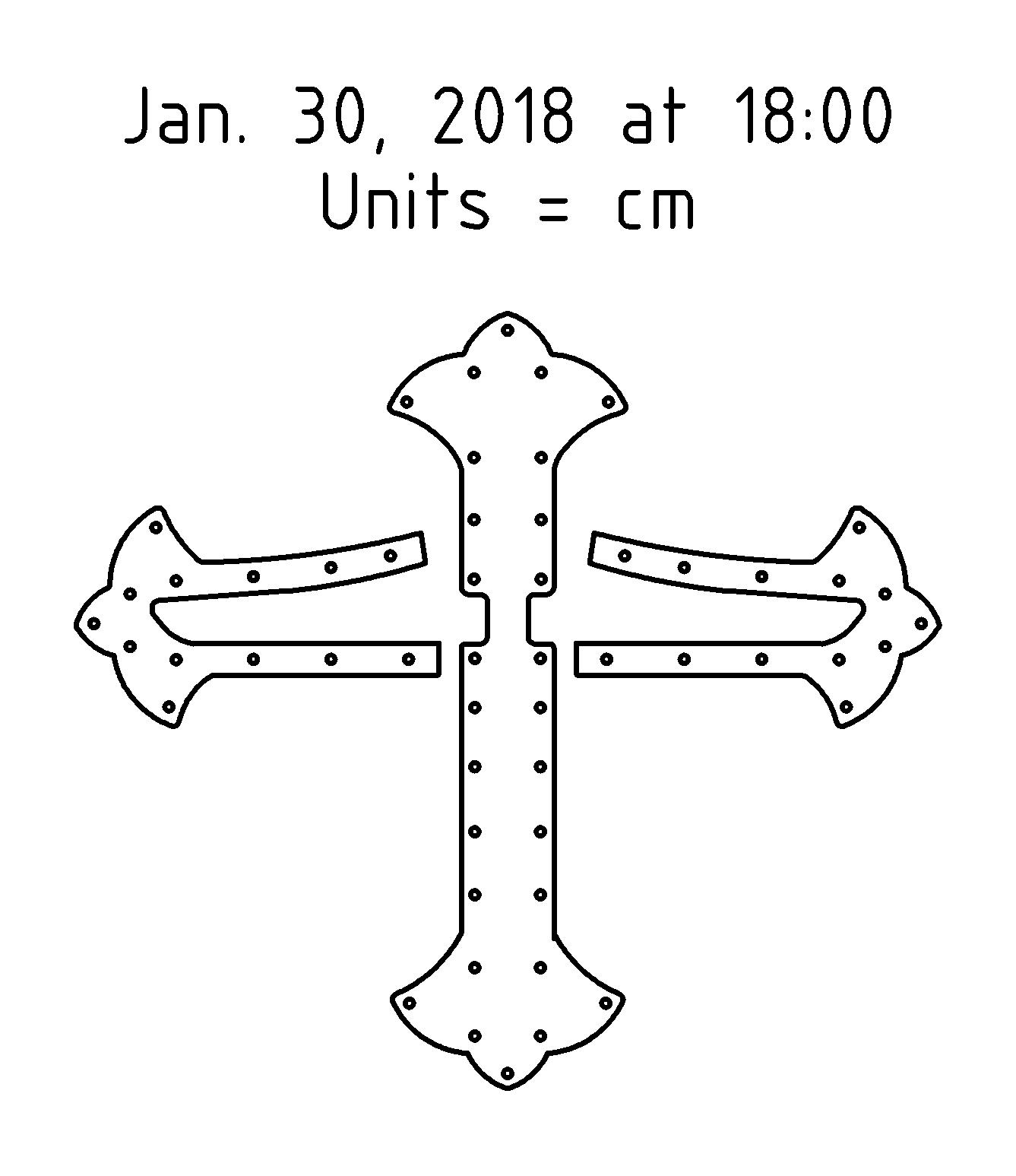

CAD DXF file of the pattern for the ACL/BotN version of this Sugarloaf Helm without the brass cross. You can use this file to machine cut the metal plates.

sugarloaf_L.dxf    sugarloaf_cross_L.dxf

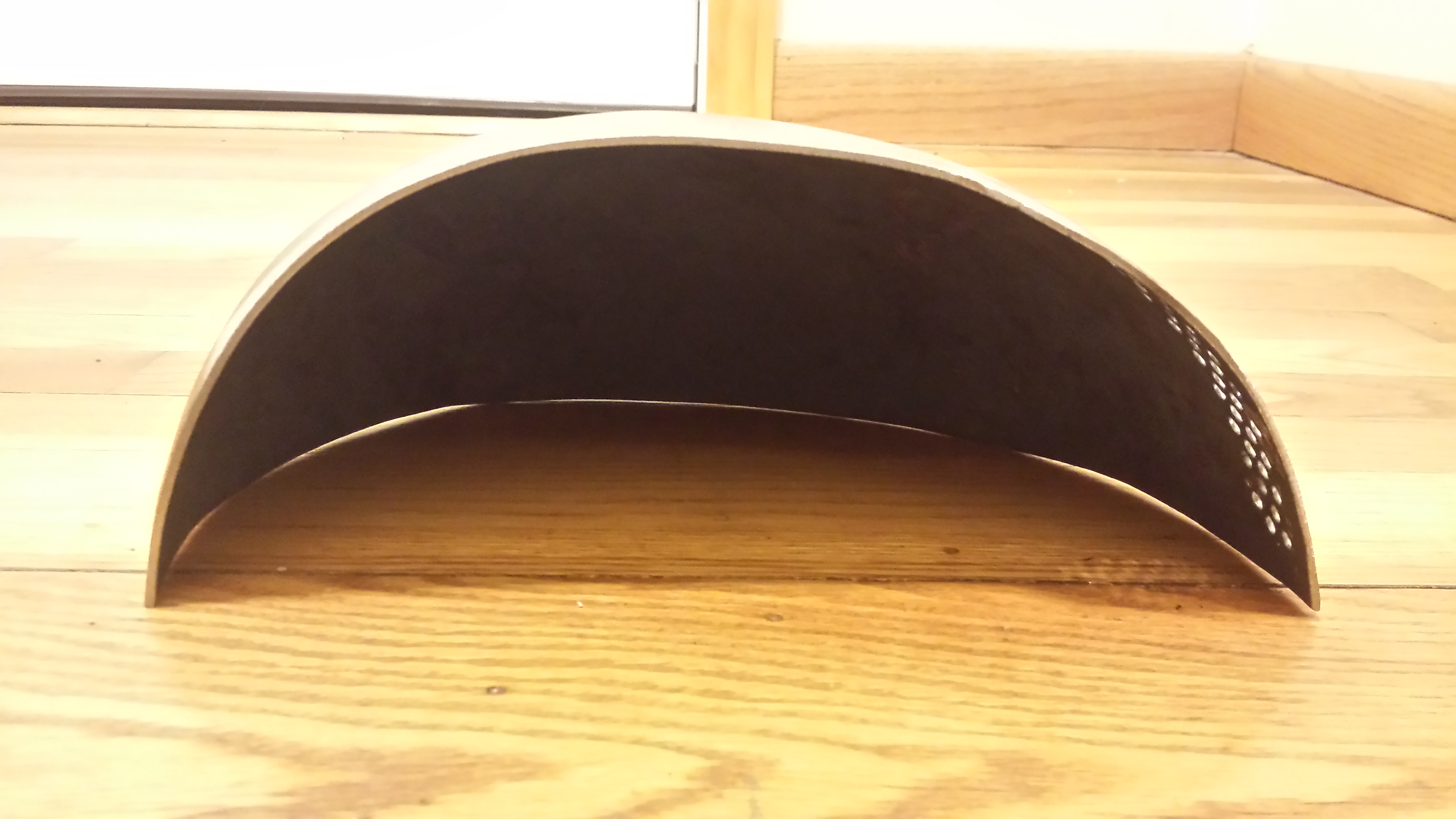

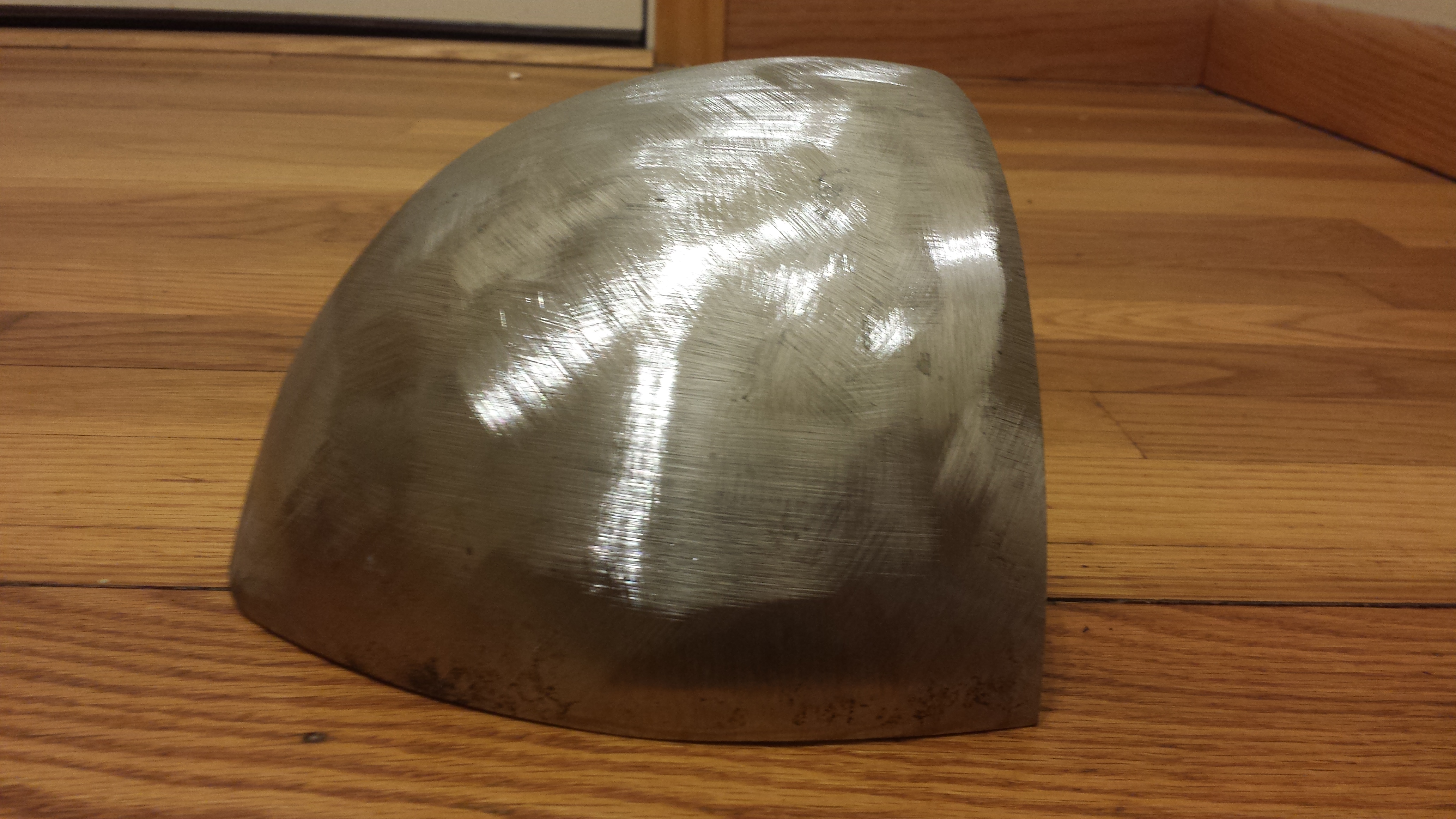

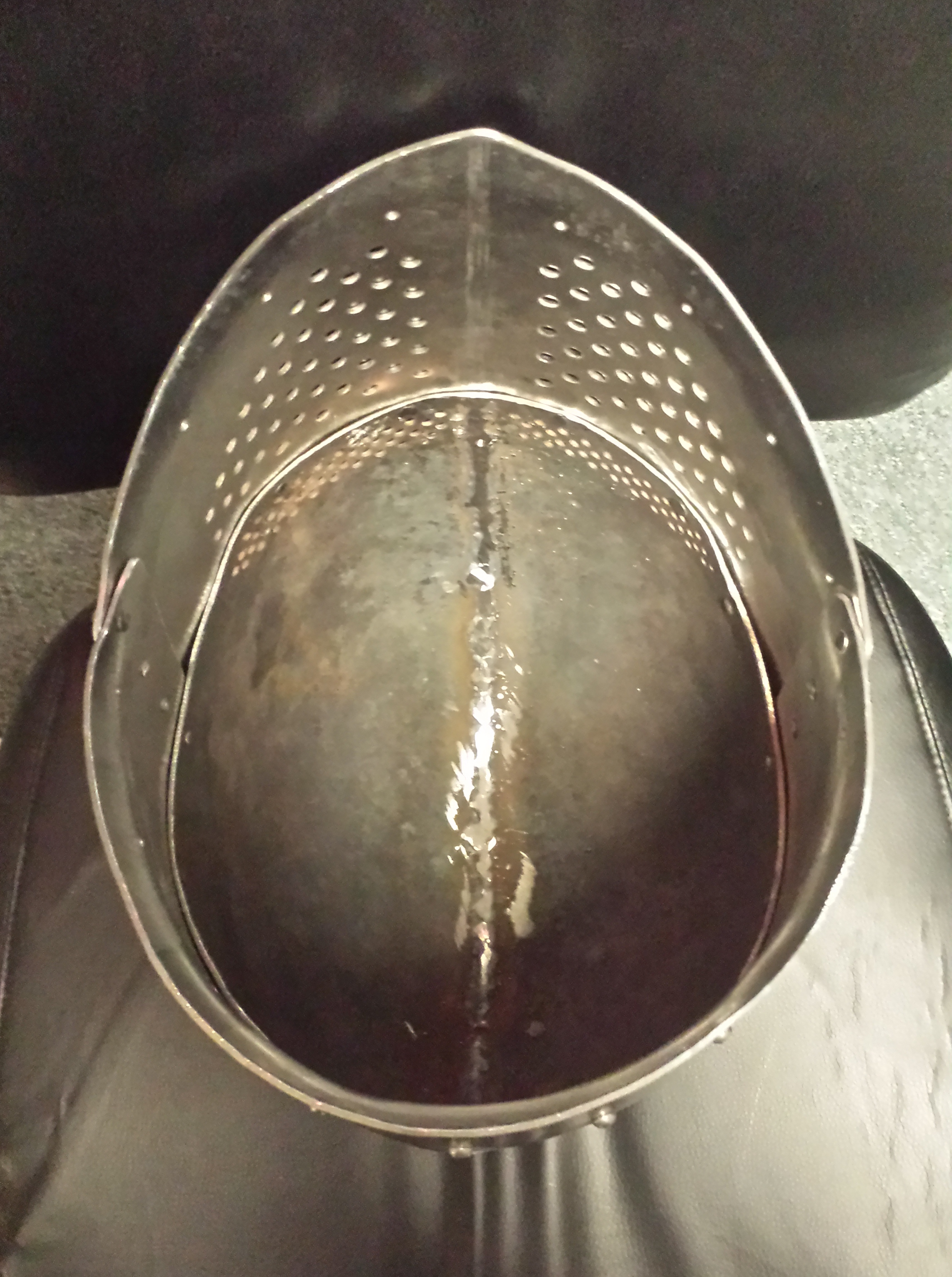

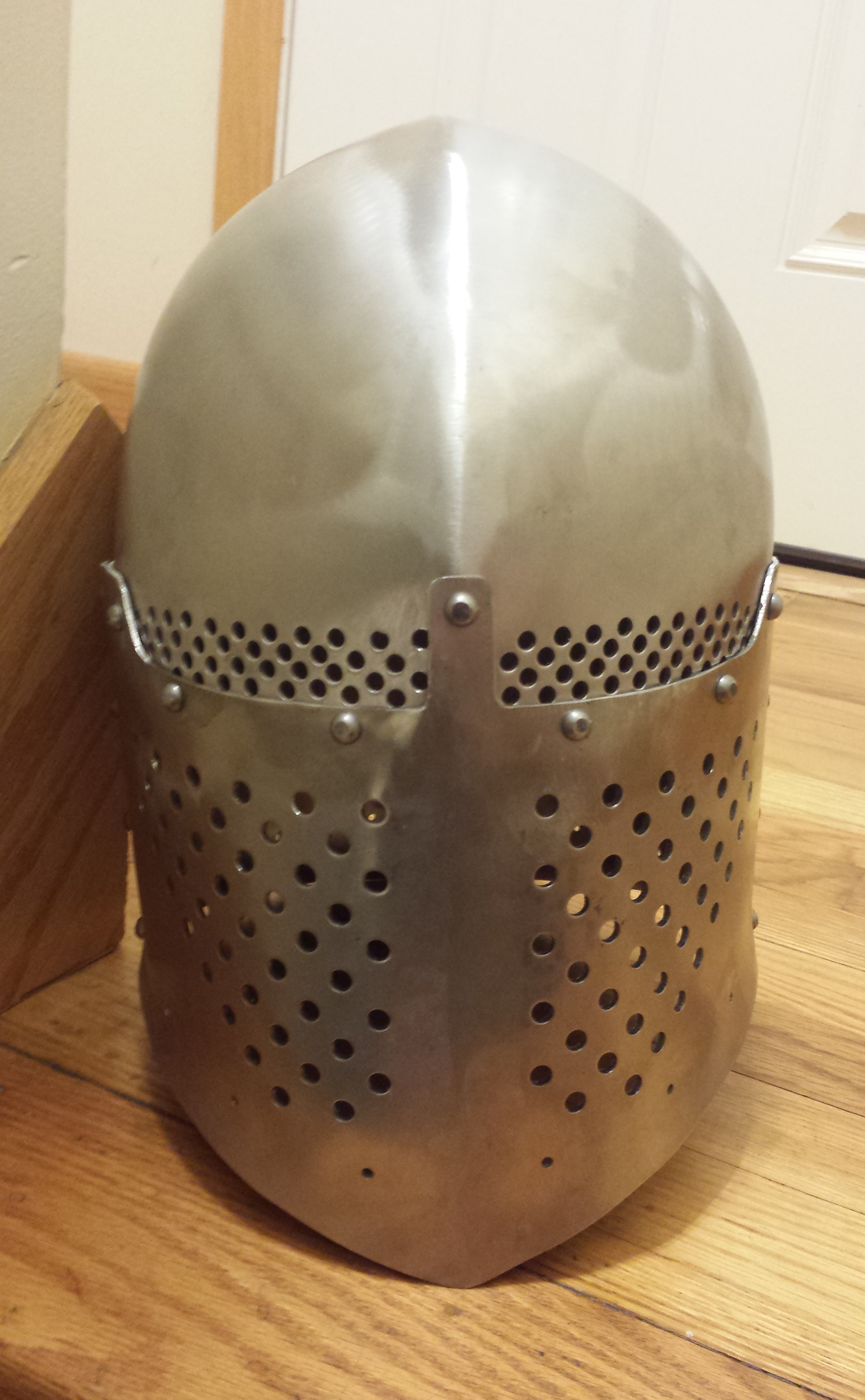

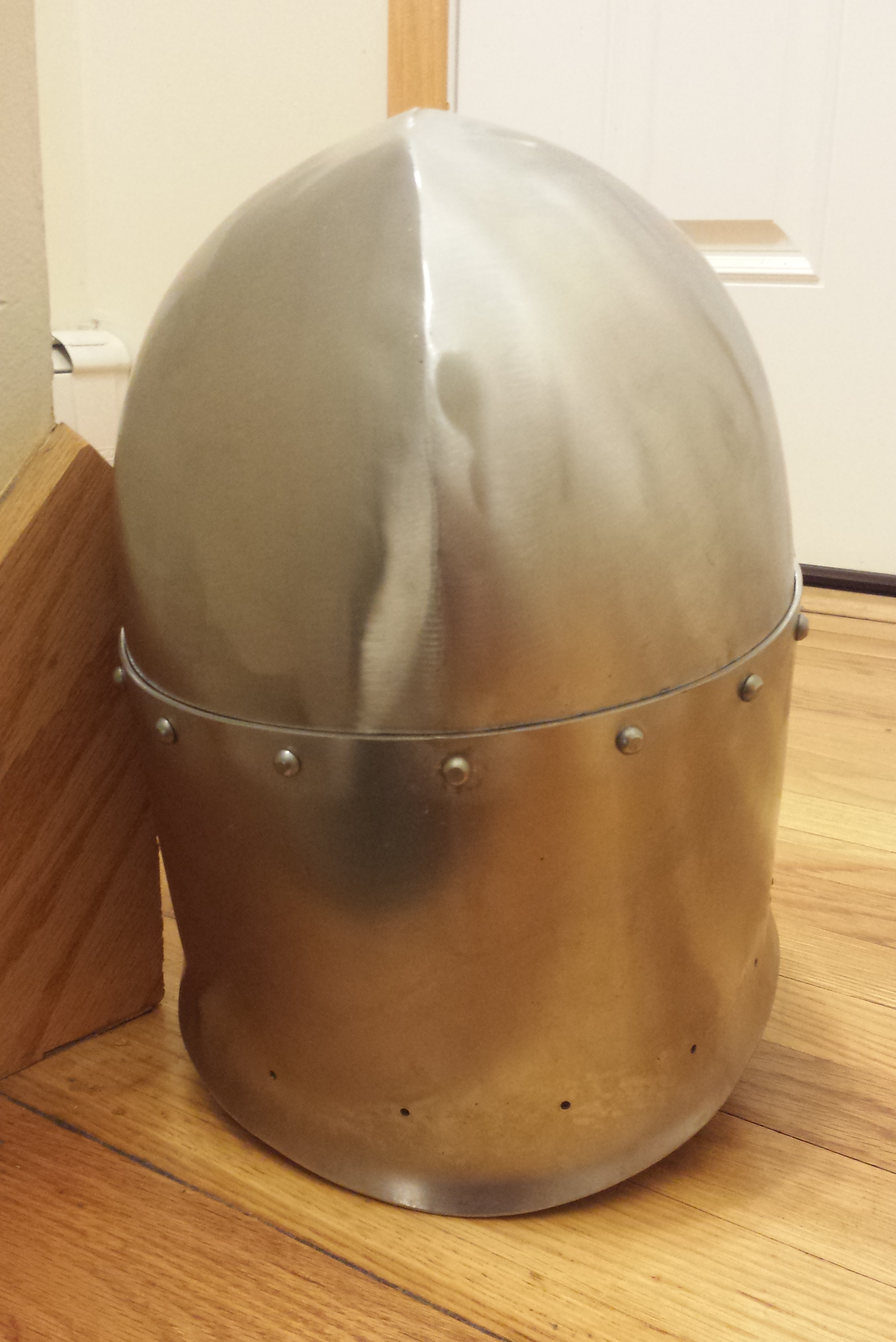

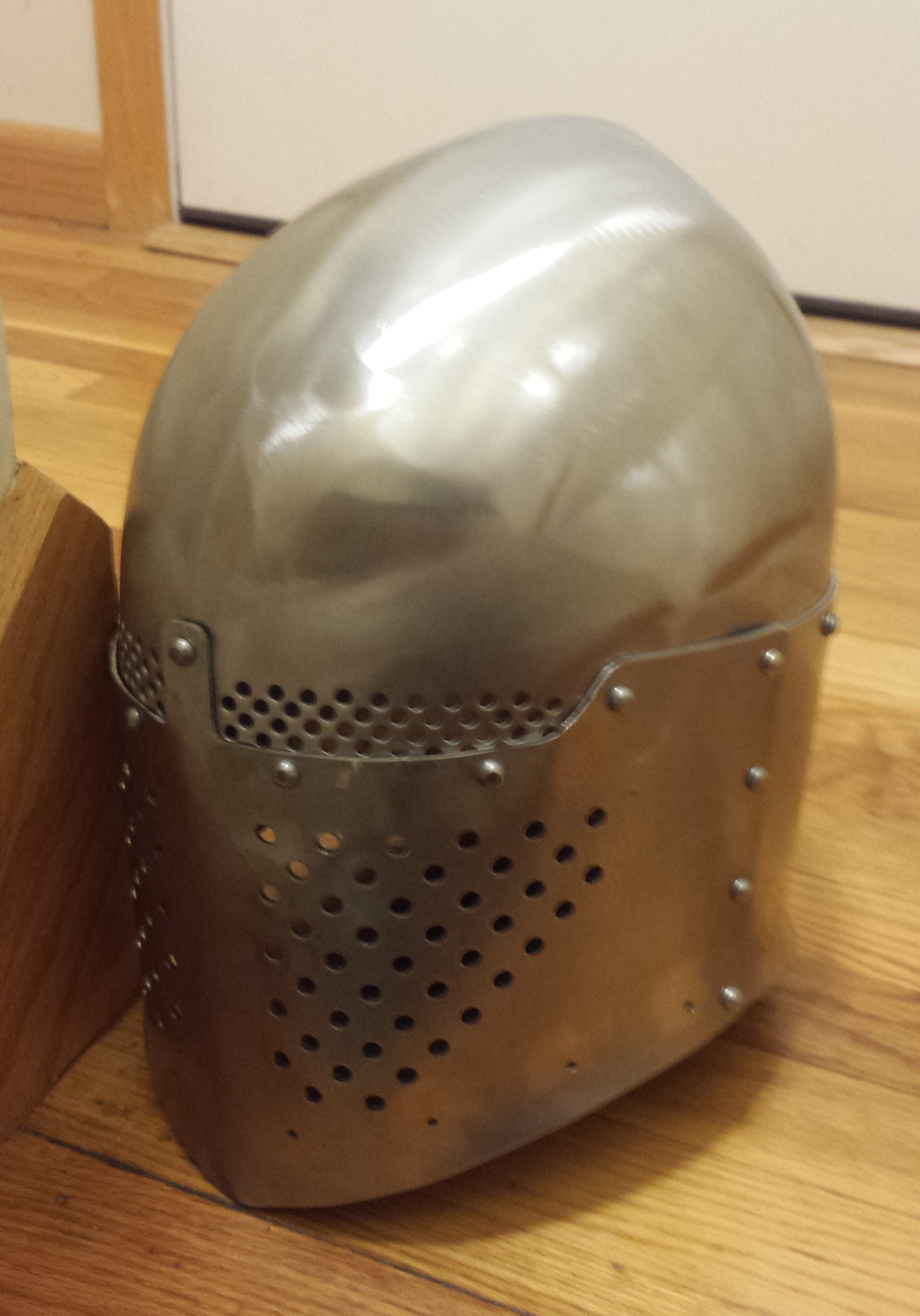

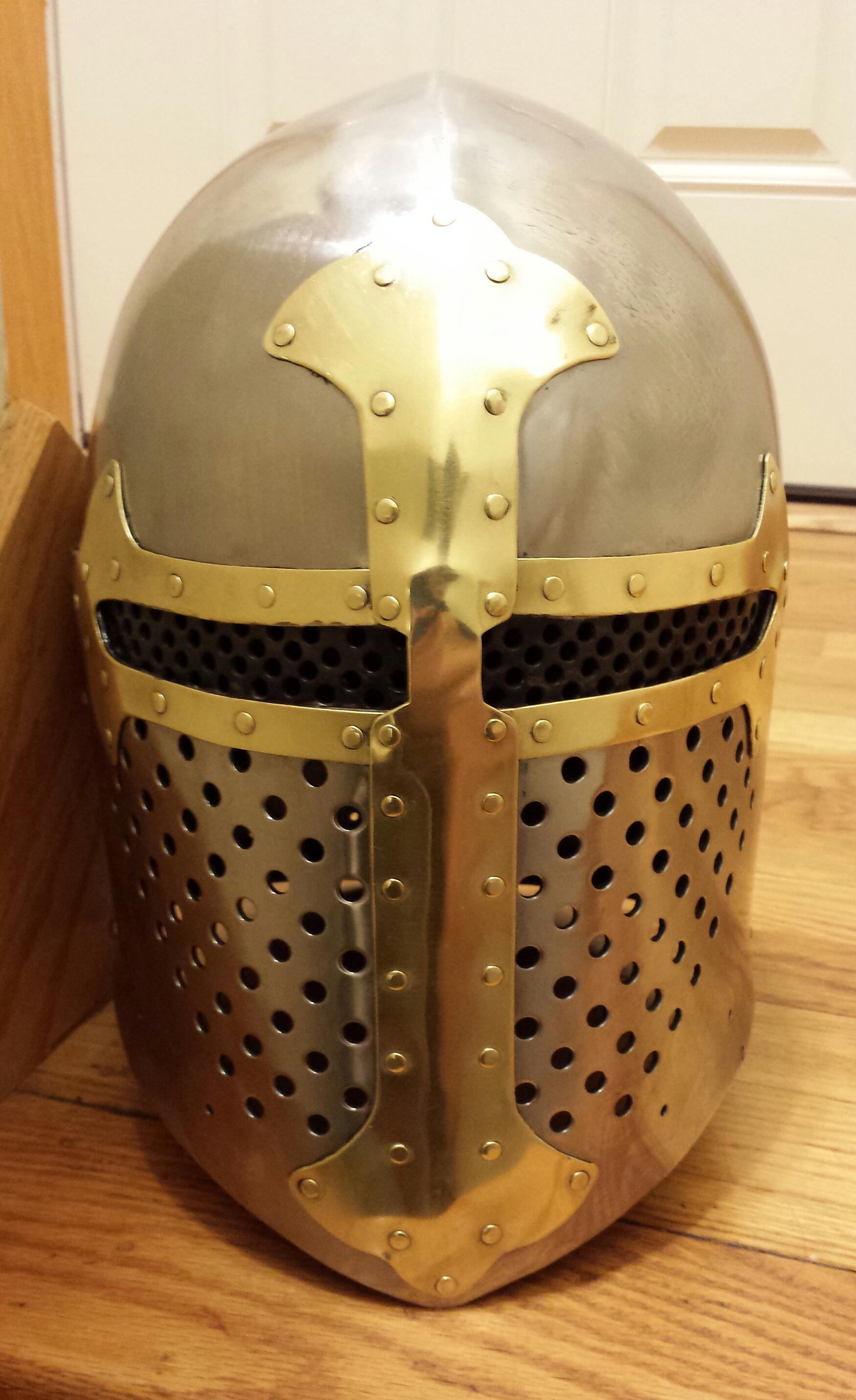

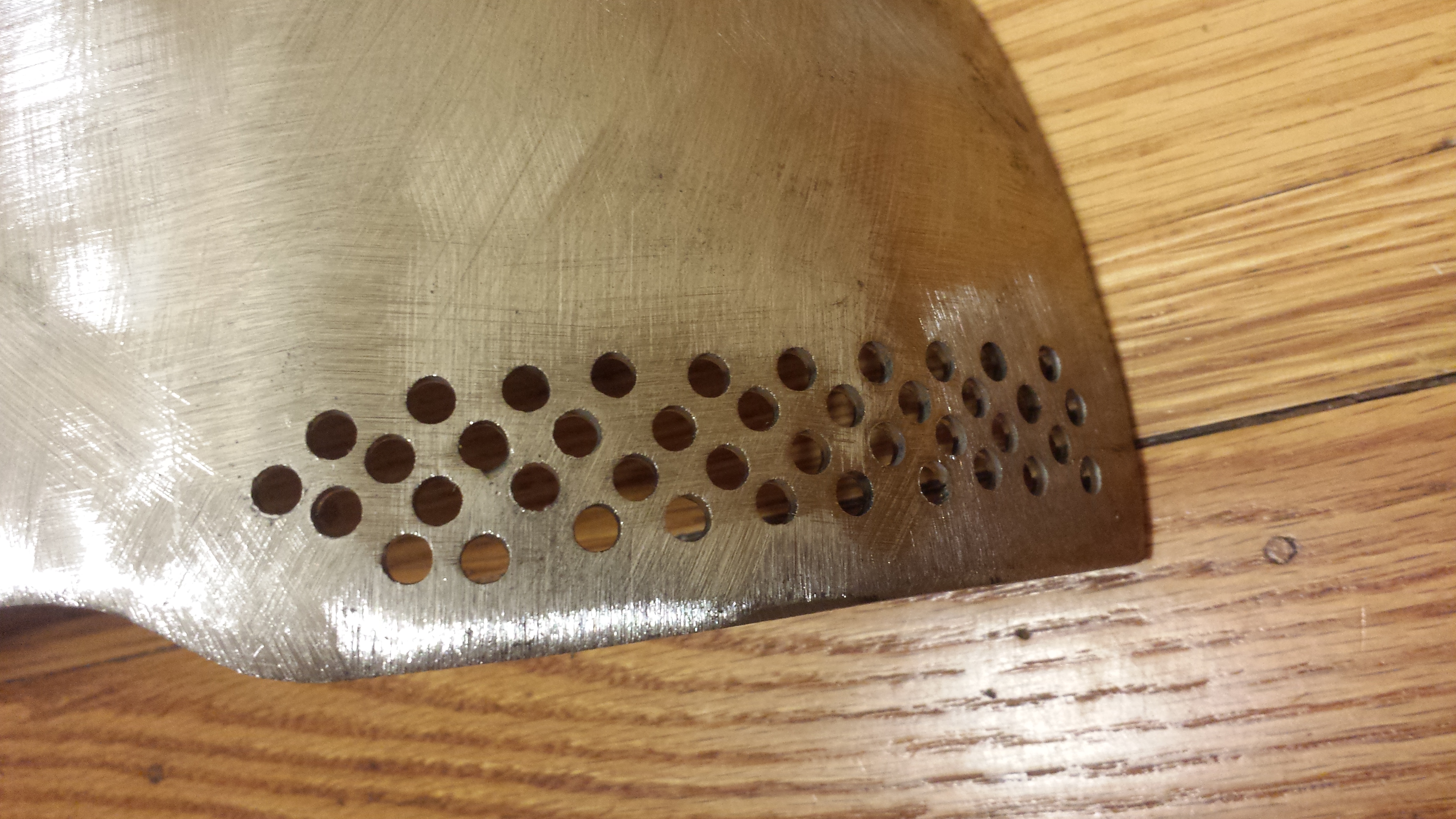

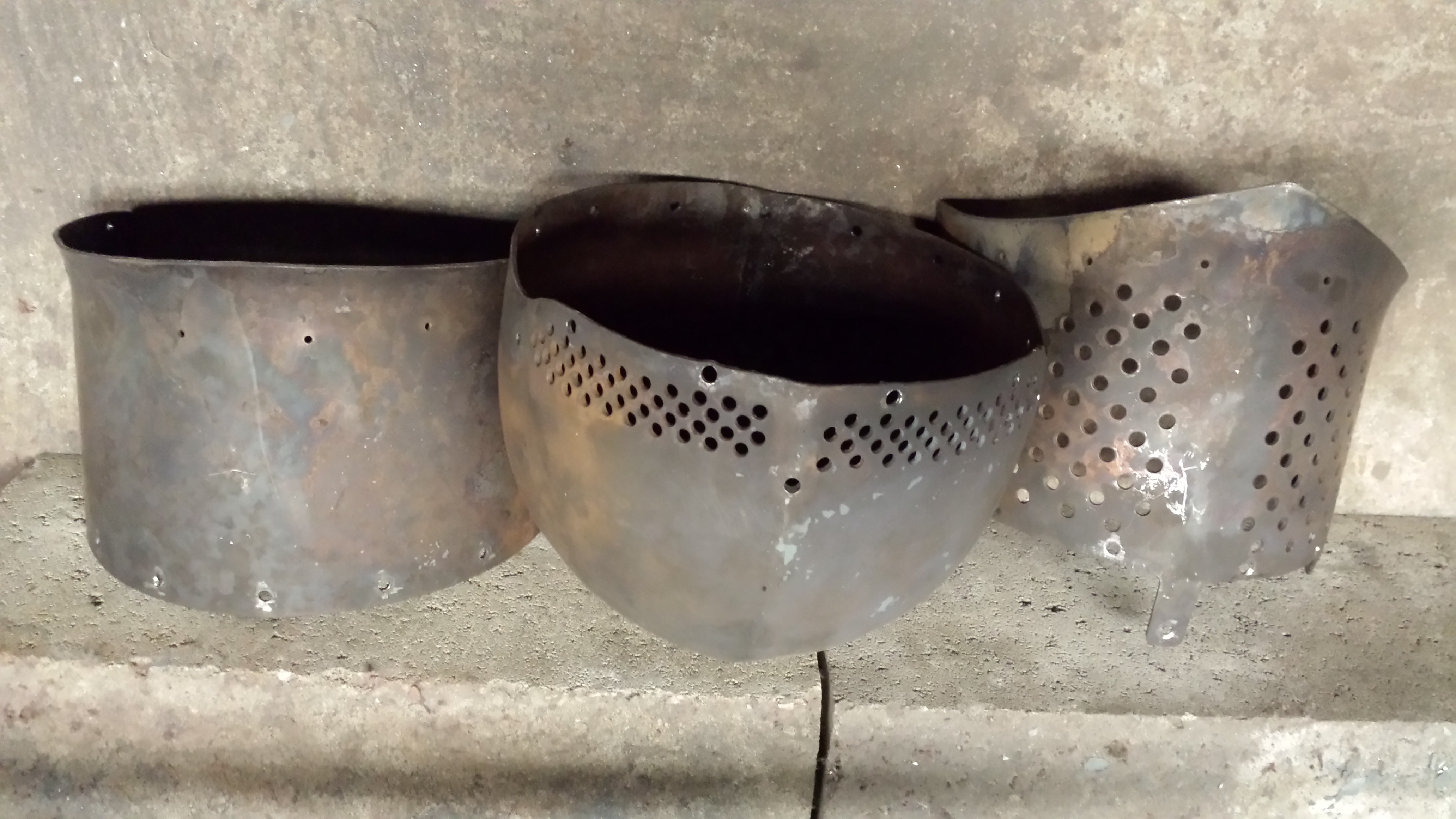

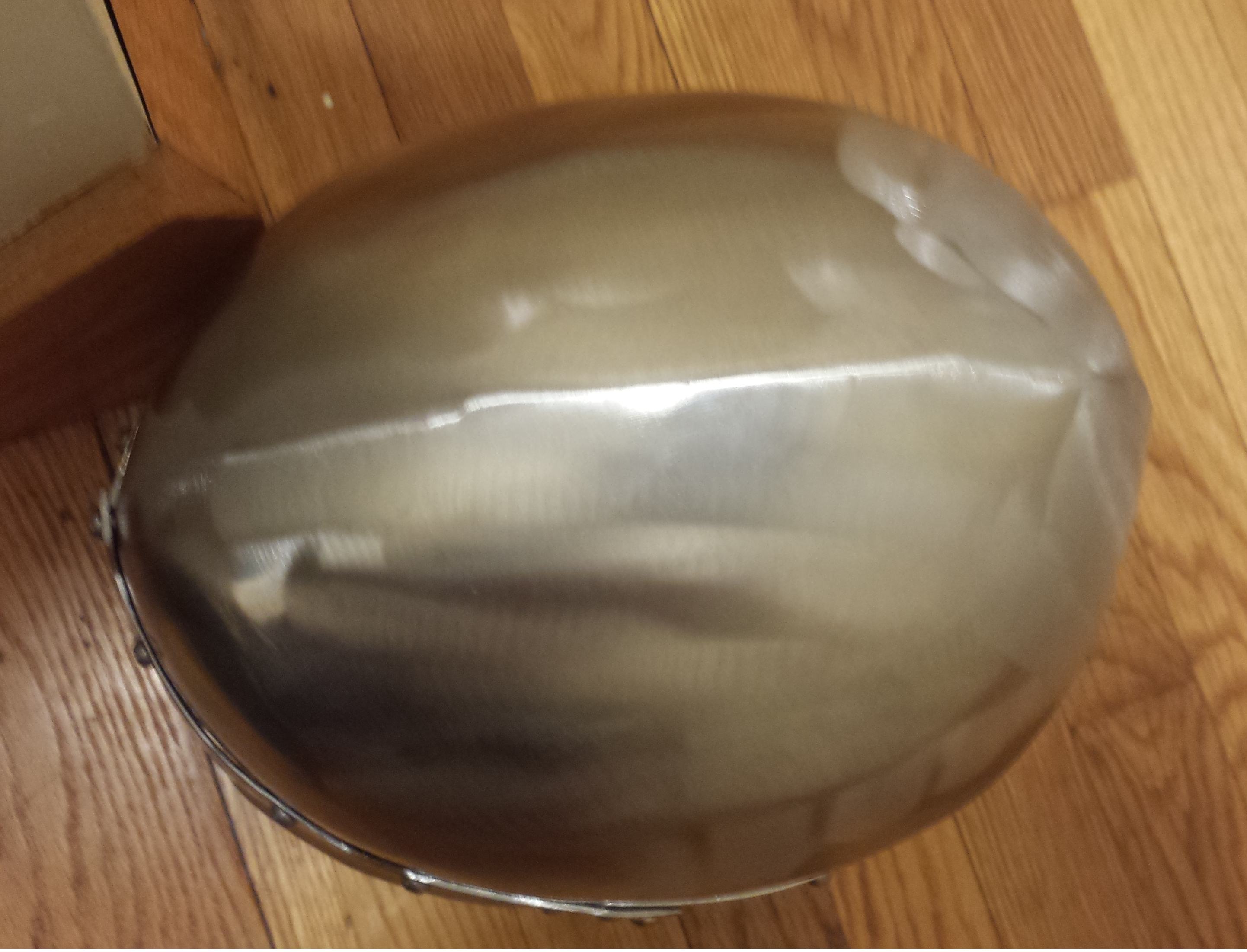

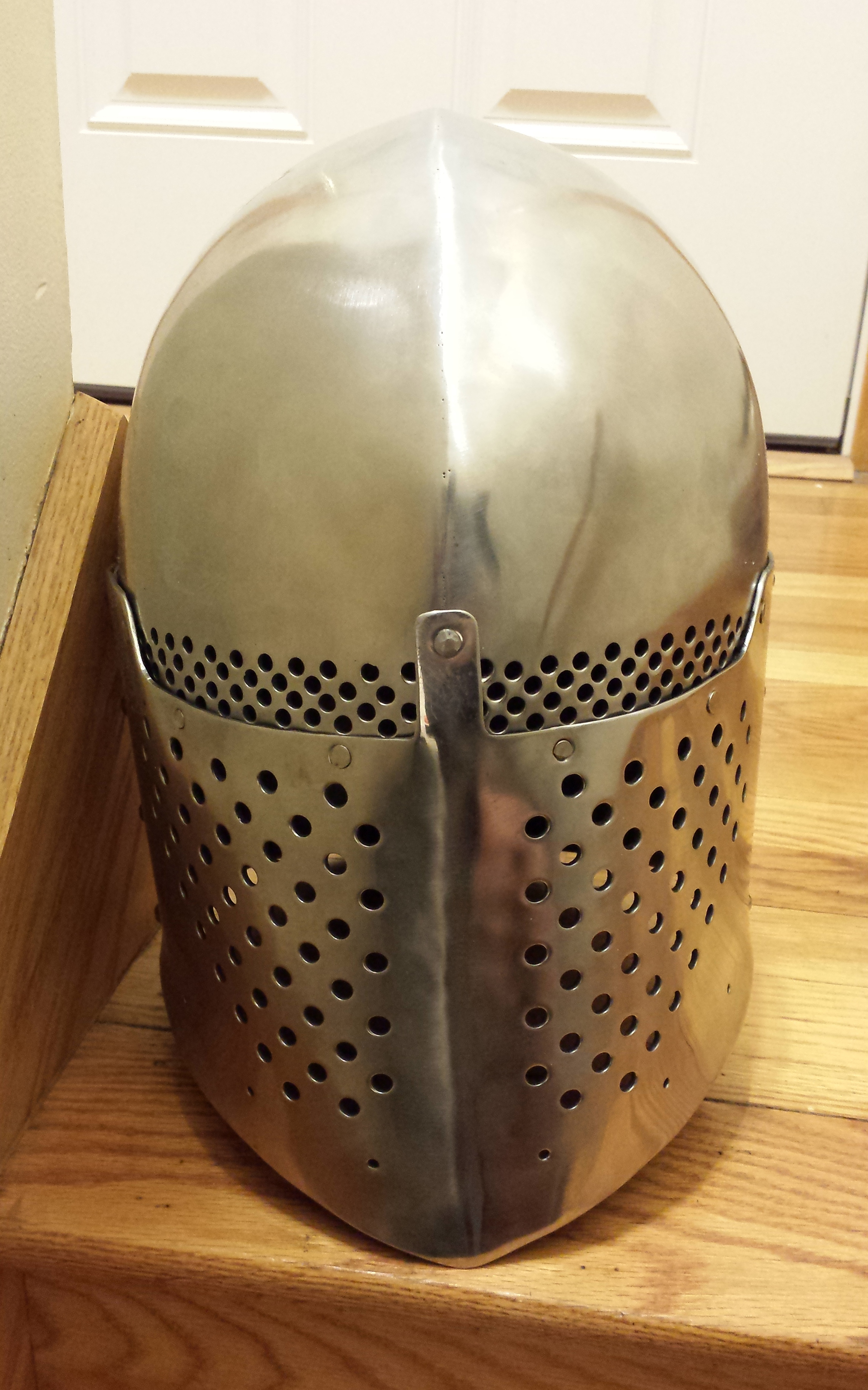

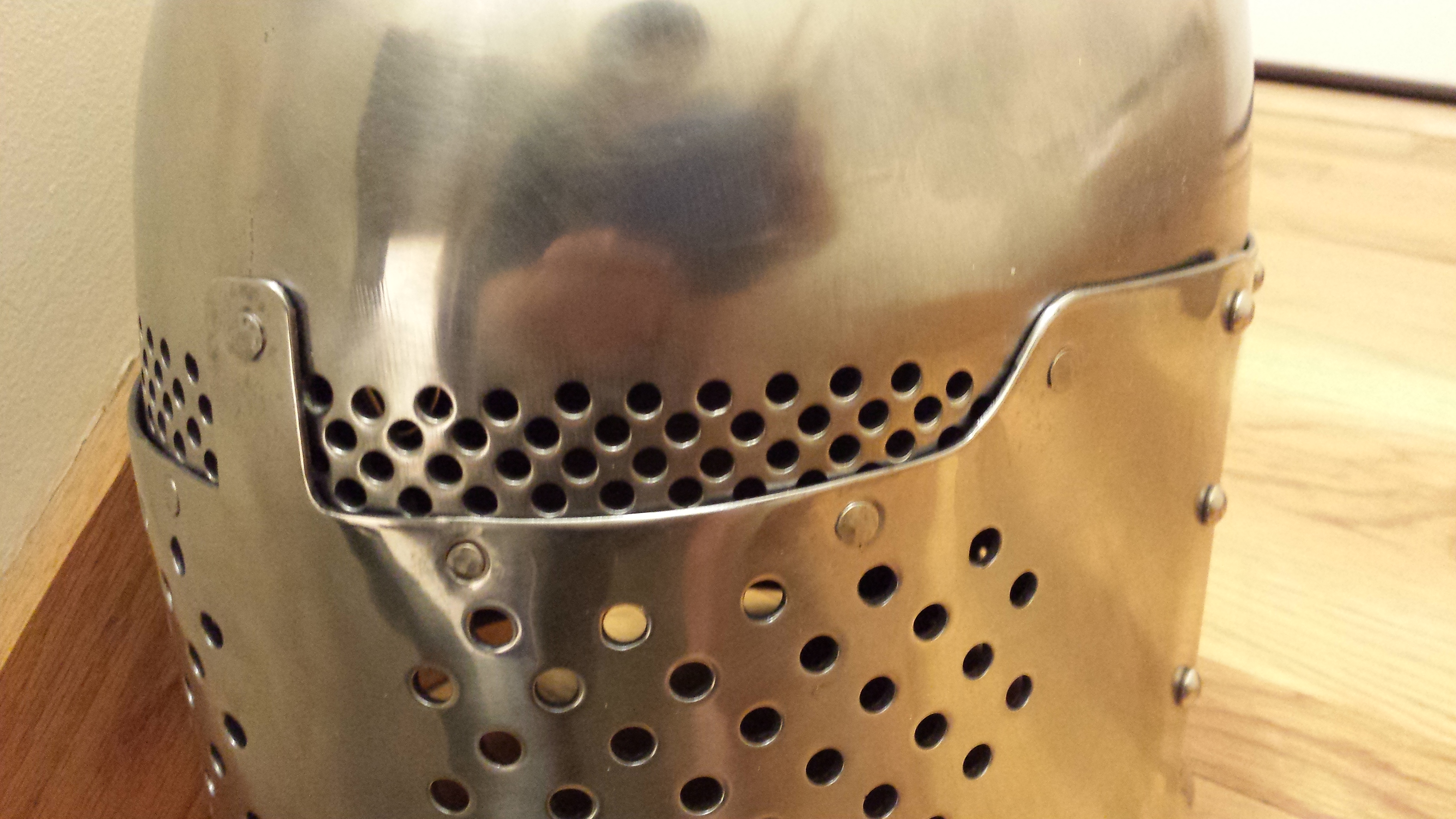

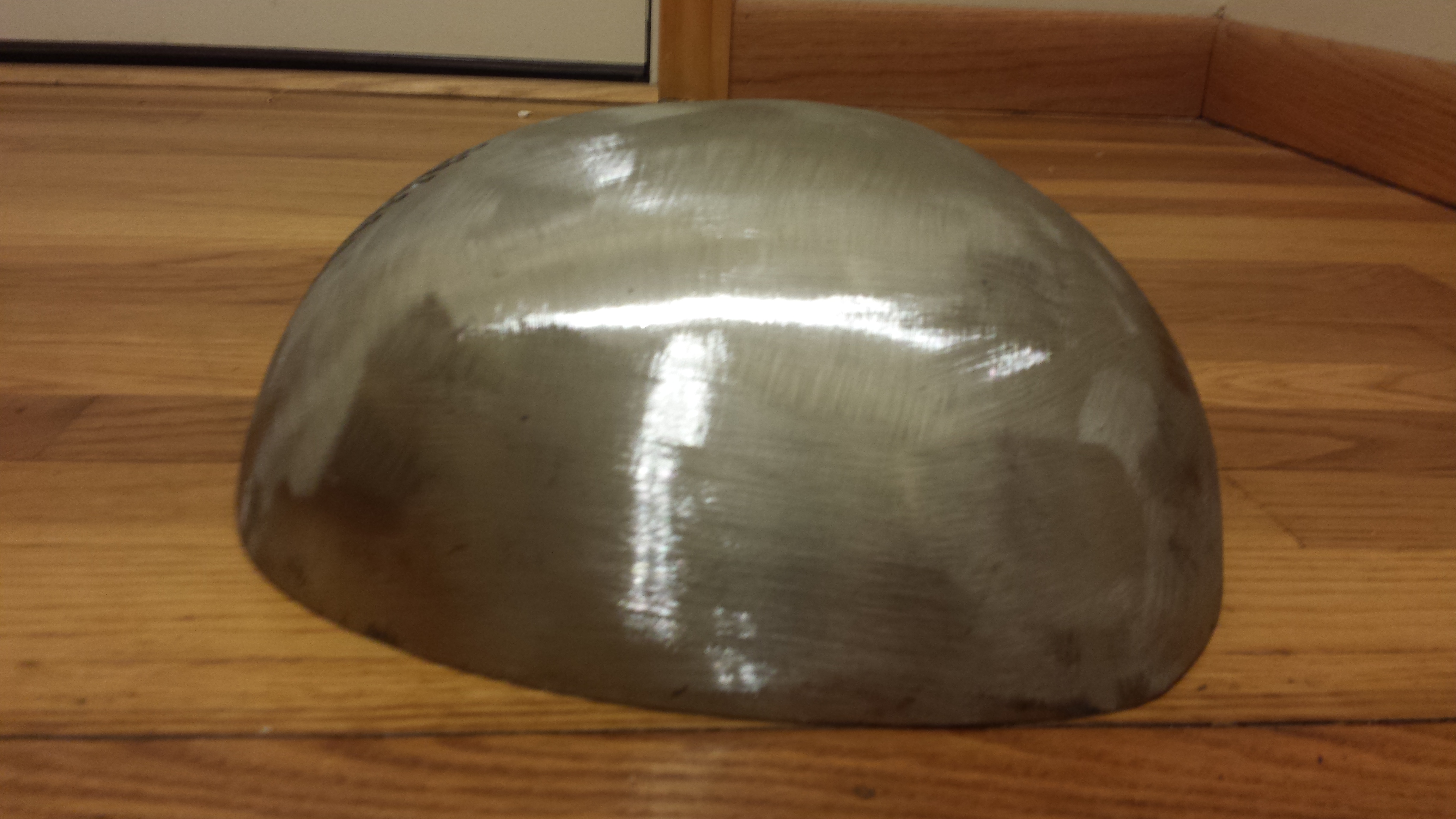

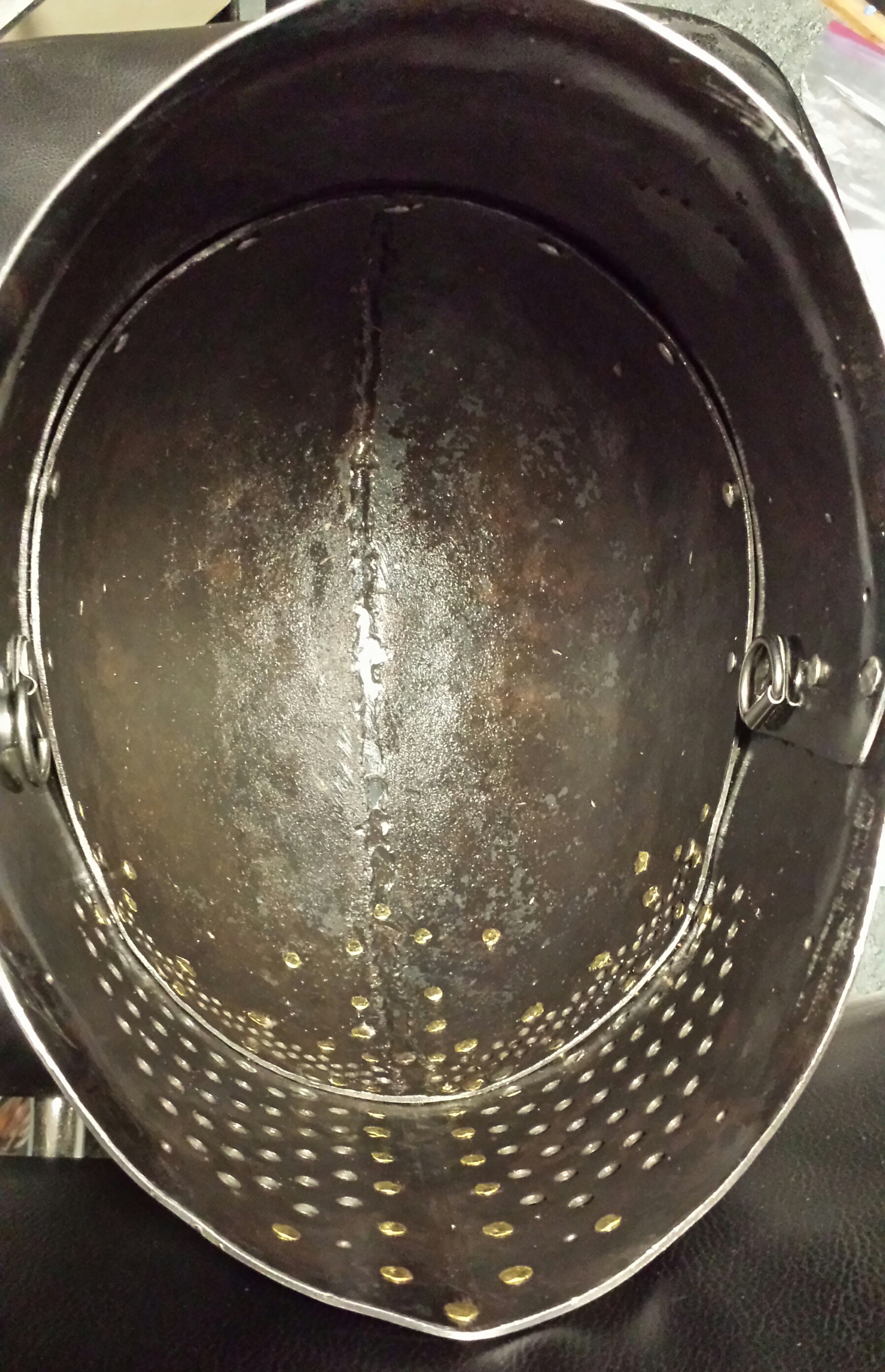

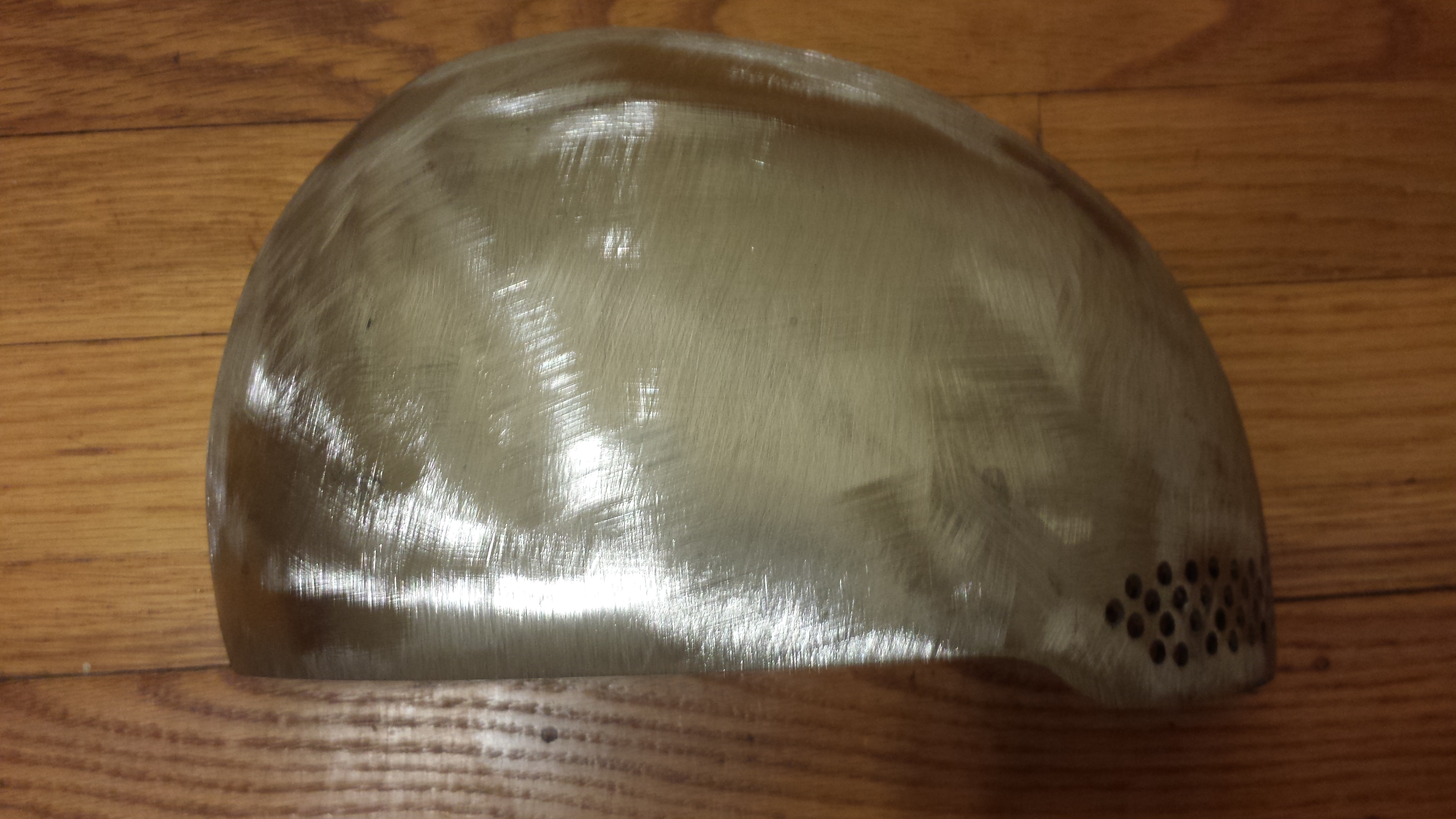

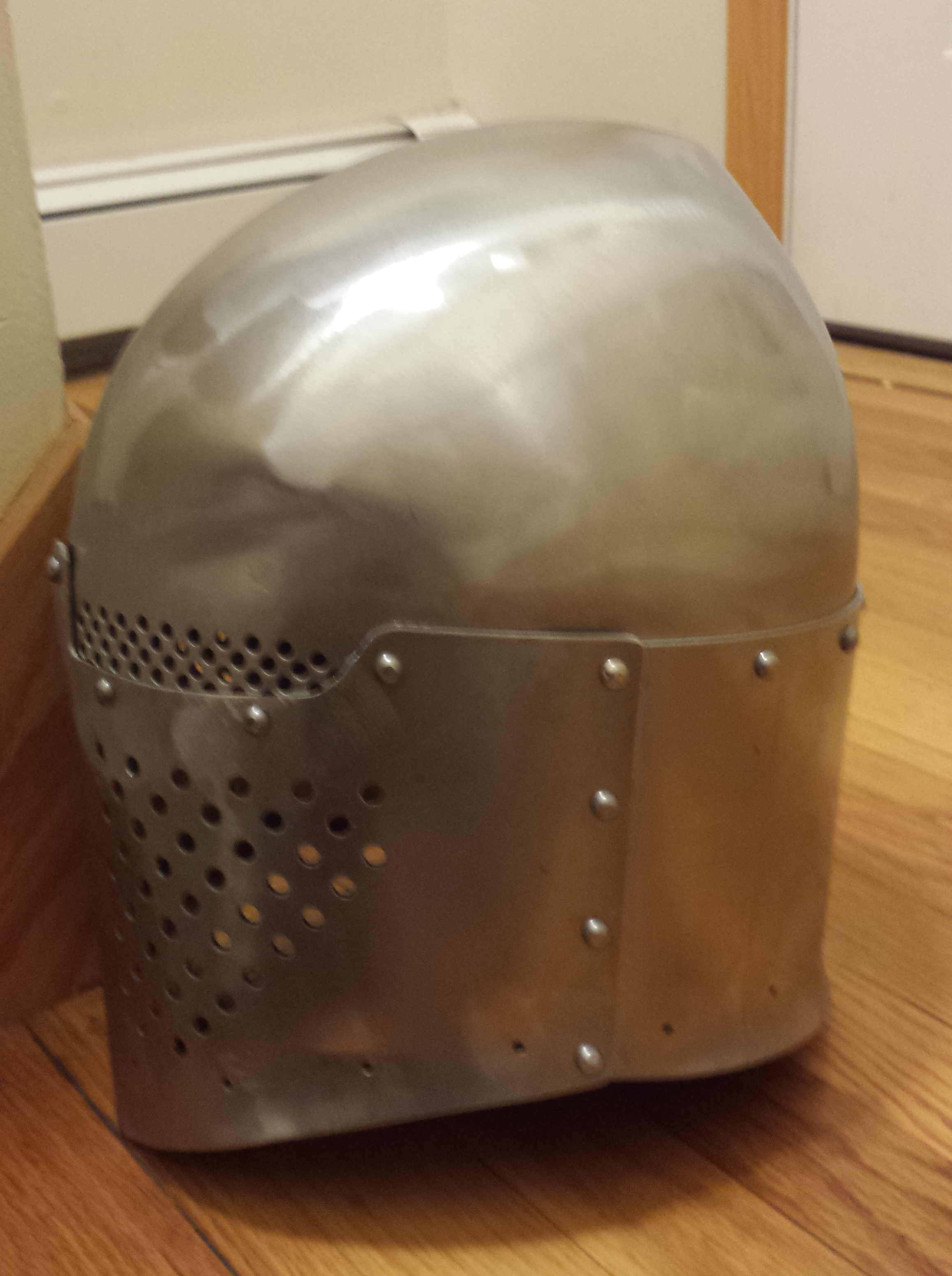

Construction Photos
