Mid 14th Century Knee Cops
Finished December November 30, 2019
The steel cops are made from 0.050"/18ag/1.3mm 4130 alloy steel with 4mm leather trim. They were heat treated to a HRC48 hardness.
Patterns

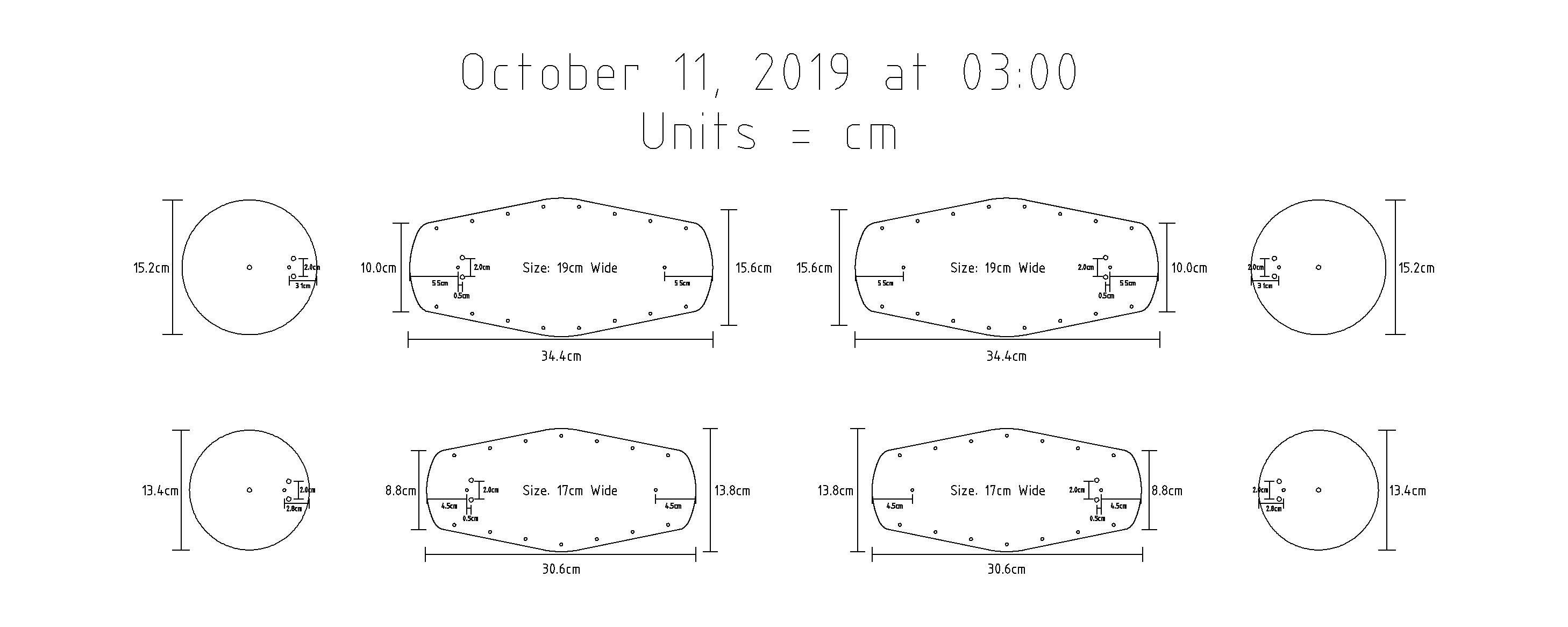

CAD DXF file of the pattern can be used to machine cut the metal plates.
knee_cops.dxf

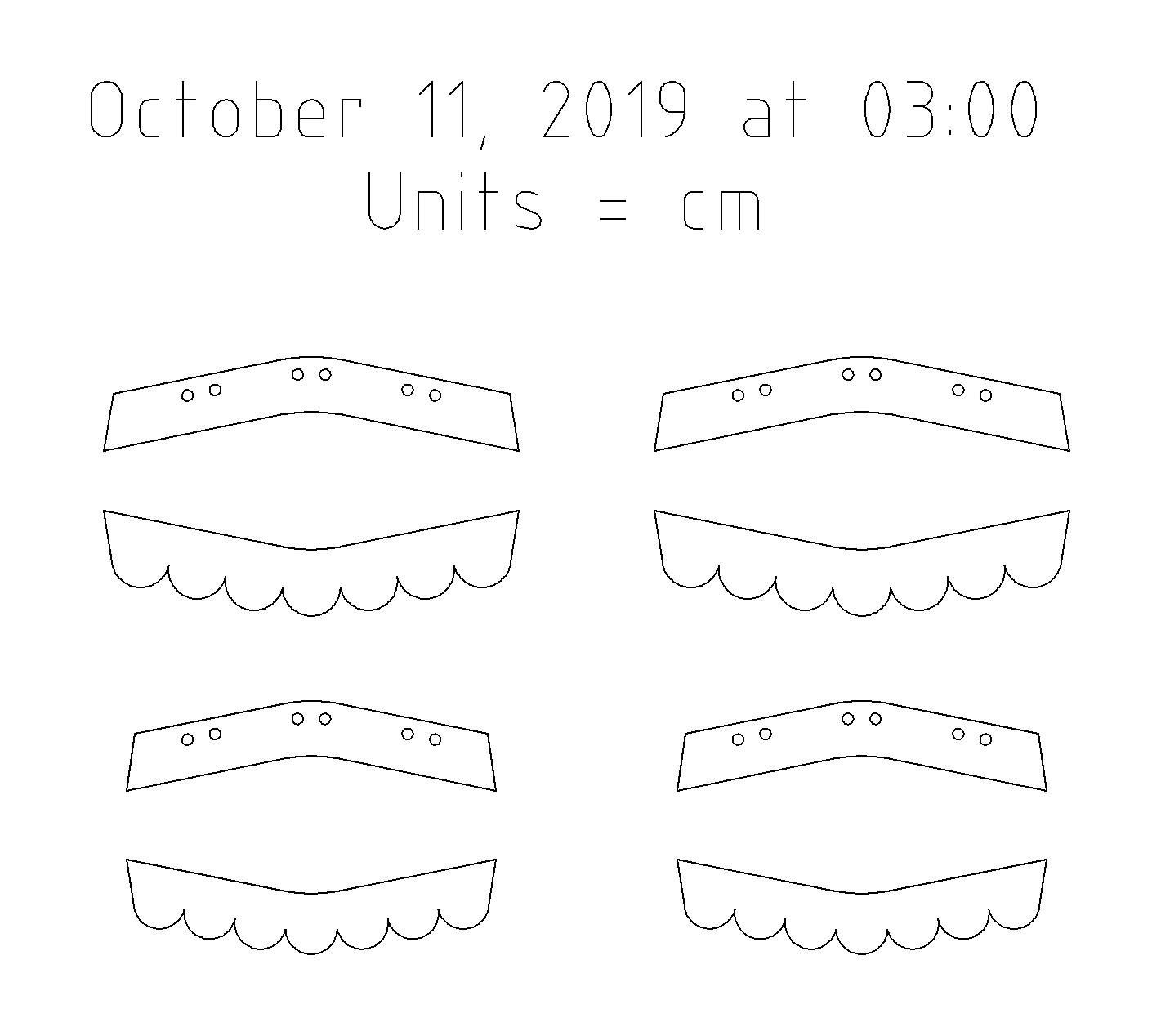

knee_cops_leather_trim.dxf
